TRANSMISSION (E/NO. W2M 001-)
W1 1967 USA CANADA

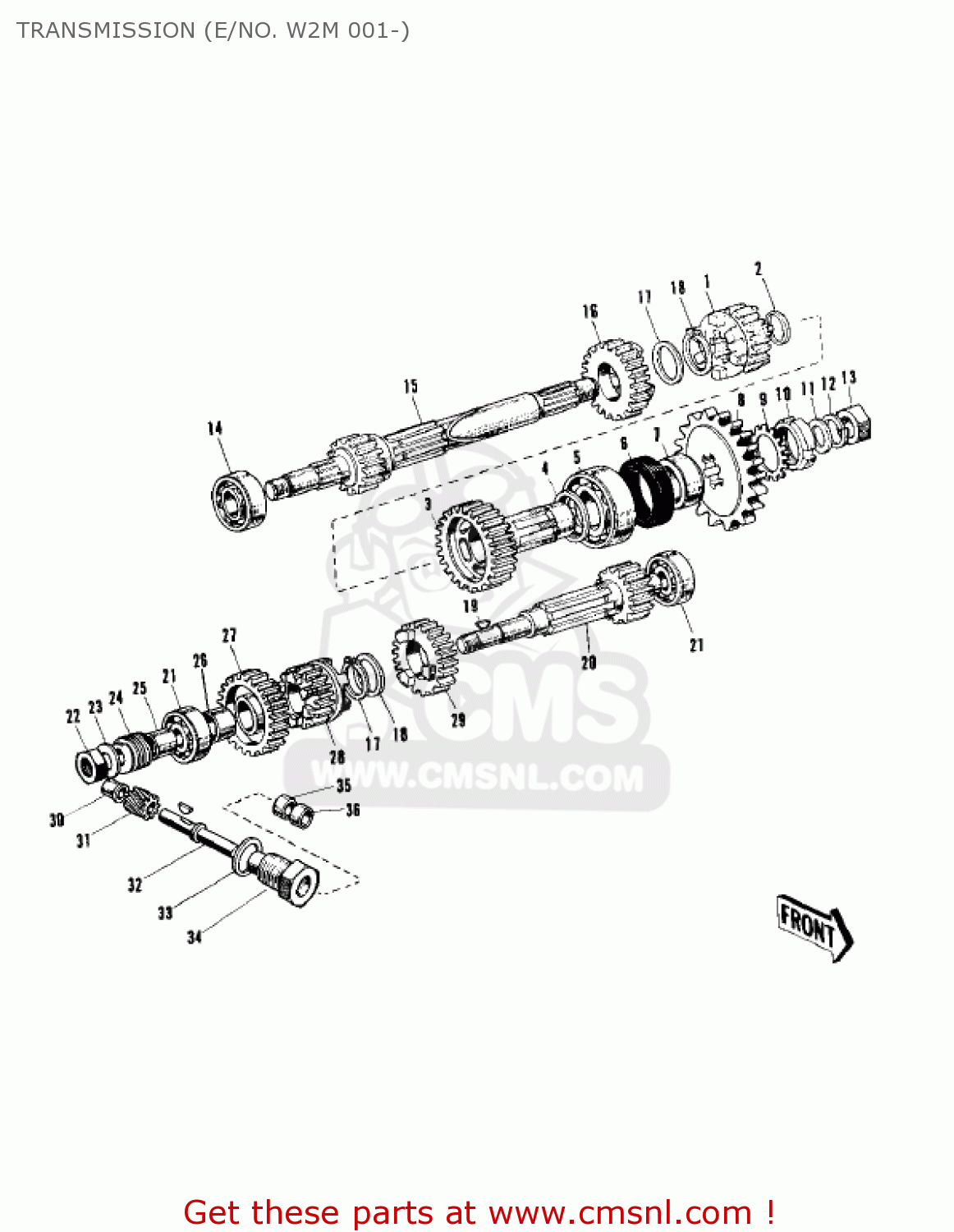

Transmission (e/no. w2m 001-) diagram W1 1967 USA CANADA
TRANSMISSION (E/NO. W2M 001-) W1 1967 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
13130012
ref: 1
GEAR,DRIVESHAFT,2ND
€ 222.00
2
92026041
ref: 2
TOP GEAR THRUST WASHER
€ 9.50
3
13136018
ref: 3
TOP GEAR DRIVESHAFT
€ 324.50
4
92026039
ref: 4
TOP GEAR SPACER
€ 9.50
5
92045006
ref: 5
BALL BEARING,#6206N
€ 26.50
6
92050018
ref: 6
OIL SEAL SC405465
€ 17.00
7
92027042
ref: 7
ENGINE SPROCKET SPACER
€ 18.50
8
13144021
ref: 8
S.T.D.
ENGINE SPROCKET,19T
€ 30.50
8
13144024
ref: 8
W1 OPTION
ENGINE SPROCKET,18T
€ 31.50
8
13144024
ref: 8
S.T.D.
ENGINE SPROCKET,18T
€ 31.50
8
13144030
ref: 8
W1SS, W2SS
SPROCKET-OUTPUT,15T
€ 29.50
8
13144021
ref: 8
W1SS, W2SS
ENGINE SPROCKET,19T
€ 30.50
9
92032001
ref: 9
LOCK WASHER,30MM
€ 4.50
10
92015011
ref: 10
NUT,30MM
€ 9.00
11
92026040
ref: 11
MAIN SHAFT THRUST WASHER
€ 20.00
12
461E1600
ref: 12
WASHER SPRING 16MM
€ 1.00
13
92015029
ref: 13
NUT,16MM
€ 9.50
14
601A6204
ref: 14
BEARING-BALL,#6204
€ 11.00
15
13127015
ref: 15
DRIVESHAFT
€ 352.50
16
13132010
ref: 16
GEAR,DRIVESHAFT,3RD
€ 0.00
17
92022103
ref: 17
WASHER,28MM
€ 1.50
18
480J2800
ref: 18
CIRCLIP-TYPE-C,28MM
€ 3.50
19
92038006
ref: 19
SPEED GEAR WOODRUFF KEY
€ 3.00
20
13128016
ref: 20
OUTPUT SHAFT
€ 225.00
21
601B6302
ref: 21
BEARING-BALL,#6302C3
€ 16.00
22
315B1400
ref: 22
NUT,14MM
€ 1.00
23
461F1400
ref: 23
WASHER-SPRING,14MM
€ 0.50
24
13224002
ref: 24
SPEEDOMETER PINION
€ 0.00
25
92027043
ref: 25
SPEED PINION SPACER
€ 8.00
26
92026017
ref: 26
MAIN SHAFT THRUST WASHER
€ 9.50
27
13129020
ref: 27
LOW GEAR,OUTPUT SHAFT
€ 185.50
28
13133010
ref: 28
3RD GEAR-OUTPUT SHAFT
€ 60.50
29
13131014
ref: 29
2ND GEAR,OUTPUT SHAF
€ 57.50
30
92028084
ref: 30
SPEED GEAR SHAFT BUSHING
€ 18.50
31
13225001
ref: 31
SPEEDOMETER GEAR
€ 69.50
32
13226001
ref: 32
SPEED GEAR SHAFT
€ 33.50
33
92065032
ref: 33
SPEEDOMETER GEAR HOUSING GASKET
€ 1.50
34
13227001
ref: 34
HOUSING,SPEED GEAR
€ 33.00
35
92053005
ref: 35
OIL SEAL,VB8178
€ 8.00
36
92027044
ref: 36
SPEED GEAR SHIFT SPACER
€ 4.50
