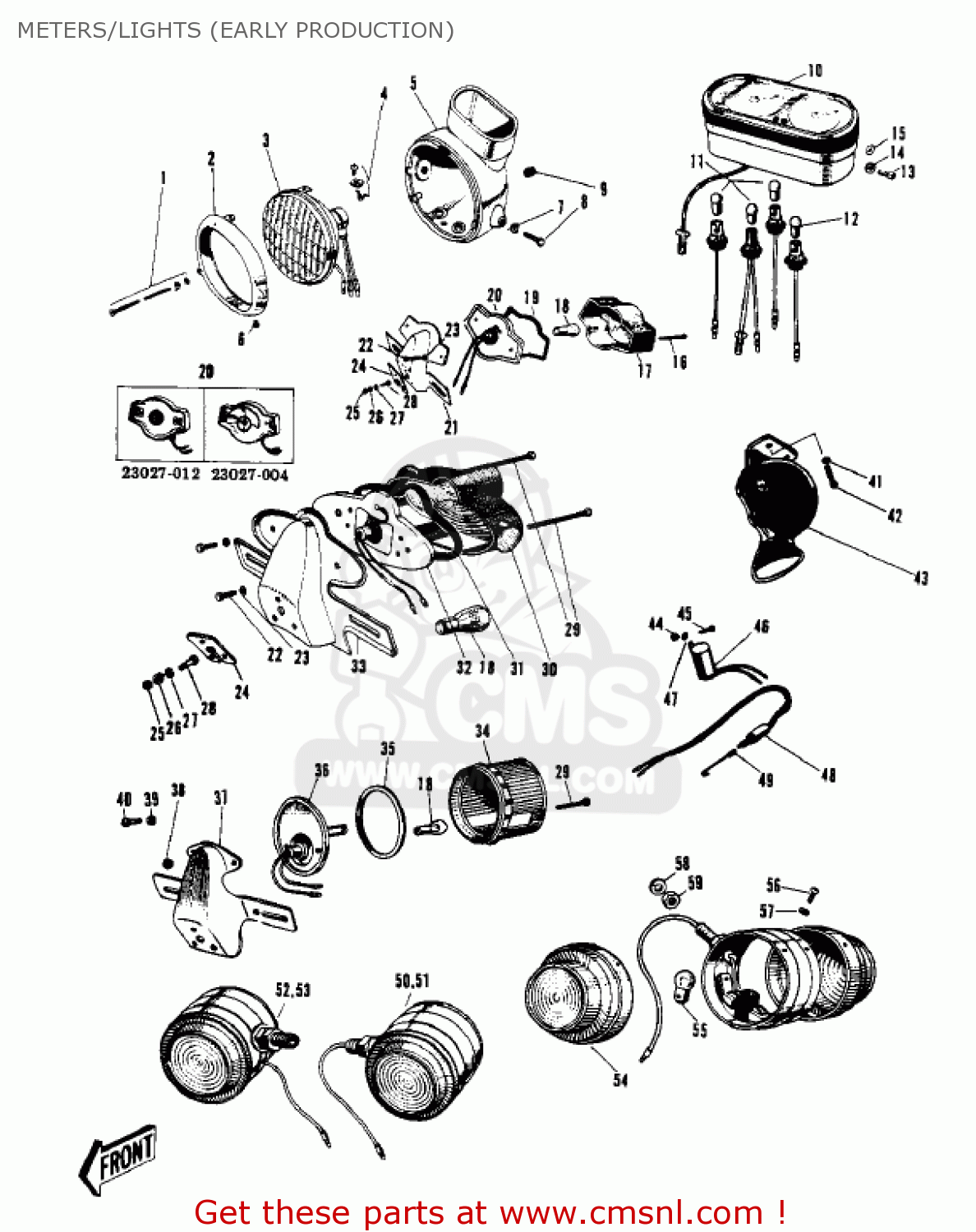

METERS/LIGHTS (EARLY PRODUCTION)

ref

part #

description

quantity

?

2300102110
ref: ?
Includes items 1 - 6

HEADLAMP ASSEMBLY,BLACK

€ 216.50

?

2300102124
ref: ?
Includes items 1 - 6

HEADLAMP ASSEMBLY,CANDYTONE RED

€ 194.00

?

230012127
ref: ?
Includes items 1 - 6

UNAVAILABLE IN PRICE BOOK

€ 0.00

1

23013002
ref: 1

FOCUS ADJUSTING SET SCREW

€ 6.50

2

23006017
ref: 2

RIM-HEAD LAMP

€ 27.00

3

23007025
ref: 3

SEALED BEAM UNIT

€ 88.50

4

23015002
ref: 4

LAMP-ASSY, LICENSE

€ 1.00

5

2300501710
ref: 5
BLACK

HEADLAMP BODY,BLACK

€ 100.50

5

2300501724
ref: 5
CANDYTONE RED

BODY-HEAD LAMP,C.RED

€ 47.50

5

2300501727
ref: 5
CANDYTONE BLUE

BODY-HEAD LAMP,C.BLUE

€ 47.50

6

222E0508
ref: 6

SCREW-OVL CNTSNK,5X8

€ 2.00

7

461F1000
ref: 7

WASHER-SPRING,10MM

€ 0.50

8

92007045
ref: 8

BOLT, HEX HEAD, 10X25

€ 6.00

9

850A1301
ref: 9

GROMMET,13MM

€ 1.00

?

25003005
ref: ?
Includes items 10 -

SPEEDOMETER ASSEMBLY,MPH

€ 398.50

?

25003003
ref: ?
Includes items 10 -

SPEEDOMETER ASSY KPH

€ 96.00

11

92069018
ref: 11

BULB 12V 3W

€ 4.00

12

92069017
ref: 12

BULB 12V 1.5W

€ 4.00

13

220E0508
ref: 13

SCREW-PAN HEAD,5X8

€ 2.00

14

461F0500
ref: 14

WASHER-SPRING,5MM

€ 0.50

15

410B0500
ref: 15

WASHER-PLAIN-SMALL,5M

€ 0.50

?

23025019
ref: ?
Includes items 16 -

TAIL LAMP ASSEMBLY

€ 89.00

16

222E0360
ref: 16

SCREW-OVL CNTSNK,3X60

€ 3.00

17

23026017
ref: 17

LENS,TAIL LAMP

€ 54.00

18

92069059
ref: 18

BULB,12V 32/3CP

€ 5.50

19

23028007
ref: 19

GASKET-TAIL LAMP LENS (NAS)

€ 3.00

20

23027004
ref: 20
WHN EXH USE 23027-01

SOCKET-TAIL LAMP

€ 9.50

20

23027012
ref: 20

SOCKET-TAIL LAMP

€ 7.00

21

23036003
ref: 21

BKT-LICENSE PLT

€ 16.00

22

110N0510
ref: 22

BOLT-HEX HEAD,5X10

€ 0.50

23

461F0500
ref: 23

WASHER-SPRING,5MM

€ 0.50

24

35039001
ref: 24
WHN EXH USE 35039-00

TAIL LAMP SHOCK DAMPER

€ 8.00

24

35039005
ref: 24

DAMPER,TAIL LAMP

€ 6.50

25

312B0600
ref: 25

NUT,6MM

€ 0.50

26

311B0600
ref: 26

NUT,6MM

€ 0.50

27

461F0600
ref: 27

WASHER-SPRING,6MM

€ 0.50

28

112G0618
ref: 28

BOLT-UPSET

€ 0.50

28

112G0625
ref: 28
FOR 35039-001

BOLT-UPSET,6X25

€ 4.00

28

110R0635
ref: 28
FOR 35039-003

BOLT 6X35

€ 3.50

?

23025027
ref: ?
Includes items 18 an

LAMP ASSY, TAIL

€ 43.50

29

220E0450
ref: 29

SCREW-PAN HEAD,4X50

€ 3.00

30

23026010
ref: 30

LENS,TAIL LAMP

€ 64.50

31

23028008
ref: 31

GASKET-TAIL LAMP (NAS)

€ 4.00

32

23027009
ref: 32

SOCKET-TAIL LAMP

€ 18.00

33

23036002
ref: 33

BKT-LICENSE PLT

€ 25.50

?

23025023
ref: ?
Includes items 18 an

TAIL LAMP ASSEMBLY

€ 159.50

34

23026012
ref: 34

TAIL LAMP LENS

€ 3.00

35

23028010
ref: 35

TAIL LAMP GASKET

€ 4.50

36

23027013
ref: 36

TAIL LAMP SOCKET

€ 35.00

37

23036004
ref: 37

LICENSE PLATE BRACKET

€ 67.50

38

92073006
ref: 38

CAP,RUBBER

€ 0.00

39

461F0600
ref: 39

WASHER-SPRING,6MM

€ 0.50

40

220E0612
ref: 40

SCREW-PAN HEAD,6X12

€ 3.00

41

461F0800
ref: 41

WASHER-SPRING,8MM

€ 0.50

42

115G0816
ref: 42

BOLT-HEX,HEAD 8X16

€ 0.50

43

27003011
ref: 43

HORN

€ 74.50

44

310B0600
ref: 44

NUT,6MM

€ 0.50

45

115G0816
ref: 45

BOLT-HEX,HEAD 8X16

€ 0.50

46

27002004
ref: 46
WHN EXH USE 27002-00

RELAY-TURN SIGNAL

€ 16.50

46

27002008
ref: 46

RELAY-TURN SIGNAL

€ 17.00

47

410B0600
ref: 47

WASHER-PLAIN-SMALL,6M

€ 0.50

48

27010006
ref: 48

SWITCH,BRAKE LAMP

€ 28.50

49

27011009
ref: 49

SPRING-BRAKE LAMP SW

€ 4.50

50

23040013
ref: 50

LAMP-FRNT TURN SIG RH

€ 11.50

51

23042012
ref: 51

LAMP-FRNT TURN SIG LH

€ 13.00

52

23043011
ref: 52

LAMP-TURN SIGNAL,R.H

€ 10.00

53

23044009
ref: 53

LAMP-REAR TURN SIG LH

€ 10.00

54

23048004
ref: 54

LENS-TURN SIGNAL LAMP

€ 4.50

55

92069019
ref: 55

BULB 12V 8W

€ 2.50

56

220E0308
ref: 56

SCREW-PAN-CROS,3X8

€ 2.00

57

461F0300
ref: 57

WASHER-SPRING,3MM

€ 0.50

58

461F1000
ref: 58

WASHER-SPRING,10MM

€ 0.50

59

315B1000
ref: 59

NUT,10MM

€ 0.50
