CRANKCASE ('76-'80)
MT1C 1975

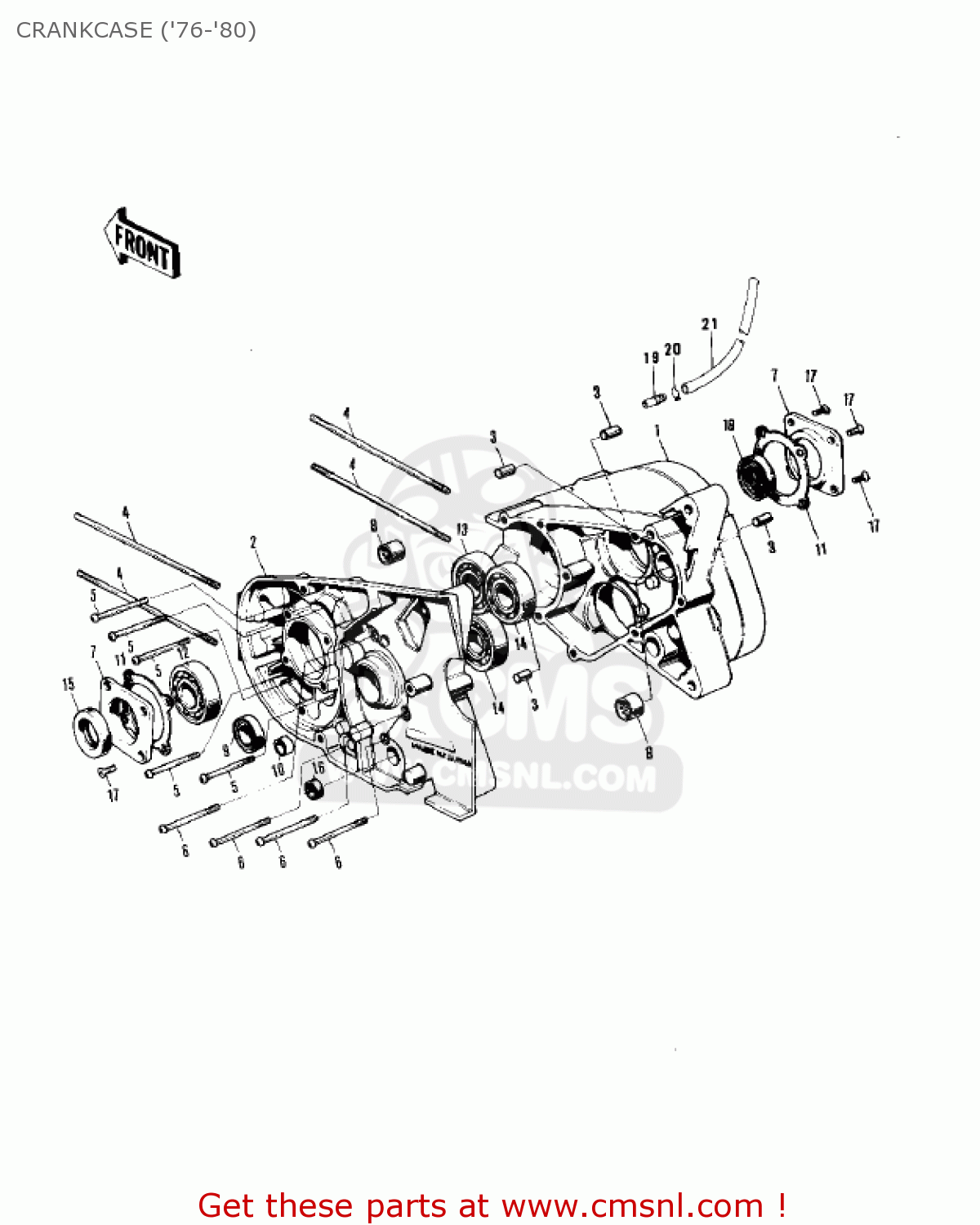

Crankcase ('76-'80) diagram MT1C 1975
CRANKCASE ('76-'80) MT1C 1975
×
prices are in EUR
ref
part #
description
quantity
?
14001068
ref: ?
Includes items 1 - 3
CRANKCASE SET
€ 249.50
3
551A0816
ref: 3
PIN-DOWEL,8X16
€ 0.50
4
92004033
ref: 4
STUD,6X120
€ 7.00
5
220B0635
ref: 5
SCREW-PAN HEAD,6X35
€ 1.00
6
220B0660
ref: 6
SCREW-PAN HEAD,6X60
€ 2.50
7
14020009
ref: 7
RETAINER-OIL SEAL
€ 4.50
8
92046024
ref: 8
BEARING,#TLA1210
€ 9.50
9
920491048
ref: 9
OIL SEAL,SC22325
€ 6.00
9
920491048
ref: 9
KV75-A9
OIL SEAL,SC22325
€ 6.00
10
92053001
ref: 10
OIL SEAL VB14246
€ 7.00
11
14023002
ref: 11
GASKET-OIL SEAL RETNR (MCA)
€ 2.00
12
601B6204
ref: 12
BEARING-BALL,#6204C3
€ 8.00
13
601B6303
ref: 13
BEARING-BALL,#6303C3
€ 24.00
14
601B6203
ref: 14
BEARING-BALL,#6203C3
€ 10.50
15
653B203508
ref: 15
OIL SEAL,TB20358
€ 12.00
16
92049004
ref: 16
OIL SEAL SB12205
€ 6.00
17
221B0614
ref: 17
SCREW-CNTSNK HD,6X14
€ 2.50
18
653B243508
ref: 18
OIL SEAL,TB24358
€ 12.50
19
14069006
ref: 19
BRFATHER
€ 2.00
20
92037078
ref: 20
CLAMP,OVERFLOW PIPE
€ 4.00
21
700Q04500
ref: 21
TUBE,VINYL,4X500
€ 1.00
