CARBURETOR ('76-'80)
MT1C 1975

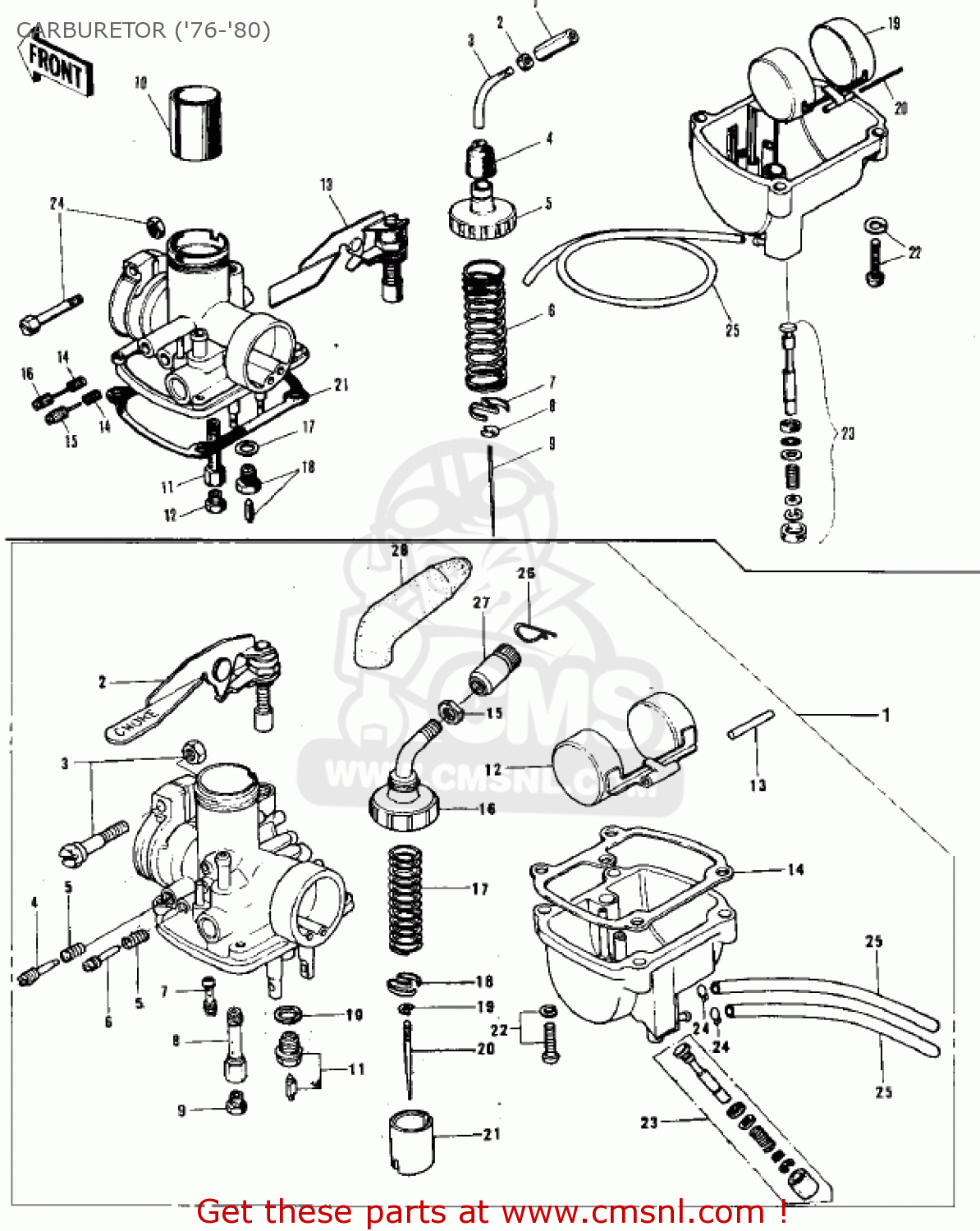

Carburetor ('76-'80) diagram MT1C 1975
CARBURETOR ('76-'80) MT1C 1975
×
prices are in EUR
ref
part #
description
quantity
1-25
16001129
ref: 1-25
VM15SC
CARBURETOR ASSY
€ 97.50
1
16002004
ref: 1
CABLE ADJUSTER
€ 8.00
2
16003004
ref: 2
NUT-CABLE ADJUST LOCK
€ 4.50
3
16077003
ref: 3
GUIDE
€ 0.00
4
16037001
ref: 4
CAP-RUBBER
€ 6.00
5
16005001
ref: 5
TOP-MIXING CHAMBER
€ 4.50
6
16006001
ref: 6
SPRING,THROTTLE VALVE
€ 7.50
7
16007001
ref: 7
SPRING SEAT,THRTL VLV
€ 6.50
8
16008010
ref: 8
CLAMP,E-TYPE
€ 5.00
9
16009042
ref: 9
3G9
JET NEEDLE 3G09
€ 20.50
10
16025038
ref: 10
C.A 2.0
VALVE-THROTTLE CA2.0
€ 67.00
11
16017051
ref: 11
E-O
NEEDLE JET E-O
€ 24.00
12
92063110
ref: 12
JET,MAIN,#70M
€ 25.00
13
16016009
ref: 13
PLUNGER-STARTER
€ 35.50
14
16022007
ref: 14
SPRING-THR STOP SCREW
€ 5.50
15
16021001
ref: 15
SCREW,THROTTLE STOP
€ 9.00
16
16014002
ref: 16
SCREW-PILOT AIR
€ 11.00
17
16029002
ref: 17
WASHER-VALVE SEAT
€ 2.50
18
16030002
ref: 18
FLOAT VALVE ASSY
€ 22.00
19
16031014
ref: 19
FLOAT
€ 33.00
20
16032003
ref: 20
FLOAT PIN
€ 4.00
21
16019011
ref: 21
GASKET,FLOAT CHAMBER (NAS)
€ 10.00
22
16033012
ref: 22
SCREW-FLOAT CHAMBER
€ 1.00
24
16010005
ref: 24
SCREW-CLAMP
€ 2.00
1
160011033
ref: 1
KV75-A7
CARBURETOR ASSEMBLY
€ 89.50
2
16016009
ref: 2
PLUNGER-STARTER
€ 35.50
3
16010005
ref: 3
SCREW-CLAMP
€ 2.00
4
16014002
ref: 4
SCREW-PILOT AIR
€ 11.00
5
16022007
ref: 5
SPRING-THR STOP SCREW
€ 5.50
6
16021001
ref: 6
SCREW,THROTTLE STOP
€ 9.00
7
920641018
ref: 7
JET-PILOT,#A15
€ 13.00
10
16029002
ref: 10
WASHER-VALVE SEAT
€ 2.50
11
16030002
ref: 11
FLOAT VALVE ASSY
€ 22.00
12
16031014
ref: 12
FLOAT
€ 33.00
13
16032003
ref: 13
FLOAT PIN
€ 4.00
14
16019011
ref: 14
GASKET,FLOAT CHAMBER (NAS)
€ 10.00
15
16003006
ref: 15
NUT-CABLE ADJUST LOCK
€ 4.50
16
160051003
ref: 16
TOP,MIXING CHAMBER
€ 29.00
17
16006001
ref: 17
SPRING,THROTTLE VALVE
€ 7.50
18
16007001
ref: 18
SPRING SEAT,THRTL VLV
€ 6.50
19
920371117
ref: 19
CLAMP,JET NEEDLE
€ 4.50
19
920371043
ref: 19
KV75-A8
CLAMP,TUBE
€ 1.50
19
920371117
ref: 19
KV75-A9
CLAMP,JET NEEDLE
€ 4.50
20
16009042
ref: 20
JET NEEDLE 3G09
€ 20.50
21
160251004
ref: 21
VALVE,THROTTLE,CA2.0
€ 58.00
22
16033012
ref: 22
SCREW-FLOAT CHAMBER
€ 1.00
23
16064001
ref: 23
EJECTOR ASSY-FUEL
€ 39.00
24
920371043
ref: 24
CLAMP,TUBE
€ 1.50
25
920591015
ref: 25
TUBE,OVERFLOW,3X5X200
€ 4.00
26
92036018
ref: 26
CIRCLIP
€ 2.50
27
16002007
ref: 27
ADJUSTER-CABLE,THROTT
€ 7.50
28
490061010
ref: 28
BOOTS,CABLE ADJUSTER
€ 3.50
