FRONT HUB/BRAKE
MC1M 1974 USA CANADA

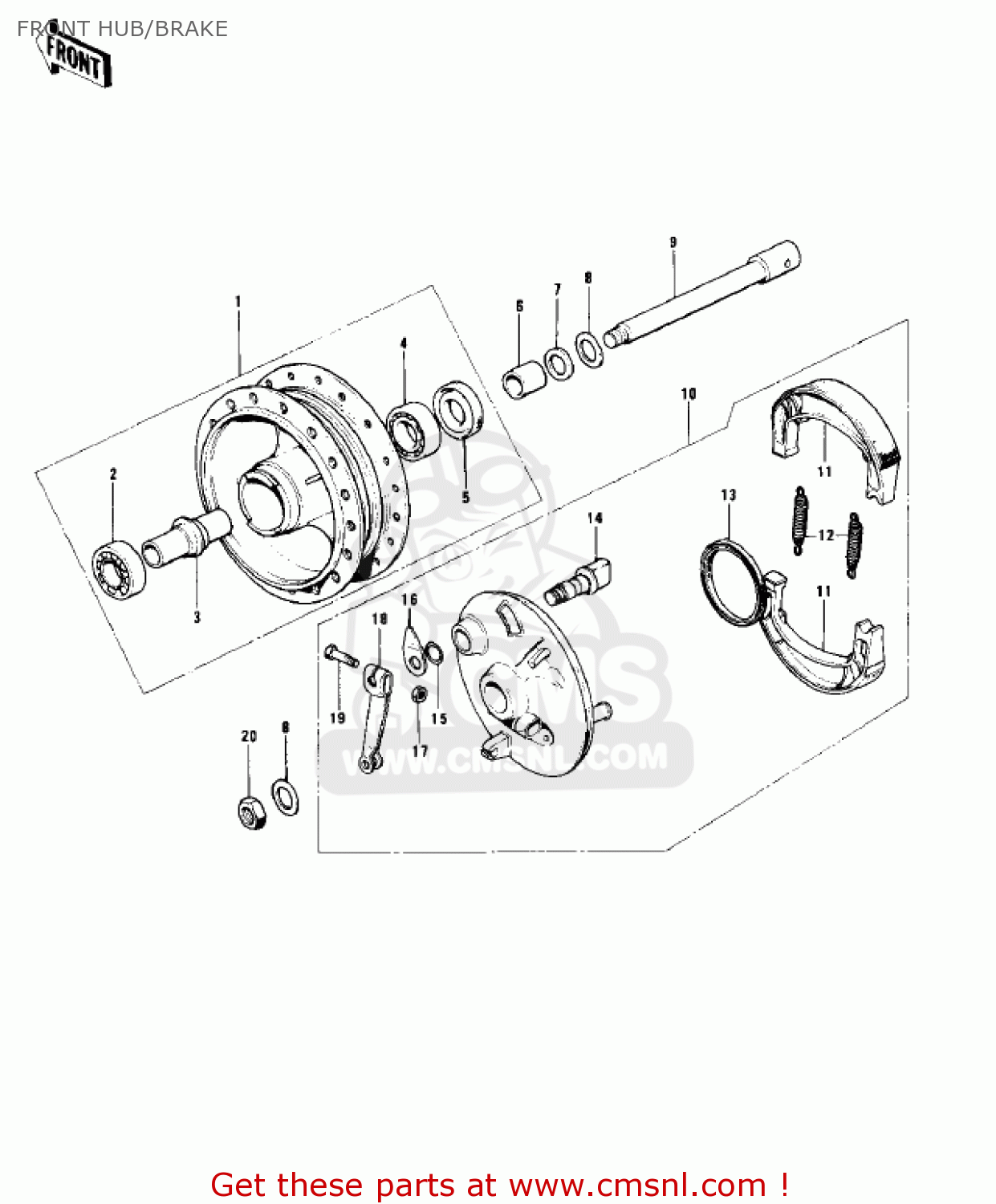

Front hub/brake diagram MC1M 1974 USA CANADA
FRONT HUB/BRAKE MC1M 1974 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
410341040
ref: 1
BUFF FINISH
DRUM-ASSY,FR,BUFF FIN
€ 203.50
2
601B6300Z
ref: 2
BEARING-BALL,#6300ZC3
€ 18.50
3
41039002
ref: 3
COLLAR,L=51
€ 6.00
4
601B6200
ref: 4
BEARING-BALL,#6200C3
€ 11.50
5
92050063
ref: 5
OIL SEAL,TC17317
€ 10.00
6
41069026
ref: 6
COLLAR,L=13
€ 9.00
7
41042002
ref: 7
DUST SHIELD-FRNT DRUM
€ 2.50
8
411B1000
ref: 8
WASHER-PLAIN,10MM
€ 0.50
9
41068039
ref: 9
AXLE-FRONT
€ 20.00
10
4103506080
ref: 10
BUFF FINISH
FRONT BRAKE PANEL ASSEMBLY,BUFF
€ 173.50
11
410481085
ref: 11
SHOE-BRAKE (NAS)
€ 13.00
12
920811766
ref: 12
SPRING,BRAKE SHOE
€ 5.50
13
92050002
ref: 13
OIL SEAL-BRAKE PANEL
€ 9.00
14
41050018
ref: 14
CAM-BRAKE
€ 18.00
15
92055004
ref: 15
RING-O,BRAKE CAM
€ 3.00
16
41085008
ref: 16
INDICATOR,BRAKE SHOE
€ 8.50
17
41072007
ref: 17
NUT,6MM
€ 2.50
18
41053005
ref: 18
LEVER-BRAKE CAM
€ 11.50
19
112G0630
ref: 19
BOLT-UPSET
€ 1.00
20
42045005
ref: 20
NUT,10MM
€ 5.00
