CHASSIS ELECTRICAL EQUIPMENT
MC1M 1974 USA CANADA

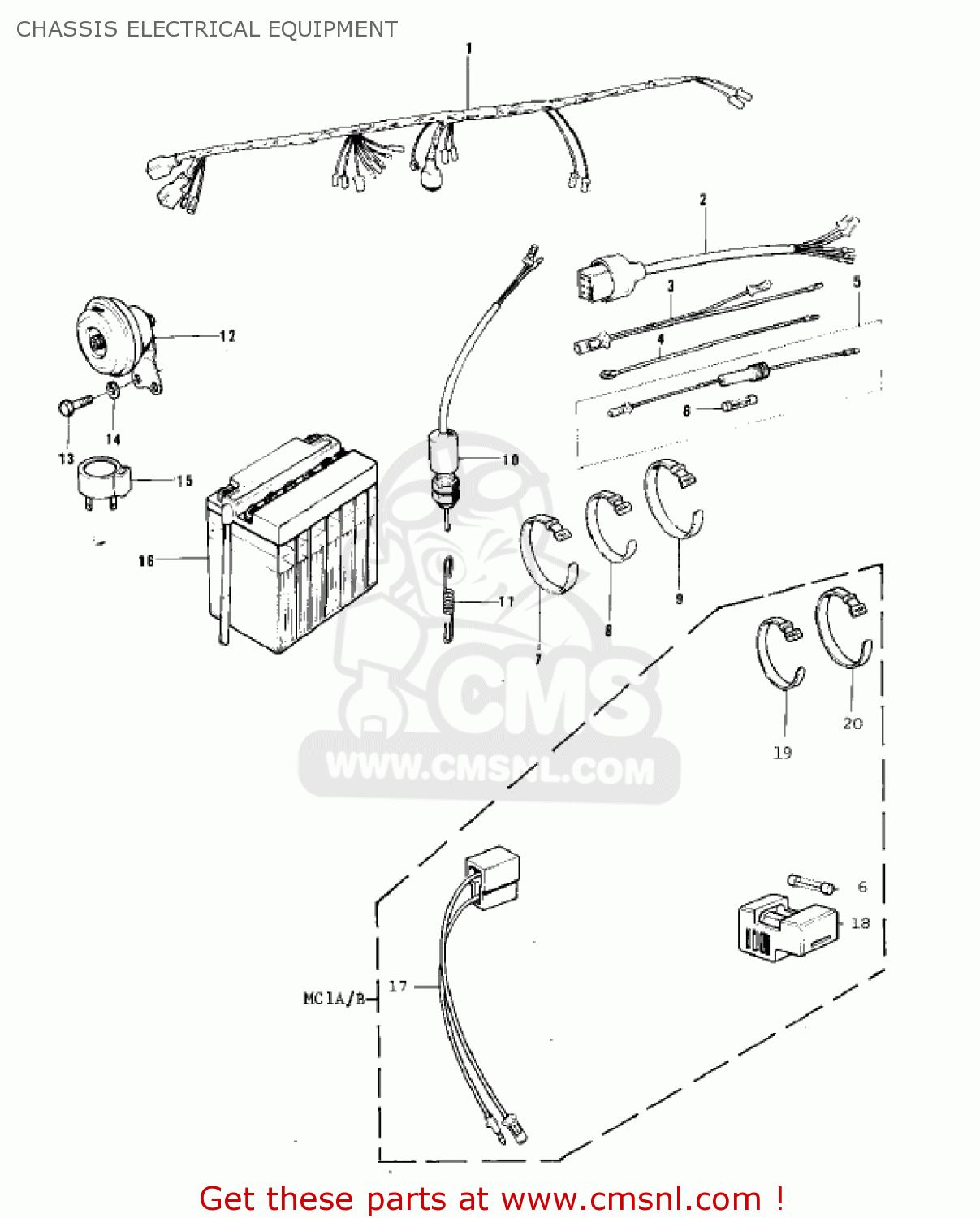

Chassis electrical equipment diagram MC1M 1974 USA CANADA
CHASSIS ELECTRICAL EQUIPMENT MC1M 1974 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
26001098
ref: 1
WIRING HARNESS,MAIN
€ 194.00
2
260111042
ref: 2
WIRE,LEAD
€ 31.50
3
26011042
ref: 3
WIRE-LEAD
€ 3.00
4
26011063
ref: 4
WIRE-LEAD,L=185
€ 5.00
5
26004008
ref: 5
FUSE-ASSY
€ 13.00
5
26004017
ref: 5
MC1A/B
FUSE-ASSY
€ 10.00
6
26006003
ref: 6
3 REQ MC1A/B
FUSE 10A
€ 3.00
7
92072056
ref: 7
BAND,RUBBER
€ 3.00
8
92072031
ref: 8
BAND,MIDDLE
€ 3.00
9
92072032
ref: 9
BAND,LONG
€ 3.00
10
27010015
ref: 10
SWITCH,BRAKE LAMP
€ 23.00
11
27011011
ref: 11
SPRING,BRAKE LAMP SW
€ 5.50
12
27003060
ref: 12
HORN
€ 95.50
12
27003060
ref: 12
MC1B
HORN
€ 95.50
13
112G0610
ref: 13
BOLT,6X10
€ 0.50
13
112G0610
ref: 13
BOLT,6X10
€ 0.50
14
461F0600
ref: 14
WASHER-SPRING,6MM
€ 0.50
15
27002013
ref: 15
RELAY-ASSY,TURN SIGNA
€ 27.00
16
26012029
ref: 16
BATTERY,6V 6AH
€ 67.50
16
K26012020
ref: 16
MC1A/B
BATTERY,YUA,6N4-2A-5
€ 55.50
17
26011074
ref: 17
MC1A/B
WIRE,RECTIFIER LEAD
€ 6.50
18
26016003
ref: 18
MC1A/B
HOLDER,SPARE FUSE
€ 8.50
19
92072030
ref: 19
MC1A/B
BAND,SHORT
€ 3.00
20
92072056
ref: 20
MC1A/B
BAND,RUBBER
€ 3.00
