FOOTRESTS/STAND/BRAKE PEDAL
MC1B 1975 USA CANADA

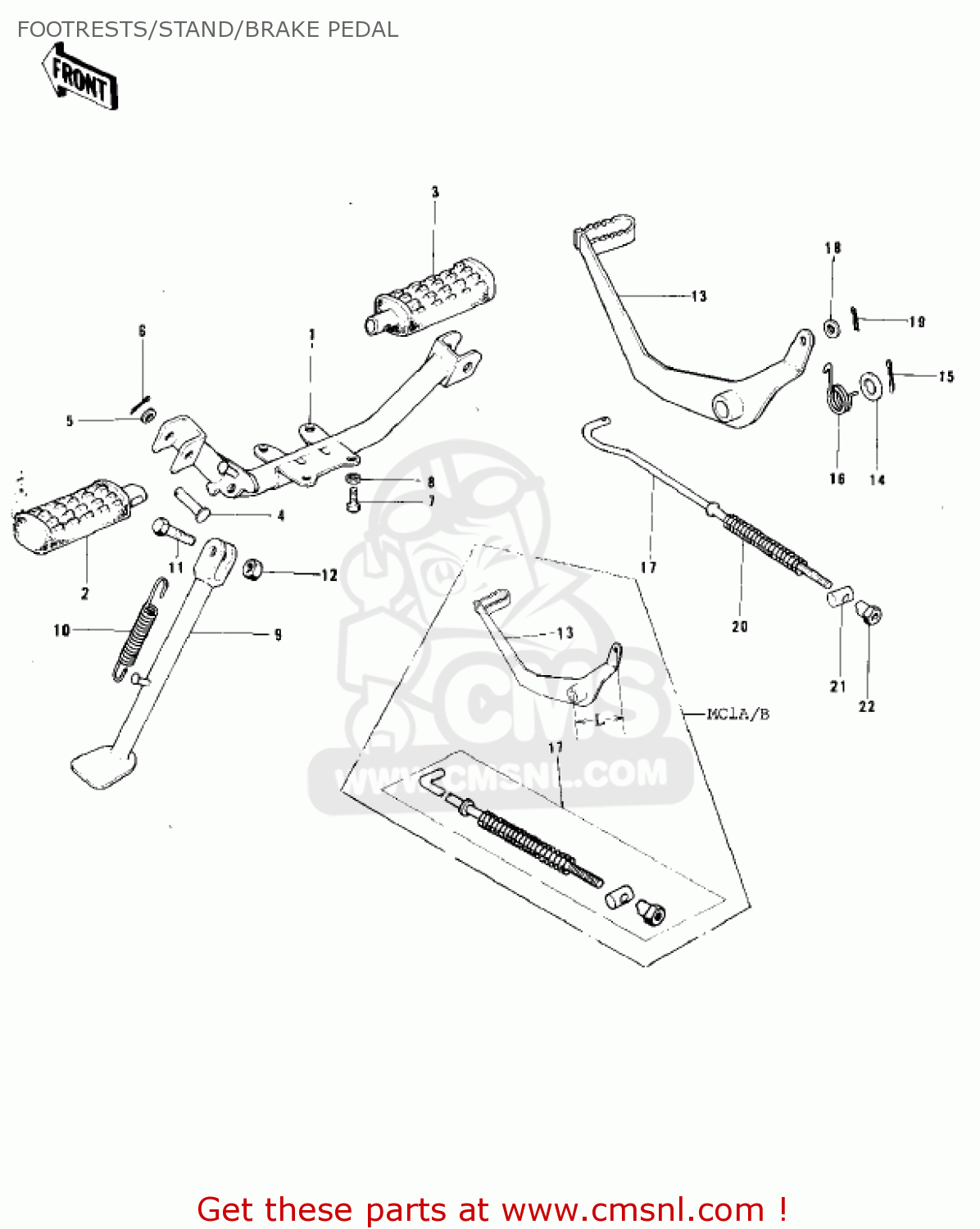

Footrests/stand/brake pedal diagram MC1B 1975 USA CANADA
FOOTRESTS/STAND/BRAKE PEDAL MC1B 1975 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
34002047
ref: 1
HOLDER-STEP
€ 77.50
2
340271114
ref: 2
STEP-ASSY,FR,LH
€ 24.00
2
340271114
ref: 2
MC1A/B
STEP-ASSY,FR,LH
€ 24.00
3
340271115
ref: 3
STEP-ASSY,FR,RH
€ 24.00
3
340271115
ref: 3
MC1A/B
STEP-ASSY,FR,RH
€ 24.00
4
92043080
ref: 4
PIN-FOOTREST BAR FIT
€ 3.50
5
92022204
ref: 5
WASHER-PLAIN
€ 0.50
6
550D2015
ref: 6
PIN-COTTER,2.0X15
€ 1.00
7
115G0816
ref: 7
BOLT-HEX,HEAD 8X16
€ 0.50
8
116B0816
ref: 8
BOLT-HEX HEAD,8X16
€ 0.50
9
340241013
ref: 9
STAND-SIDE
€ 30.00
9
340241013
ref: 9
MC1A/B
STAND-SIDE
€ 30.00
10
34023005
ref: 10
SPRING-MAIN STAND
€ 6.50
11
113G1025
ref: 11
BOLT-SMALL-FINE,10X25
€ 2.50
12
314B1000
ref: 12
NUT,10MM
€ 0.50
13
43001053
ref: 13
BRAKE PEDAL
€ 58.00
13
43001062
ref: 13
1 66M/M MC1A/B
LEVER-BRAKE,PEDAL
€ 30.00
14
92022085
ref: 14
WASHER,15.3X24X1.2
€ 2.50
15
550D3030
ref: 15
PIN-COTTER,3.0X30
€ 1.50
16
43005020
ref: 16
SPRING,BRAKE PEDAL
€ 4.00
17
43011024
ref: 17
BRAKE ROD
€ 26.50
17
43010019
ref: 17
MC1A/B
ROD ASSY,BRAKE
€ 3.50
18
410B0600
ref: 18
WASHER-PLAIN-SMALL,6M
€ 0.50
19
550D2015
ref: 19
PIN-COTTER,2.0X15
€ 1.00
20
43012001
ref: 20
SPRING,BRAKE ROD
€ 3.00
21
92043039
ref: 21
PIN,BRAKE ROD
€ 4.50
22
92015042
ref: 22
NUT-BRAKE ROD ADJUST
€ 4.00
