AIR CLEANER/MUFFLER ('74-'75 MC1
MC1B 1975 USA CANADA

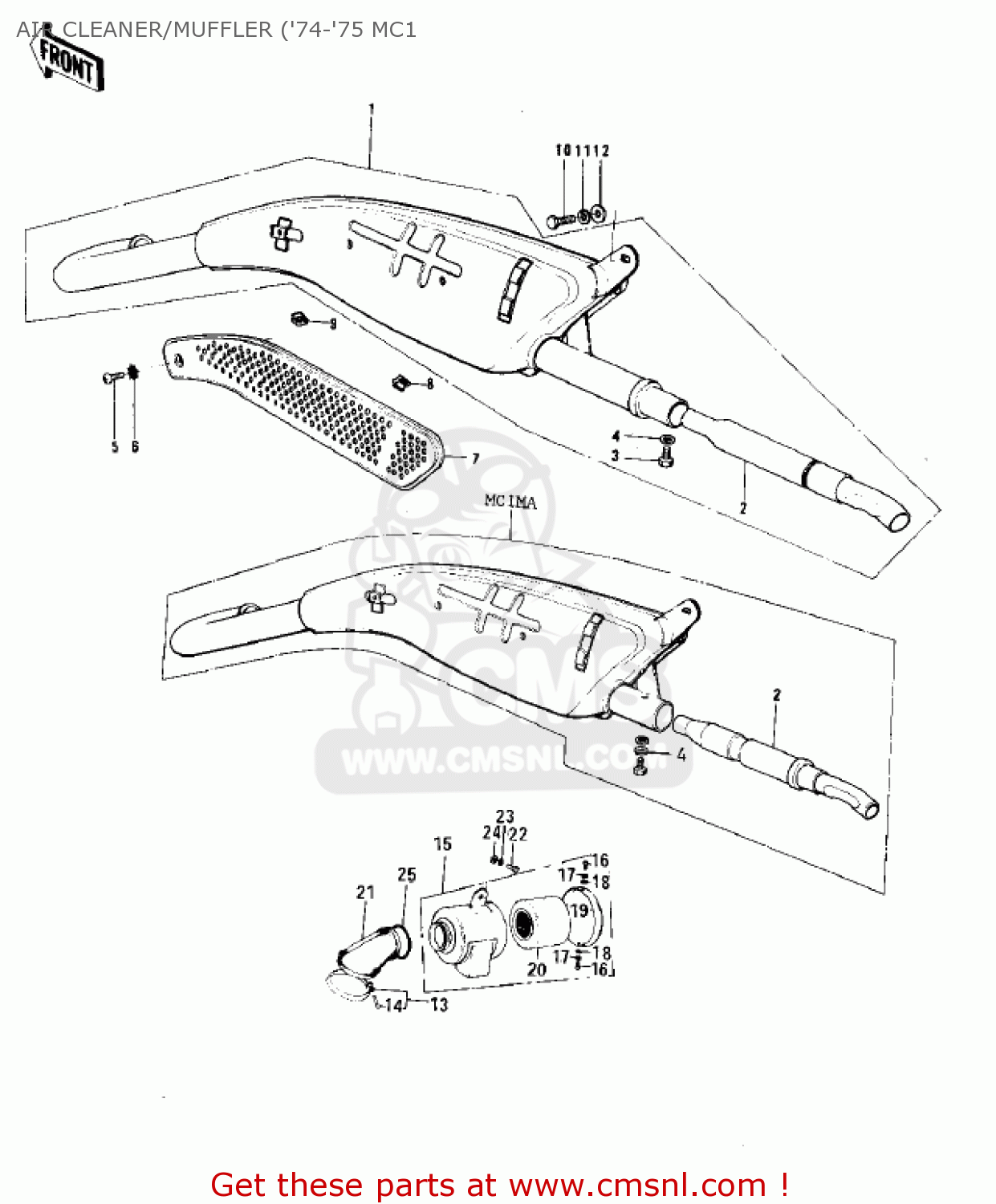

Air cleaner/muffler ('74-'75 mc1 diagram MC1B 1975 USA CANADA
AIR CLEANER/MUFFLER ('74-'75 MC1 MC1B 1975 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
1800116721
ref: 1
MUFFLER ASSY,F.BLACK
€ 229.50
1
1800116721
ref: 1
MC1MA
MUFFLER ASSY,F.BLACK
€ 229.50
2
18033083
ref: 2
BAFFLE TUBE
€ 97.50
2
18033088
ref: 2
MC1MA
BAFFLE TUBE (MCA)
€ 75.50
3
112G0610
ref: 3
BOLT,6X10
€ 0.50
4
92022183
ref: 4
WASHER,6.2X11X1.5
€ 2.50
4
410B0600
ref: 4
MC1MA
WASHER-PLAIN-SMALL,6M
€ 0.50
5
220E0612
ref: 5
SCREW-PAN HEAD,6X12
€ 3.00
6
463H0600
ref: 6
WASHER-LOCK,6MM
€ 0.50
7
18064018
ref: 7
COVER,MUFFLER
€ 24.00
8
18065007
ref: 8
INSULATOR,HEAT
€ 3.00
9
18065009
ref: 9
INSULATOR,HEAT
€ 3.00
10
115G0816
ref: 10
BOLT-HEX,HEAD 8X16
€ 0.50
11
461F0800
ref: 11
WASHER-SPRING,8MM
€ 0.50
12
411B0800
ref: 12
WASHER-PLAIN,8MM
€ 0.50
13
92037068
ref: 13
CLAMP
€ 7.50
14
220B0635
ref: 14
SCREW-PAN HEAD,6X35
€ 1.00
15
1101006810
ref: 15
BLACK
AIR CLEANER ASSY,BLAK
€ 98.50
16
220B0508
ref: 16
SCREW-PAN-CROS,5X8
€ 0.50
17
461F0500
ref: 17
WASHER-SPRING,5MM
€ 0.50
18
411B0500
ref: 18
WASHER-PLAIN,5MM
€ 0.50
19
11012041
ref: 19
CAP,AIR FILTER
€ 8.50
20
11013044
ref: 20
ELEMENT-AIR FILTER
€ 8.00
21
11026009
ref: 21
DUCT,AIR FILTER
€ 8.50
22
220B0612
ref: 22
SCREW-PAN HEAD,6X12
€ 1.00
23
461F0600
ref: 23
WASHER-SPRING,6MM
€ 0.50
24
410B0600
ref: 24
WASHER-PLAIN-SMALL,6M
€ 0.50
25
92081047
ref: 25
SPRING,COIL
€ 7.50
