REAR HUB/BRAKE /CHAIN
MC1A 1974 USA CANADA

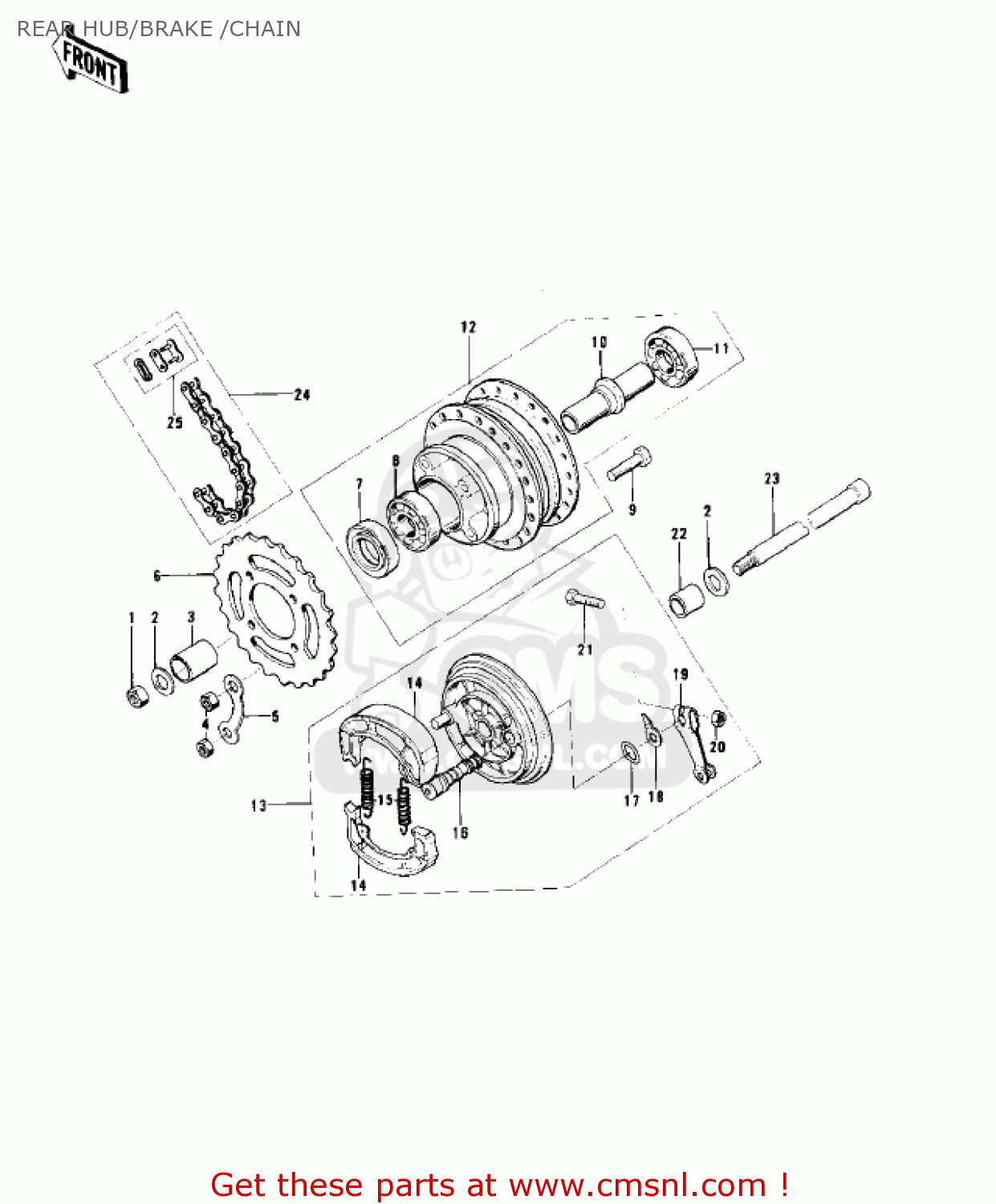

Rear hub/brake /chain diagram MC1A 1974 USA CANADA
REAR HUB/BRAKE /CHAIN MC1A 1974 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
314B1200
ref: 1
NUT-HEX-FINE
€ 1.00
2
411B1200
ref: 2
WASHER-PLAIN,12MM
€ 0.50
3
42032044
ref: 3
L=14M/M
COLLAR,L=14
€ 6.00
3
42032002
ref: 3
MC1MA
COLLAR,12.2X22X30.5
€ 9.00
4
311B0800
ref: 4
NUT,8MM
€ 0.50
5
92088003
ref: 5
WASHER,SPROCKET LOCK
€ 3.00
6
42041022
ref: 6
S I D
REAR SPROCKET 36T
€ 34.00
6
42041019
ref: 6
OPTION
REAR SPROCKET 34T
€ 39.00
7
92052001
ref: 7
OIL SEAL-RR BRK DRUM
€ 6.50
8
601B6301
ref: 8
BEARING-BALL,#6301C3
€ 13.00
9
92001021
ref: 9
BOLT-REAR SPROCKET
€ 3.50
10
42010003
ref: 10
COLLAR,L=85
€ 6.50
11
601B6301Z
ref: 11
BEARING-BALL,#6301ZC3
€ 15.00
12
41034100280
ref: 12
BUFF FINISH
DRUM ASSY,RR BRK,BUFF
€ 264.50
13
4200606380
ref: 13
BUFF FINISH
PANEL ASSY,REAR BRAKE
€ 174.50
14
410481085
ref: 14
SHOE-BRAKE (NAS)
€ 13.00
14
410481085
ref: 14
MC1MA
SHOE-BRAKE (NAS)
€ 13.00
15
920811766
ref: 15
SPRING,BRAKE SHOE
€ 5.50
16
42026018
ref: 16
CAM-BRAKE
€ 19.50
17
92055004
ref: 17
RING-O,BRAKE CAM
€ 3.00
18
41085003
ref: 18
INDICATOR,BRAKE SHOE
€ 9.00
19
42029027
ref: 19
LEVER-BRAKE CAM
€ 16.50
20
41072007
ref: 20
NUT,6MM
€ 2.50
21
112G0630
ref: 21
BOLT-UPSET
€ 1.00
22
42032043
ref: 22
COLLAR,REAR AXLE
€ 9.00
23
410681091
ref: 23
AXLE,12X206
€ 24.00
24
920571089
ref: 24
CHAIN,DRIVE,EK428 96L
€ 19.00
25
920581014
ref: 25
JOINT-CHAIN,EK428-G
€ 3.50
