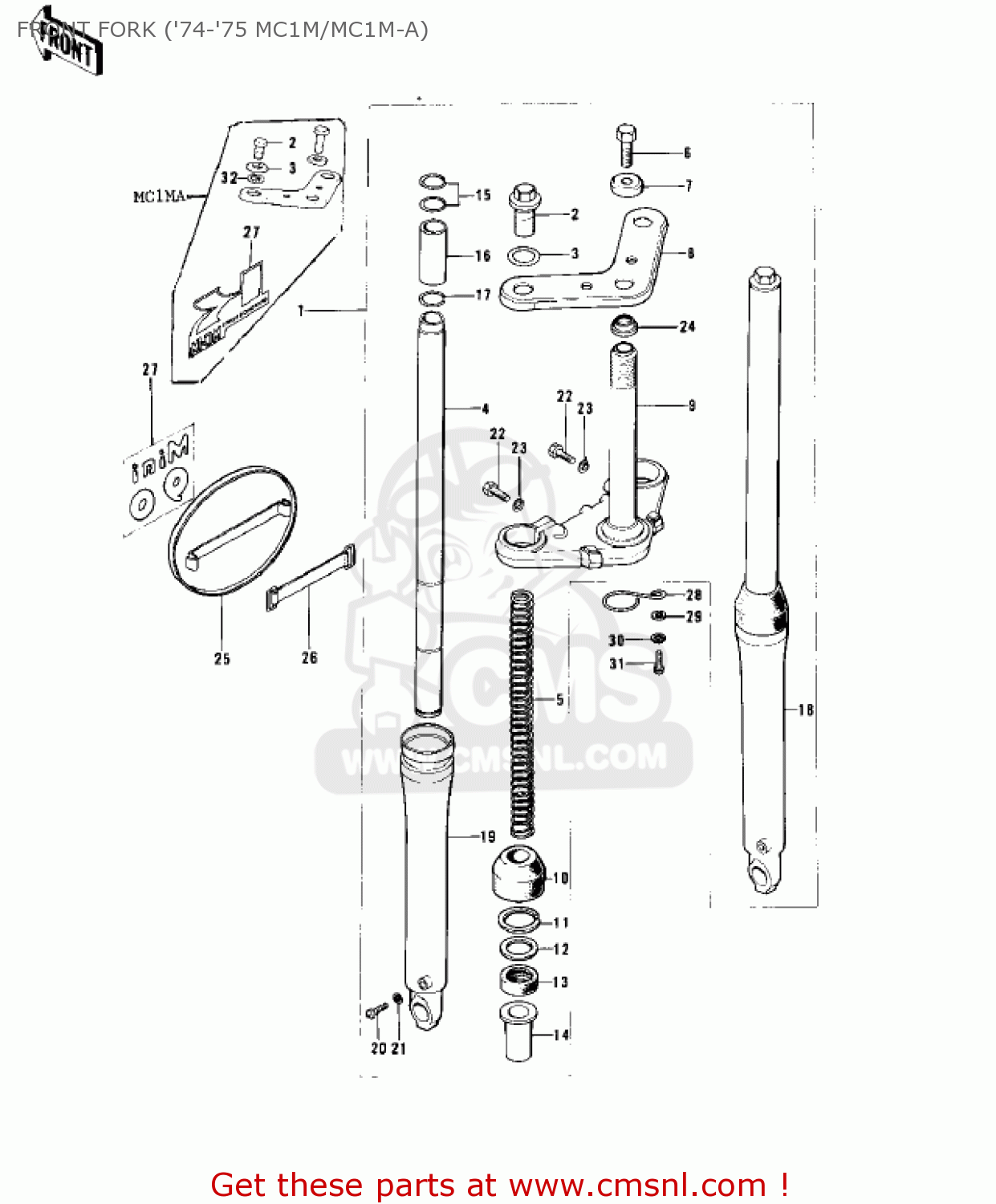

FRONT FORK ('74-'75 MC1M/MC1M-A)

ref

part #

description

quantity

1

44001143
ref: 1

FRONT FORK

€ 1,006.00

1

44001161
ref: 1
MC1MA

FRONT FORK ASSY

€ 488.00

2

44032010
ref: 2

BOLT,FORK TOP

€ 48.50

2

920011742
ref: 2
MC1MA

BOLT

€ 10.50

3

44046020
ref: 3

FORK TOP BOLT O-RING

€ 3.00

3

920221381
ref: 3
MC1MA

WASHER

€ 6.00

4

44013045
ref: 4

FORK INNER TUBE

€ 197.00

4

44013051
ref: 4
MC1MA

TUBE,FORK INNER

€ 45.50

5

44026051
ref: 5

FORK SPRING,INNER

€ 20.00

6

112G1030
ref: 6

BOLT UPSET

€ 4.50

7

920221381
ref: 7

WASHER

€ 6.00

8

44039056
ref: 8

HEAD,STEERING

€ 27.50

9

44037069
ref: 9

STEM,STEERING

€ 138.50

10

44010024
ref: 10

DUST SHIELD,FORK

€ 9.00

11

44044016
ref: 11

RING-SNAP,40MM

€ 4.50

12

44043054
ref: 12

WASHER,FORK OUTER PIP

€ 2.50

13

920491075
ref: 13

SEAL OIL, OUTER TUBE

€ 10.00

14

44015016
ref: 14

GUIDE,FORK INNER PIPE

€ 10.50

15

44020003
ref: 15

RING,INNER TUBE GUIDE

€ 2.00

16

44018007
ref: 16

PISTON-FORK

€ 9.50

17

44044017
ref: 17

CIRCLIP,OUTER TUBE

€ 2.00

18

44006050
ref: 18

TUBE,R.H OUTER

€ 93.50

19

44005052
ref: 19

TUBE,L.H FORK OUTER

€ 65.50

20

220B0406
ref: 20

SCREW-PAN-CROS,4X6

€ 2.50

21

44045046
ref: 21

GASKET,FORK DRAIN PLU (NAS)

€ 4.50

22

920011252
ref: 22

BOLT,HEX HEAD,10X35

€ 3.50

23

461F1000
ref: 23

WASHER-SPRING,10MM

€ 0.50

24

92047004
ref: 24

CONE-LOWER BEARING

€ 13.00

25

58029025
ref: 25

FRONT NUMBER PLATE

€ 76.00

26

92072006
ref: 26

BAND,L=142.1

€ 8.00

27

56018169
ref: 27

NUMBER PLATE EMBLEM

€ 31.50

27

56018179
ref: 27
MC1MA

NUMBER PLATE EMBLEM

€ 30.00

28

92037046
ref: 28

CLAMP,CABLE

€ 3.00

29

411B0600
ref: 29

WASHER-PLAIN,6MM

€ 0.50

30

461F0600
ref: 30

WASHER-SPRING,6MM

€ 0.50

31

112G0612
ref: 31

BOLT-UPSET

€ 2.50

32

44045053
ref: 32
MC1MA

GASKET,FORK TOP BOLT (NAS)

€ 3.00

all assemblies
