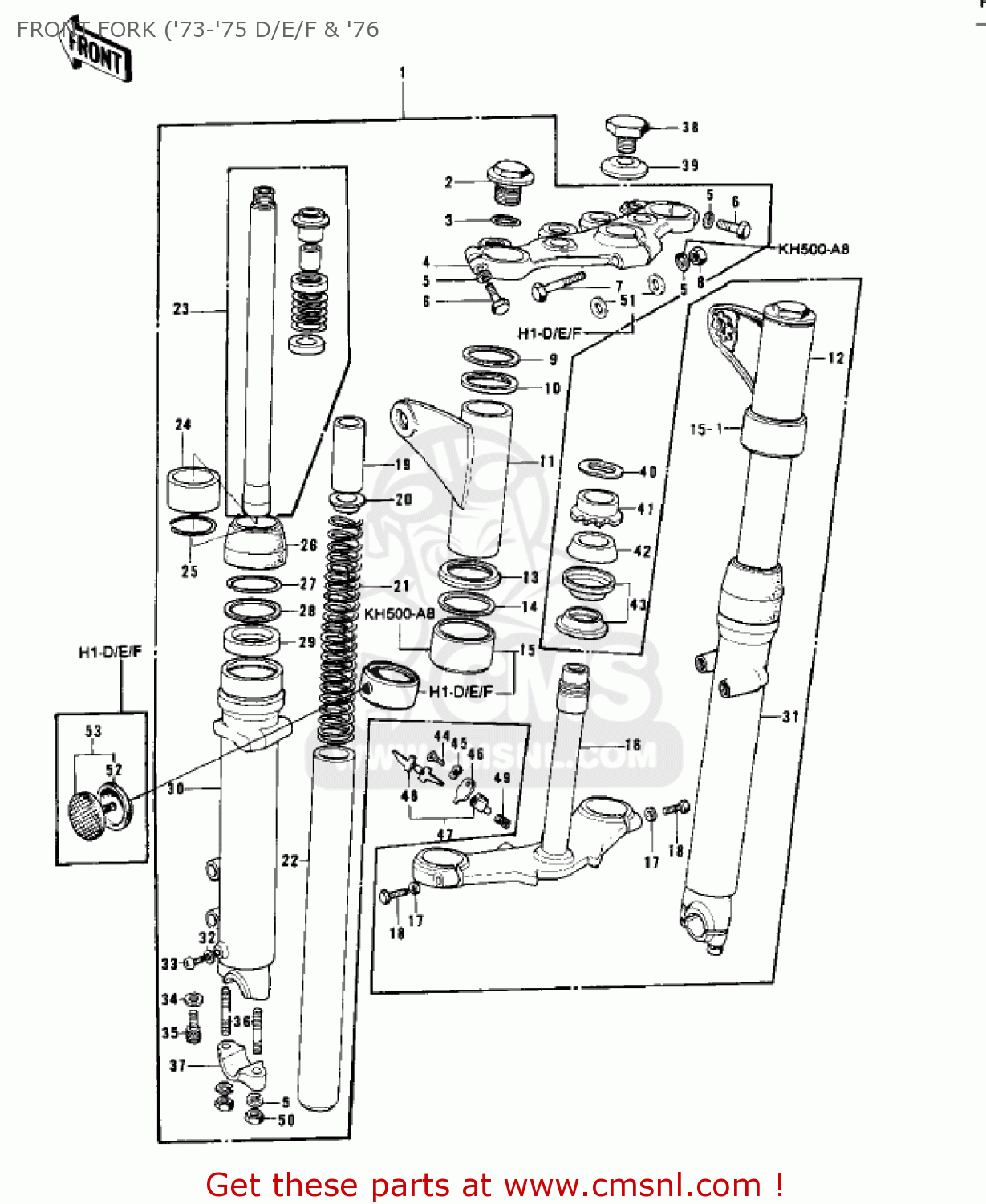

FRONT FORK ('73-'75 D/E/F & '76

ref

part #

description

quantity

1

44001131
ref: 1
H1-D

FRONT FORK ASSY

€ 1,143.00

1

44001131
ref: 1
H1-E/F

FRONT FORK ASSY

€ 1,143.00

1

44001176
ref: 1
KH500-A8

FRONT FORK ASSY

€ 1,051.50

2

44062003
ref: 2

BOLT-FORK TOP

€ 43.00

3

44046015
ref: 3

RING-O,FORK TOP

€ 4.50

4

44039048
ref: 4

HEAD,STEERING STEM

€ 121.50

5

461F0800
ref: 5
H1-D/E/F

WASHER-SPRING,8MM

€ 0.50

5

461F0800
ref: 5
KH500-A8

WASHER-SPRING,8MM

€ 0.50

6

44041049
ref: 6

BOLT,HEX HEAD,6MM

€ 3.50

7

44041042
ref: 7

BOLT-STEERING STEM HD

€ 3.00

8

920151124
ref: 8
H1-D/E/F

NUT,LOCK,8MM

€ 3.50

8

92017013
ref: 8
KH500-A8

NUT,LOCK,8MM

€ 5.50

9

44045041
ref: 9

GASKET,FORK COVER

€ 3.50

10

44043048
ref: 10

WASHER,FORK COVER

€ 4.00

11

44033069
ref: 11
H1-D

COVER,L.H FORK

€ 70.50

11

44033069
ref: 11
H1-E/F

COVER,L.H FORK

€ 70.50

11

44033068
ref: 11
KH500-A8

COVER,L.H FORK

€ 51.50

12

44034069
ref: 12
H1-D

COVER,R.H FORK

€ 50.00

12

44034069
ref: 12
H1-E/F

COVER,R.H FORK

€ 50.00

12

44034068
ref: 12
KH500-A8

COVER,R.H FORK

€ 66.50

13

44032008
ref: 13

WASHER-FORK COVER

€ 10.50

14

44045040
ref: 14
H1-D

GASKET,FORK COVER

€ 2.00

14

44045038
ref: 14
H1-E/F,KH500-A8

GASKET,FORK COVER (NAS)

€ 3.50

15

44064014
ref: 15
H1-D/E/F

GUIDE,L.H FORK COVER

€ 26.00

15

44064025
ref: 15
KH500-A8

GUIDE,FORK COVER

€ 20.50

15-1

44064013
ref: 15-1
H1-D/E/F

GUIDE,R.H FORK COVER

€ 6.50

15-1

44064025
ref: 15-1
KH500-A8

GUIDE,FORK COVER

€ 20.50

16

44037053
ref: 16
H1-D/E/F

STEM,STEERING

€ 308.50

16

44037096
ref: 16
KH500-A8

STEM,STEERING

€ 192.50

17

461F1200
ref: 17

WASHER-SPRING,12MM

€ 0.50

18

92003064
ref: 18

BOLT-HEX HEAD,12X36

€ 15.00

19

44028023
ref: 19

SPACER-FORK SPRING

€ 2.50

20

44029019
ref: 20

GUIDE-FORK SPRING

€ 6.00

21

44026031
ref: 21

SPRING-FORK

€ 15.00

22

44013032
ref: 22

TUBE-FORK INNER

€ 117.00

23

44022007
ref: 23
H1-D

CYLINDER-FORK

€ 113.00

23

44023006
ref: 23
INCLUDES REF. #S 24

CYLINDER SET,FORK

€ 113.00

23

44022027
ref: 23
H1-E/F

CYLINDER,FORK

€ 113.00

23

44022038
ref: 23
KH500-A8

CYLINDER,FORK

€ 48.50

24

44018003
ref: 24
H1-D USE FOR 44022-0

PISTON-FORK

€ 9.00

24

44018009
ref: 24
H1-E/F,KH500-A8

PISTON,FORK

€ 17.00

25

44044008
ref: 25
H1-D USE FOR 44022-0

CIRCLIP-FORK PISTON

€ 7.00

25

44044019
ref: 25
H1-E/F,KH500-A8

CIRCLIP,FORK PISTON

€ 4.50

26

44010021
ref: 26
H1-D/E/F

SEAL,FORK

€ 43.50

26

44010032
ref: 26
KH500-A8

SEAL,FORK

€ 17.00

27

44044012
ref: 27

RING-SNAP

€ 17.50

29

920491216
ref: 29
H1-D/E/F

SEAL-OIL,FORK OUTER P

€ 16.00

29

920491216
ref: 29
KH500-A8

SEAL-OIL,FORK OUTER P

€ 16.00

30

44005041
ref: 30
H1-D/E/F

TUBE-L.H OUTER

€ 271.50

30

44005065
ref: 30
KH500-A8

TUBE,L.H,FORK

€ 228.00

31

44006039
ref: 31
H1-D/E/F

TUBE-R.H OUTER

€ 258.50

31

44006063
ref: 31
KH500-A8

TUBE,R.H,FORK

€ 428.00

32

44045002
ref: 32

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

33

220B0408
ref: 33

SCREW-PAN-CROS

€ 0.50

34

44045057
ref: 34

GASKET (NAS)

€ 3.00

35

44041040
ref: 35

BOLT-FORK CYLINDER

€ 4.50

36

920041009
ref: 36

STUD, 8X35

€ 4.00

37

44063003
ref: 37
H1-D/E/F

HOLDER-FRONT AXLE

€ 18.00

37

44063014
ref: 37
KH500-A8

HOLDER,FRONT AXLE

€ 23.50

38

92007031
ref: 38

BOLT-STEERG STEM HEAD

€ 17.50

39

92022230
ref: 39

WASHER-STEERG STM HD

€ 7.50

40

46100003
ref: 40

WASHER,WAVE

€ 6.50

41

92090007
ref: 41

NUT-STEERING STEM LCK

€ 8.00

42

46098016
ref: 42

CAP,STEERING STEM

€ 4.00

43

92047006
ref: 43

CONE-STRNG STEM

€ 11.00

44

92008007
ref: 44

SCREW-TAPPING

€ 2.50

45

92097003
ref: 45

WASHER

€ 2.50

46

27031002
ref: 46
H1-D

CAP,STEERING LOCK

€ 1.50

46

27031004
ref: 46
H1-E/F,KH500-A8

CAP,STEERING LOCK

€ 2.00

47

27016030
ref: 47
H1-D

LOCK ASSY-STEERING

€ 11.50

47

27016038
ref: 47
H1-E/F,KH500-A8

LOCK ASSY,STEERING

€ 36.00

48

2701801665
ref: 48
H1-D

KEY SET,#265

€ 4.50

48

2701801679
ref: 48
H1-D

KEY SET,#279

€ 4.50

48

2700805511
ref: 48
H1-E/F,KH500-A8

KEY SET,#911

€ 20.50

48

2700805525
ref: 48
H1-E/F,KH500-A8

KEY SET #925

€ 23.50

49

27032001
ref: 49

SPRING-STEERING LOCK

€ 3.50

50

311B0800
ref: 50
H1-D/E/F

NUT,8MM

€ 0.50

50

92017013
ref: 50
KH500-A8

NUT,LOCK,8MM

€ 5.50

51

410B0800
ref: 51
H1-D/E/F

WASHER-PLAIN-SMALL,8M

€ 0.50

52

28016002
ref: 52
H1-D/E/F

DAMPER RUBBER-REFLEX

€ 5.50

53

28001029
ref: 53
H1-D/E/F

REFLECTOR,REFLEX,FRNT

€ 20.00

FRONT FORK ('73-'75 D/E/F & '76

all assemblies
