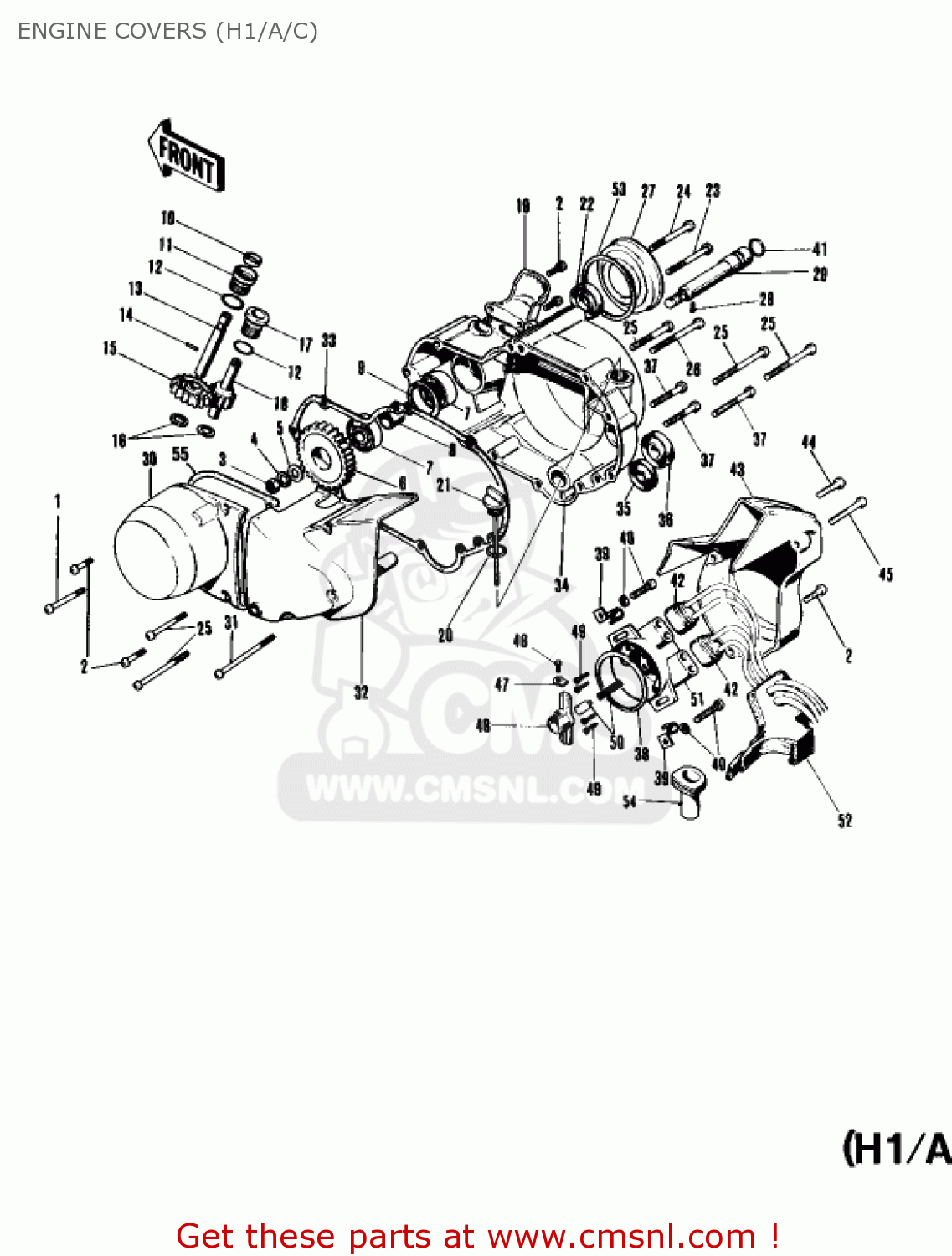

ENGINE COVERS (H1/A/C)

ref

part #

description

quantity

1

220B0640
ref: 1

SCREW-PAN HEAD,6X40

€ 2.00

2

220B0620
ref: 2

SCREW-PAN HEAD,6X20

€ 2.50

3

311B0600
ref: 3

NUT,6MM

€ 0.50

4

461F0600
ref: 4

WASHER-SPRING,6MM

€ 0.50

5

920221565
ref: 5

WASHER,6.5X16X2

€ 2.50

6

21147001
ref: 6

GEAR-DISTRIBUTOR

€ 4.50

7

920451235
ref: 7

BEARING-BALL,6001C3ML

€ 15.50

8

92027051
ref: 8

COLLAR

€ 3.50

9

481J2800
ref: 9

CIRCLIP-TYPE-C,28MM

€ 1.00

10

92054004
ref: 10

OIL SEAL

€ 14.50

11

92028075
ref: 11

BUSH

€ 14.50

12

92055025
ref: 12

'O' RING

€ 3.00

13

13226004
ref: 13

SHAFT-TACHOMETER GEAR

€ 6.00

14

92042035
ref: 14

PIN,DOWEL,2.5X12.8

€ 2.50

15

13224005
ref: 15

GEAR-TACHOMETER

€ 5.50

16

92026026
ref: 16

WASHER-THRUST

€ 5.50

17

92028074
ref: 17

BUSH

€ 15.00

18

16085011
ref: 18

GEAR-OIL PUMP

€ 65.00

19

14030024
ref: 19

COVER-OIL PUMP LEVER

€ 13.00

20

670B2020
ref: 20

O RING,20MM

€ 1.00

21

16115017
ref: 21

PLUG-OIL FILLER

€ 12.00

22

92049008
ref: 22

OIL SEAL TB15256

€ 8.50

23

220B0625
ref: 23

SCREW-PAN HEAD,6X25

€ 1.50

24

220B0680
ref: 24

SCREW-PAN HEAD,6X80

€ 3.00

25

220B0655
ref: 25

SCREW-PAN HEAD,6X55

€ 2.50

26

220B0660
ref: 26

SCREW-PAN HEAD,6X60

€ 2.50

27

21144002
ref: 27

INSULATOR-DISTRIBUTOR

€ 7.00

28

551A0308
ref: 28

PIN-DOWEL,3X8

€ 0.50

29

21143001
ref: 29
-E/NO. 8800

SHAFT-DISTRIBUTOR

€ 25.50

29

21143002
ref: 29
E/NO. 8801-

SHAFT-DISTRIBUTOR

€ 48.00

30

14031030
ref: 30

COVER-L.H ENGINE

€ 25.50

31

220B0685
ref: 31

SCREW-PAN HEAD,6X85

€ 3.50

32

1402602480
ref: 32

COVER,CHN CASE

€ 35.00

33

14046014
ref: 33

GASKET-R.H ENGINE COV (MCA)

€ 23.00

34

14032042
ref: 34

COVER-R.H ENGINE

€ 203.50

35

92049004
ref: 35

OIL SEAL SB12205

€ 6.00

36

92049002
ref: 36

OIL SEAL SB16244

€ 6.00

37

220B0630
ref: 37

SCREW-PAN HEAD,6X30

€ 2.50

38

92065048
ref: 38

GASKET (NAS)

€ 7.50

39

21149001
ref: 39

CLAMP-DISTRIBUTOR

€ 6.00

40

223B0410
ref: 40

SCREW-PAN-WS-CROS

€ 2.50

41

92036016
ref: 41

CIRCLIP

€ 2.50

42

92071031
ref: 42

GROMMET-DISTRIBUTOR

€ 3.50

43

14030025
ref: 43

COVER-OIL PUMP

€ 42.00

44

220B0645
ref: 44

SCREW-PAN HEAD,6X45

€ 2.50

45

220B06100
ref: 45

SCREW-PAN HEAD,6X100

€ 3.00

46

92011016
ref: 46

SCREW,4X16

€ 2.50

47

92024013
ref: 47

WASHER-LOCK,4MM

€ 1.00

48

21142003
ref: 48
USE FOR 21143-001

ROTOR-DISTRIBUTOR

€ 28.50

48

21142002
ref: 48
USE FOR 21143-002

ROTOR-DISTRIBUTOR

€ 224.50

49

92100001
ref: 49

SCREW-CORD FIT

€ 2.50

50

21088008
ref: 50

BRUSH-CARBON

€ 8.50

51

21141001
ref: 51

CAP-DISTRIBUTOR

€ 99.50

52

92071040
ref: 52
-E/NO. 8800

GROMET-TENSION CORD

€ 8.00

52

92071043
ref: 52
E/NO. 8801-

GROMMET-TENSION CORD

€ 12.50

53

92065072
ref: 53

GASKET (MCA)

€ 4.00

54

16116005
ref: 54
E/NO. 8801-

GROMMET-DRAIN

€ 8.50

5

14045022
ref: 5

GASKET,L.H ENG COVER (MCA)

€ 15.00

all assemblies
