TRANSMISSION/CHANGE DRUM ('74-'7
G3SSB 1972 USA CANADA

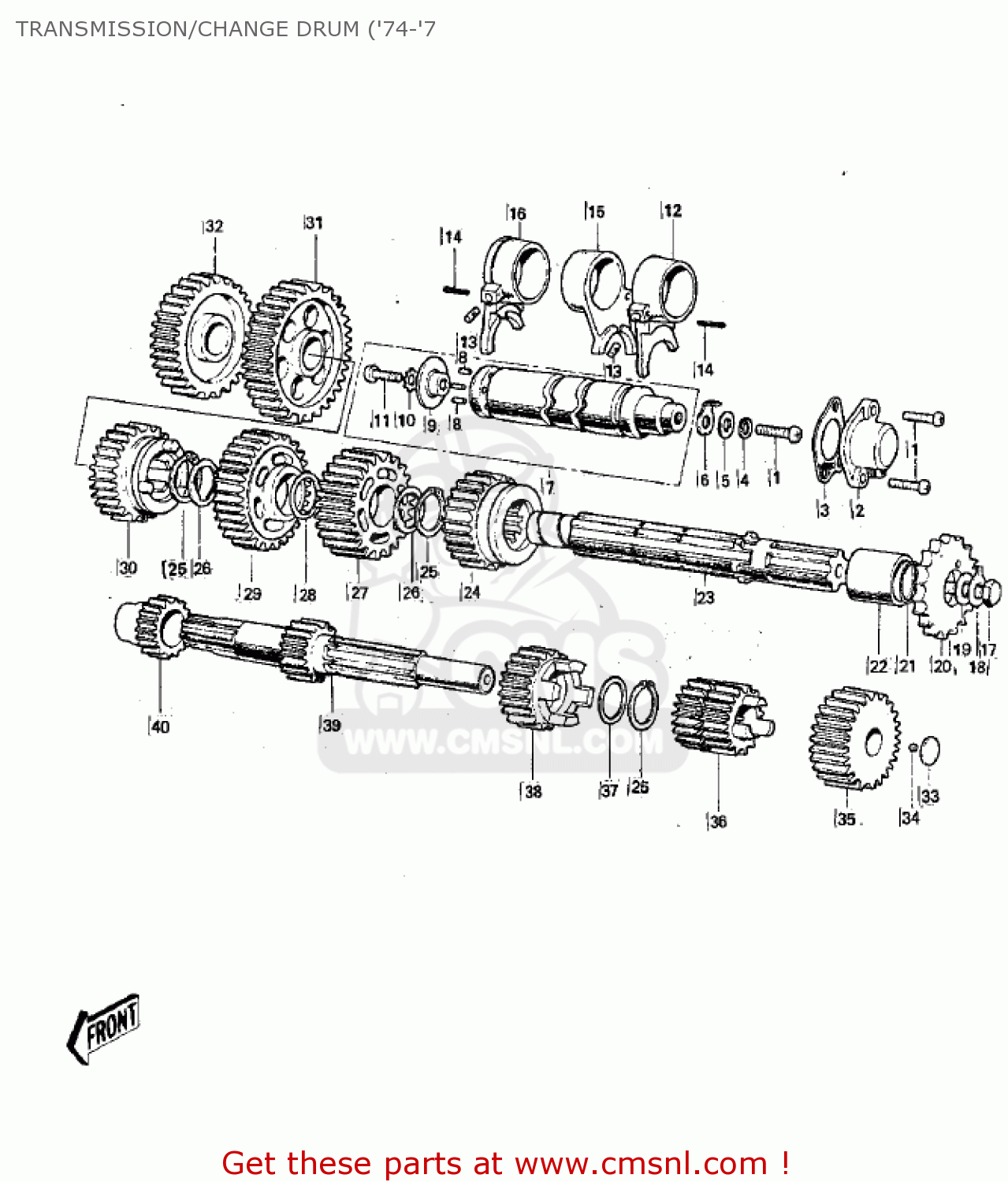

Transmission/change drum ('74-'7 diagram G3SSB 1972 USA CANADA
TRANSMISSION/CHANGE DRUM ('74-'7 G3SSB 1972 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
220B0616
ref: 1
SCREW-PAN HEAD,6X16
€ 2.50
2
131511001
ref: 2
SWITCH-COMP,NEUTRAL
€ 9.50
3
13146002
ref: 3
GASKET,NEUTRAL SWITCH (NAS)
€ 2.50
4
461F0600
ref: 4
WASHER-SPRING,6MM
€ 0.50
5
410B0600
ref: 5
WASHER-PLAIN-SMALL,6M
€ 0.50
6
210071003
ref: 6
ROTOR,TOP & NEUTRAL
€ 4.50
7
13239005
ref: 7
DRUM ASSY-GEAR CHANGE
€ 165.00
8
92042014
ref: 8
PIN-GEAR CHANGE DRUM
€ 0.50
9
13142008
ref: 9
PLATE-CHANGE DRUM PIN
€ 4.00
10
464H0600
ref: 10
WASHER-LOCK,6MM
€ 0.50
11
220B0612
ref: 11
SCREW-PAN HEAD,6X12
€ 1.00
12
13140009
ref: 12
FORK-SELECTOR,3RD
€ 46.50
13
92043005
ref: 13
PIN,DOWEL,8X15
€ 4.50
14
550D3020
ref: 14
PIN-COTTER,3.0X20
€ 2.00
15
13140017
ref: 15
FORK-SELECTOR,4TH-TOP
€ 120.00
16
13140010
ref: 16
FORK-SHIFT,LOW&2ND
€ 81.50
17
115G0816
ref: 17
BOLT-HEX,HEAD 8X16
€ 0.50
18
92030012
ref: 18
WASHER,CLAW,8X22X1.2
€ 3.50
19
92022266
ref: 19
WASHER,T=2.3
€ 3.50
20
131441058
ref: 20
S.T.D
SPROCKET-OUTPUT,14T
€ 20.00
20
13144053
ref: 20
OPTION
SPROCKET-OUTPUT,13T
€ 30.00
20
13144054
ref: 20
OPTION
SPROCKET-OUTPUT,15T
€ 30.00
21
92055022
ref: 21
'O' RING
€ 4.00
22
92027179
ref: 22
COLLAR,ENG SPROCKET
€ 12.50
23
13128021
ref: 23
SHAFT-OUTPUT
€ 160.50
24
13137012
ref: 24
23T
TOP GEAR-OUTPUT SHAFT
€ 28.50
25
92033014
ref: 25
RING-SNAP,16MM
€ 3.50
26
92024030
ref: 26
WASHER,TOOTHED,18.5X2
€ 4.00
27
13133005
ref: 27
26T
GEAR,OUTPUT 3RD,26T
€ 46.50
28
92022146
ref: 28
T=1.6 M/M
WASHER,THRUST,18.5X23
€ 4.50
29
13131008
ref: 29
30T
GEAR,OUTPUT 2ND,30T
€ 40.50
30
131291708
ref: 30
24T
GEAR,OUTPUT 4TH,24T
€ 70.00
31
13129010
ref: 31
35T
GEAR,OUTPUT LOW,35T
€ 66.50
32
13073004
ref: 32
30T
GEAR-SPUR,KICKSTARTER
€ 55.50
33
92022115
ref: 33
WASHER,THRUST
€ 2.50
34
600A0700
ref: 34
BALL-STEEL,7/32
€ 2.50
35
131291927
ref: 35
24T
GEAR, INPUT TOP 24T
€ 25.00
36
131291052
ref: 36
2ND 17T
GEAR,INPUT 2ND&3RD,17
€ 55.00
37
92022118
ref: 37
T=1.2 M/M
WASHER,18.5X23X1.2
€ 3.00
38
131291053
ref: 38
22T
GEAR,INPUT 4TH,16T
€ 23.50
39
13127032
ref: 39
12T
SHAFT,DRIVE
€ 76.00
40
13075004
ref: 40
16T
GEAR-SPUR,KICKSTARTER
€ 40.50
