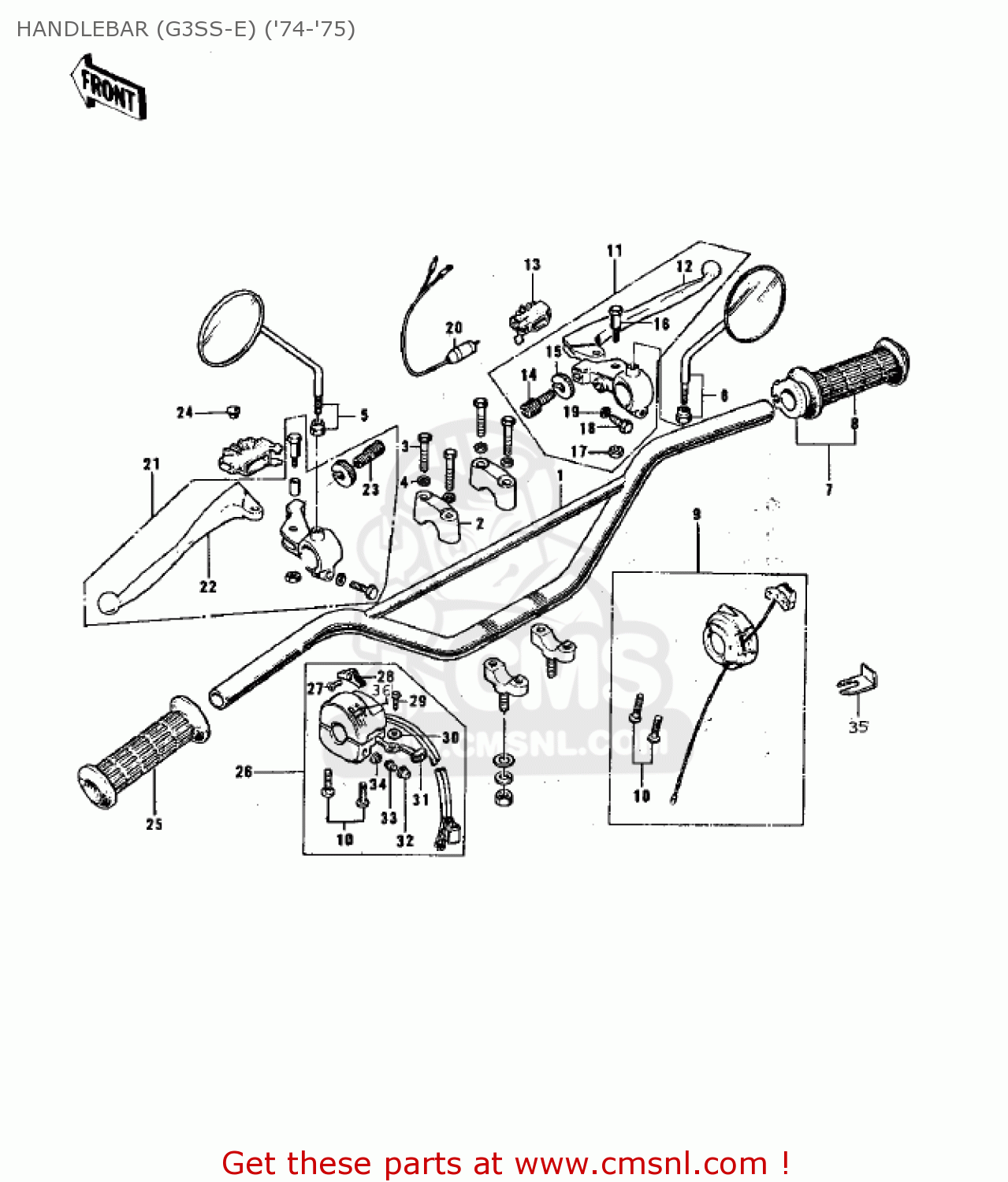

HANDLEBAR (G3SS-E) ('74-'75)

ref

part #

description

quantity

1

46003035
ref: 1

HANDLEBAR

€ 92.00

2

46012004
ref: 2

HOLDER-UPPER HANDLBAR

€ 14.00

3

920011405
ref: 3

BOLT,8X38

€ 10.00

4

461F0800
ref: 4

WASHER-SPRING,8MM

€ 0.50

5

56003009
ref: 5

MIRROR-ASSY,LH

€ 50.00

6

56002020
ref: 6

MIRROR-ASSY,RH

€ 47.50

7

46019034
ref: 7

GRIP ASSY,THROTTLE

€ 29.00

8

46061013
ref: 8

RUBBER-R.H GRIP

€ 9.50

9

46018036
ref: 9

CASE ASSY,R.H

€ 128.50

10

220B0525
ref: 10

SCREW-PAN-CROS,5X25

€ 2.50

11

46021029
ref: 11

LEVER ASSY,FRNT BRAKE

€ 34.00

12

46058004
ref: 12

LEVER-GRIP,FRONT BRAK

€ 24.00

13

46071002
ref: 13

DUST COVER

€ 12.50

14

46055010
ref: 14

SCREW,CABLE ADJUST

€ 21.00

15

46056005
ref: 15

NUT-LOCK

€ 6.00

16

92007046
ref: 16

BOLT,HEX HEAD,5X22

€ 4.50

17

92019014
ref: 17

NUT-LOCK,5M/M

€ 2.50

18

112G0625
ref: 18

BOLT-UPSET,6X25

€ 4.00

19

410B0600
ref: 19

WASHER-PLAIN-SMALL,6M

€ 0.50

20

27021004
ref: 20

SWITCH,FR BRAKE LAMP

€ 23.00

21

46076044
ref: 21

LEVER-ASSY-GRIP,CLUTC

€ 48.00

22

46092015
ref: 22

LEVER-GRIP,CLUTCH

€ 11.50

23

46055009
ref: 23

SCREW,CABLE ASJUST

€ 13.00

24

92102009
ref: 24

CAP-RR VIEW MIRROR

€ 3.00

25

46075019
ref: 25

RUBBER-L.H GRIP

€ 6.00

26

46091048
ref: 26

CASE ASSEMBLY,LH

€ 108.50

?

99990531
ref: ?
Includes items 27 an

DIMMER SWITCH KIT B

€ 1.00

27

221B0308A
ref: 27

SCREW-CNTSNK HD,3X8

€ 2.50

28

46044011
ref: 28

KNOB-L.H SWITCH

€ 6.00

29

220B0305A
ref: 29

SCREW-PAN HEAD,3X5

€ 1.00

30

92095010
ref: 30

WASHER

€ 2.50

31

46044010
ref: 31

KNOB-SWITCH

€ 6.00

32

270101009
ref: 32

SWITCH ASSY,HORN BUTN

€ 5.50

33

270101009
ref: 33

SWITCH ASSY,HORN BUTN

€ 5.50

34

270101009
ref: 34

SWITCH ASSY,HORN BUTN

€ 5.50

35

46089015
ref: 35

SWITCH ASSEMBLY,LH

€ 33.50

36

46037023
ref: 36

HOLDER,CONTROL CABLE

€ 4.50

all assemblies
