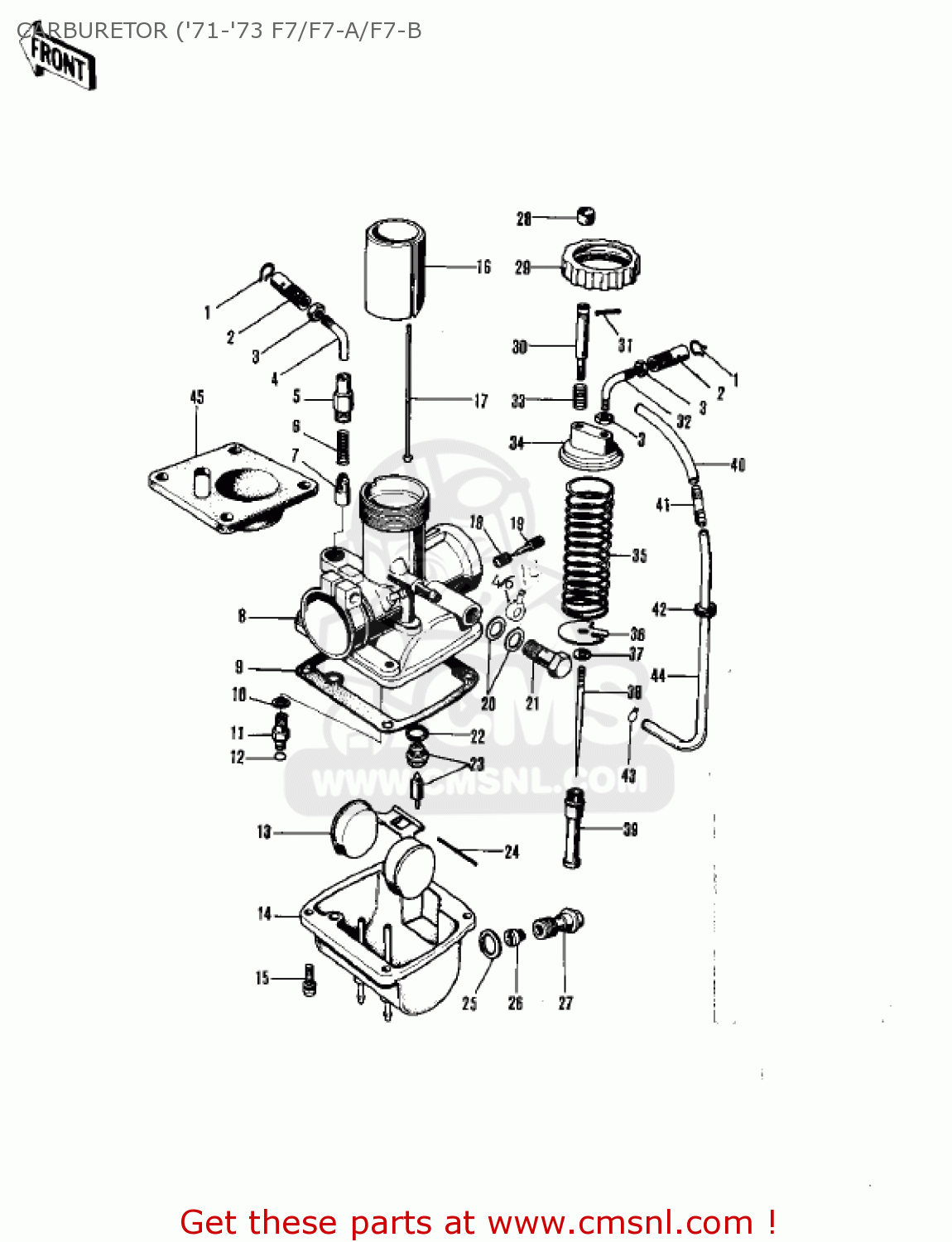

CARBURETOR ('71-'73 F7/F7-A/F7-B

ref

part #

description

quantity

1

92036018
ref: 1

CIRCLIP

€ 2.50

2

16002007
ref: 2

ADJUSTER-CABLE,THROTT

€ 7.50

?

16001211
ref: ?
Includes items 3 - 3

CARBURETOR ASSEMBLY

€ 605.00

3

16003004
ref: 3

NUT-CABLE ADJUST LOCK

€ 4.50

4

16077005
ref: 4

CABLE GUIDE

€ 3.50

5

16012014
ref: 5

CAP-STARTER PLUNGER

€ 3.00

6

16013003
ref: 6

SPRING-STARTER PLUNG

€ 4.00

7

16016002
ref: 7

PLUNGER,STARTER

€ 20.00

9

16019013
ref: 9

GASKET-FLOAT CHAMBER (NAS)

€ 16.50

10

16034001
ref: 10

WASHER-MAIN JET

€ 2.50

11

16065008
ref: 11

HOLDER,JET NEEDLE

€ 12.00

12

92055044
ref: 12

'O' RING

€ 7.00

13

16031016
ref: 13

FLOAT

€ 88.00

15

16033009
ref: 15

SCREW-FLOAT CHAMBER

€ 0.50

16

16025069
ref: 16
CA 2.5

VALVE,THROTTLE CA2.5

€ 42.50

17

16024009
ref: 17

ROD-THROTTLE VLV STOP

€ 4.00

18

16022007
ref: 18

SPRING-THR STOP SCREW

€ 5.50

19

16014002
ref: 19

SCREW-PILOT AIR

€ 11.00

20

92065078
ref: 20

GASKET-BANJO BOLT (NAS)

€ 1.00

20

751P0800
ref: 20

GASKET,8MM

€ 1.00

21

92001014
ref: 21

BOLT-BANJO

€ 11.50

22

16029004
ref: 22

WASHER-FLOAT VLV SEAT

€ 2.50

23

16030005
ref: 23
#2.5

VALVE-FLOAT,2.5

€ 43.00

23

16030025
ref: 23
#2.0

VALVE-FLOAT,#2.6

€ 82.00

24

16032003
ref: 24

FLOAT PIN

€ 4.00

25

16034005
ref: 25
ASBESTOS

WASHER,BANJO BOLT (MCA)

€ 3.00

26

920631042
ref: 26
S.T.D.

JET-MAIN,#A105R

€ 10.50

26

92063073
ref: 26
OPTION

JET-MAIN,#107.5R

€ 9.50

26

920631038
ref: 26
OPTION

JET-MAIN,#A110

€ 10.50

26

920631028
ref: 26
OPTION

JET-MAIN,#A102.5R

€ 10.00

26

920631033
ref: 26
OPTION

JET-MAIN,#A100R

€ 17.00

27

92001097
ref: 27

BOLT-BANJO

€ 15.50

28

16037002
ref: 28

CAP,PILOT SCREW

€ 4.50

29

16004011
ref: 29

CAP-MIXING CHAMBER

€ 6.00

30

16021010
ref: 30

SCREW-THROTTLE STOP

€ 12.00

31

550D1210
ref: 31

PIN-COTTER,1.2X10

€ 1.50

32

16077001
ref: 32

GUIDE,CABLE

€ 6.50

33

16022008
ref: 33

SPRING-THR STOP SCREW

€ 1.50

34

16005020
ref: 34

TOP-MIXING CHAMBER

€ 6.50

35

16006014
ref: 35

SPRING-THROTTLE VALVE

€ 10.00

36

16007024
ref: 36

SPRING SEAT,THRTL VL

€ 5.50

37

16008010
ref: 37

CLAMP,E-TYPE

€ 5.00

38

16009040
ref: 38
4EJ3

NEEDLE-JET,4EJ3

€ 28.00

39

16017048
ref: 39
0-2

JET,NEEDLE,#0-2

€ 74.50

40

92059002
ref: 40

PIPE-OIL TANK

€ 22.00

41

92005003
ref: 41

NIPPLE

€ 2.00

42

92071038
ref: 42

GROMMET,PIPE

€ 2.50

43

92037010
ref: 43

CLAMP-FUEL PIPE

€ 2.50

44

92059065
ref: 44

PIPE

€ 22.00

45

14038027
ref: 45

CAP-CARBURETOR

€ 6.50

46

92061019
ref: 46

CONNECTOR,BANJO

€ 9.50
