AIR CLEANER/MUFFLER ('74-'75 F7-
F7B 1973 USA

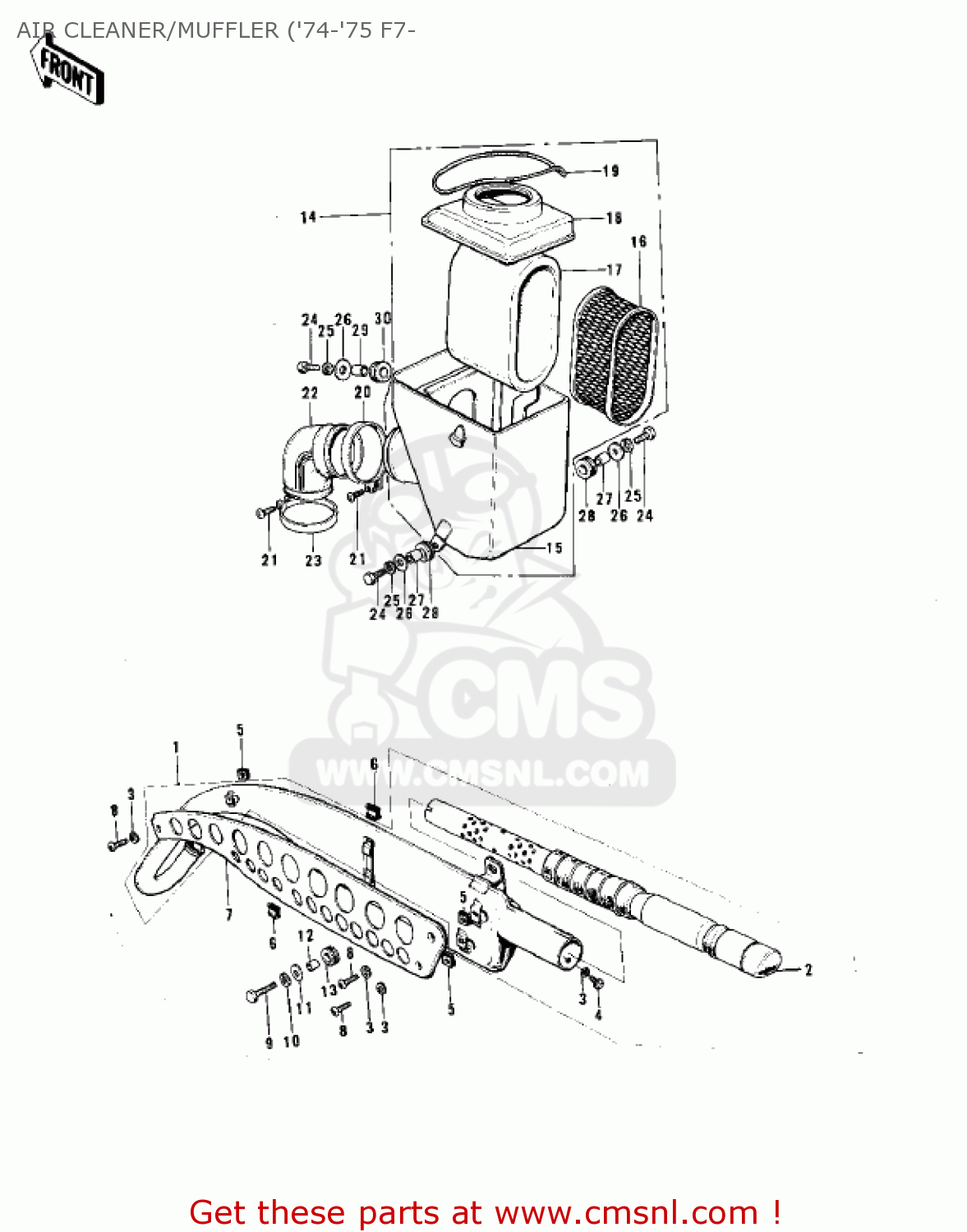

Air cleaner/muffler ('74-'75 f7- diagram F7B 1973 USA
AIR CLEANER/MUFFLER ('74-'75 F7- F7B 1973 USA
×
prices are in EUR
ref
part #
description
quantity
1
18001106
ref: 1
MUFFLER ASSEMBLY
€ 390.50
2
18033073
ref: 2
BAFFLE TUBE
€ 52.00
3
463H0600
ref: 3
WASHER-LOCK,6MM
€ 0.50
4
112G0612
ref: 4
BOLT-UPSET
€ 2.50
5
18065009
ref: 5
INSULATOR,HEAT
€ 3.00
6
18065007
ref: 6
INSULATOR,HEAT
€ 3.00
7
18064005
ref: 7
COVER-MUFFLER
€ 31.00
8
220E0612
ref: 8
SCREW-PAN HEAD,6X12
€ 3.00
9
114G0828
ref: 9
BOLT-SMALL,8X28
€ 2.50
10
461F0800
ref: 10
WASHER-SPRING,8MM
€ 0.50
11
920221564
ref: 11
WASHER
€ 2.50
12
92027102
ref: 12
COLLAR
€ 1.00
13
18063005
ref: 13
DAMPER,MUFFLER
€ 3.00
14
11010061
ref: 14
AIR CLEANER ASSY
€ 74.50
15
11011024
ref: 15
BODY-AIR CLEANER
€ 18.00
16
11014007
ref: 16
HOLDER-CLENER ELEMENT
€ 10.00
17
11013036
ref: 17
ELEMENT-AIR CLEANER
€ 18.00
18
11012028
ref: 18
CAP-AIR CLEANER
€ 23.00
19
671B25100
ref: 19
'O' RING,100MM
€ 6.00
20
92037129
ref: 20
I.D=83
CLAMP,AIR FILTER,ID=7
€ 8.50
21
220C0635
ref: 21
SCREW-PAN-CROS,6X35,B
€ 3.50
22
11026003
ref: 22
CONNECTOR
€ 8.50
23
92037128
ref: 23
I.D.=76
CLAMP,AIR CLEANER
€ 4.00
24
112G0625
ref: 24
BOLT-UPSET,6X25
€ 4.00
25
461F0600
ref: 25
WASHER-SPRING,6MM
€ 0.50
26
92022125
ref: 26
WASHER,6.5X20X1.6
€ 1.00
27
92027120
ref: 27
L=10.5M/M
COLLAR
€ 3.00
28
92071046
ref: 28
L=11.5M/M
GROMMET
€ 3.00
29
92027103
ref: 29
L=6M/M
COLLAR
€ 2.50
30
92075051
ref: 30
L=7M/M
DAMPER RUBBER
€ 2.50
