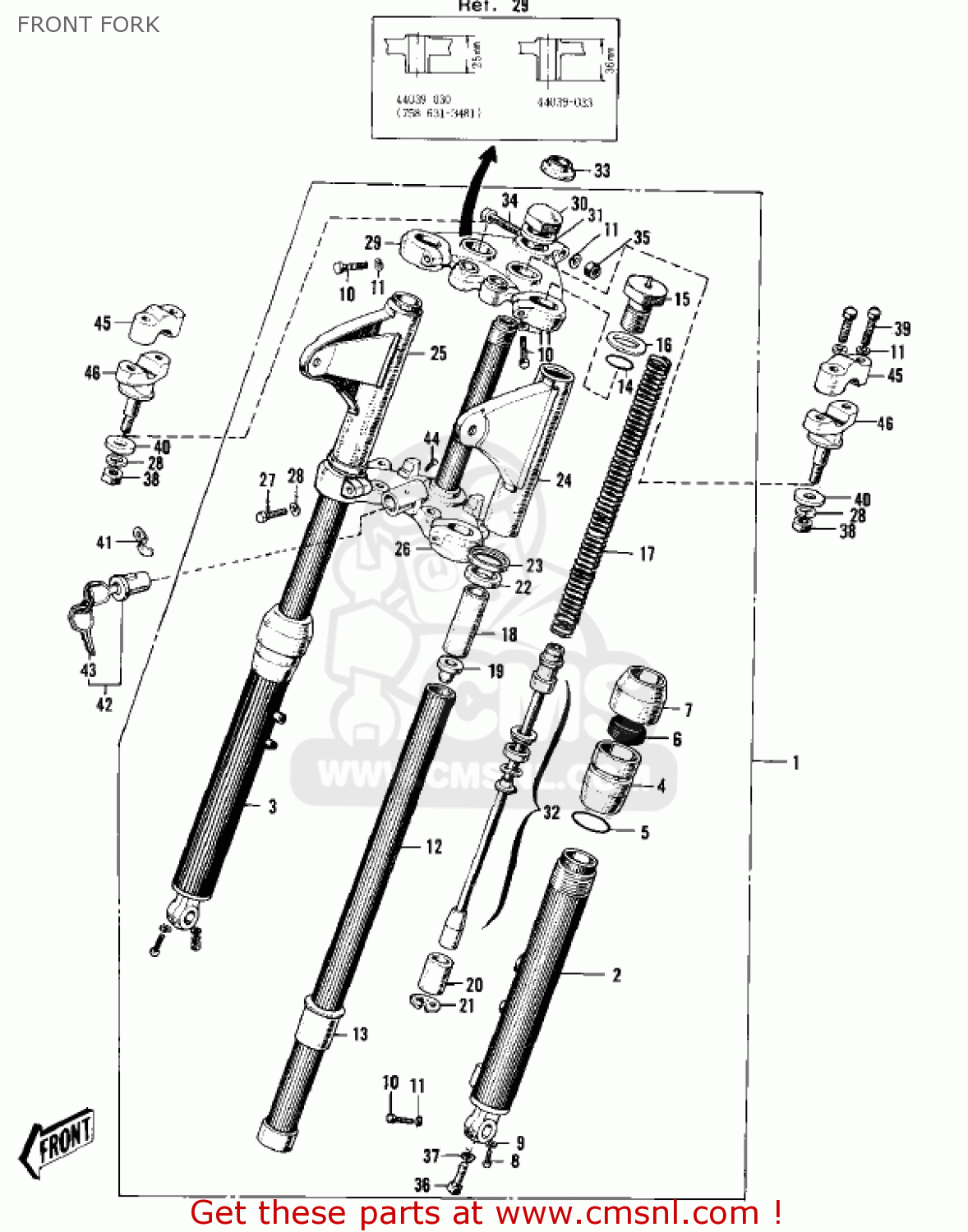

FRONT FORK

ref

part #

description

quantity

1

4400104114
ref: 1
'69

FRONT FORK ASSEMBLY,SILVER

€ 836.00

1

4400106114
ref: 1
'69

UNAVAILABLE IN PRICE BOOK

€ 0.00

1

4400104115
ref: 1
'70

FRONT FORK ASSEMBLY,SILVER

€ 1,181.50

1

4400106115
ref: 1

FRONT FORK ASSEMBLY,SILVER

€ 1,981.00

2

44005027
ref: 2

FORK OUTER TUBE,LH

€ 194.00

3

44006026
ref: 3

FORK OUTER TUBE,RH

€ 216.50

4

44007015
ref: 4

NUT-FORK OUTER TUBE

€ 40.50

5

44046016
ref: 5

'O' RING-OUTER TUBE

€ 4.00

6

44009020
ref: 6

OIL SEAL,FORK

€ 38.00

7

44010014
ref: 7

DUST SHIELD-FORK

€ 14.00

8

220B0408
ref: 8
I.S.O.

SCREW-PAN-CROS

€ 0.50

9

44045002
ref: 9

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

10

115G0830
ref: 10

BOLT-SMALL-UPSET,8X30

€ 3.00

11

461F0800
ref: 11

WASHER-SPRING,8MM

€ 0.50

12

44013020
ref: 12

FORK INNER TUBE

€ 187.00

13

44015011
ref: 13

GUIDE-FORK INNER TUBE

€ 16.50

14

44046015
ref: 14

RING-O,FORK TOP

€ 4.50

15

44041029
ref: 15

BOLT,FORK TOP

€ 79.00

16

44043038
ref: 16

FORK TOP WASHER

€ 3.00

17

44026026
ref: 17

FORK SPRING

€ 49.50

18

44021002
ref: 18

SPRING SPACER

€ 9.50

19

44028017
ref: 19

FORK SPRING,GUIDE

€ 4.50

20

44018003
ref: 20

PISTON-FORK

€ 9.00

21

44044008
ref: 21

CIRCLIP-FORK PISTON

€ 7.00

22

44045029
ref: 22

GASKET-FORK COVER (NAS)

€ 3.50

23

44043034
ref: 23

WASHER-FORK COVER

€ 6.00

24

4403302814
ref: 24
'69

FORK COVER,LH,SILVER

€ 69.50

24

4403302815
ref: 24
'70

FORK COVER,LH,SILVER

€ 62.50

25

4403402714
ref: 25
'69

FORK COVER,RH,SILVER

€ 69.50

25

4403402715
ref: 25
'70

FORK COVER,RH,SILVER

€ 62.50

26

44037028
ref: 26

STEERING STEM

€ 302.00

27

920011252
ref: 27

BOLT,HEX HEAD,10X35

€ 3.50

28

461F1000
ref: 28

WASHER-SPRING,10MM

€ 0.50

29

44039030
ref: 29
INCL. W/44001-041-14

STEERING STEM HEAD

€ 225.00

29

44039033
ref: 29
INCL. W/44001-061-14

STEERING STEM HEAD

€ 269.00

30

44041028
ref: 30

BOLT,STEERING STEM HEAD

€ 20.50

31

44043039
ref: 31

STEERING STEM HEAD WASHER

€ 6.50

32

44022002
ref: 32
LOWER

FORK CYLINDER

€ 213.50

33

92047010
ref: 33

CONE-STERNG BERG LOW

€ 10.00

34

116B0845
ref: 34

BOLT,HEX HEAD,8X45

€ 2.50

35

311B0800
ref: 35

NUT,8MM

€ 0.50

36

44041027
ref: 36

BOLT-FORK CYLINDER

€ 2.50

37

44045030
ref: 37

GASKET,FORK CYLINDER

€ 2.50

38

314B1000
ref: 38

NUT,10MM

€ 0.50

39

920011405
ref: 39

BOLT,8X38

€ 10.00

40

92027081
ref: 40
N/R FOR 44001-061-15

COLLAR

€ 6.50

41

92037022
ref: 41

CLAMP

€ 2.50

42

27016016
ref: 42

STEERING LOCK ASSEMBLY

€ 28.50

43

2700802621
ref: 43

KEY SET,#121

€ 20.50

43

2700802622
ref: 43

KEY SET,#122

€ 18.50

43

2700802623
ref: 43

KEY SET,#123

€ 18.50

43

2700802624
ref: 43

KEY SET,#124

€ 17.00

44

92099001
ref: 44

SCREW RIVET

€ 2.50

45

46012004
ref: 45

HOLDER-UPPER HANDLBAR

€ 14.00

46

46012007
ref: 46

HOLDER-HANDLEBAR LOW

€ 13.50

all assemblies
