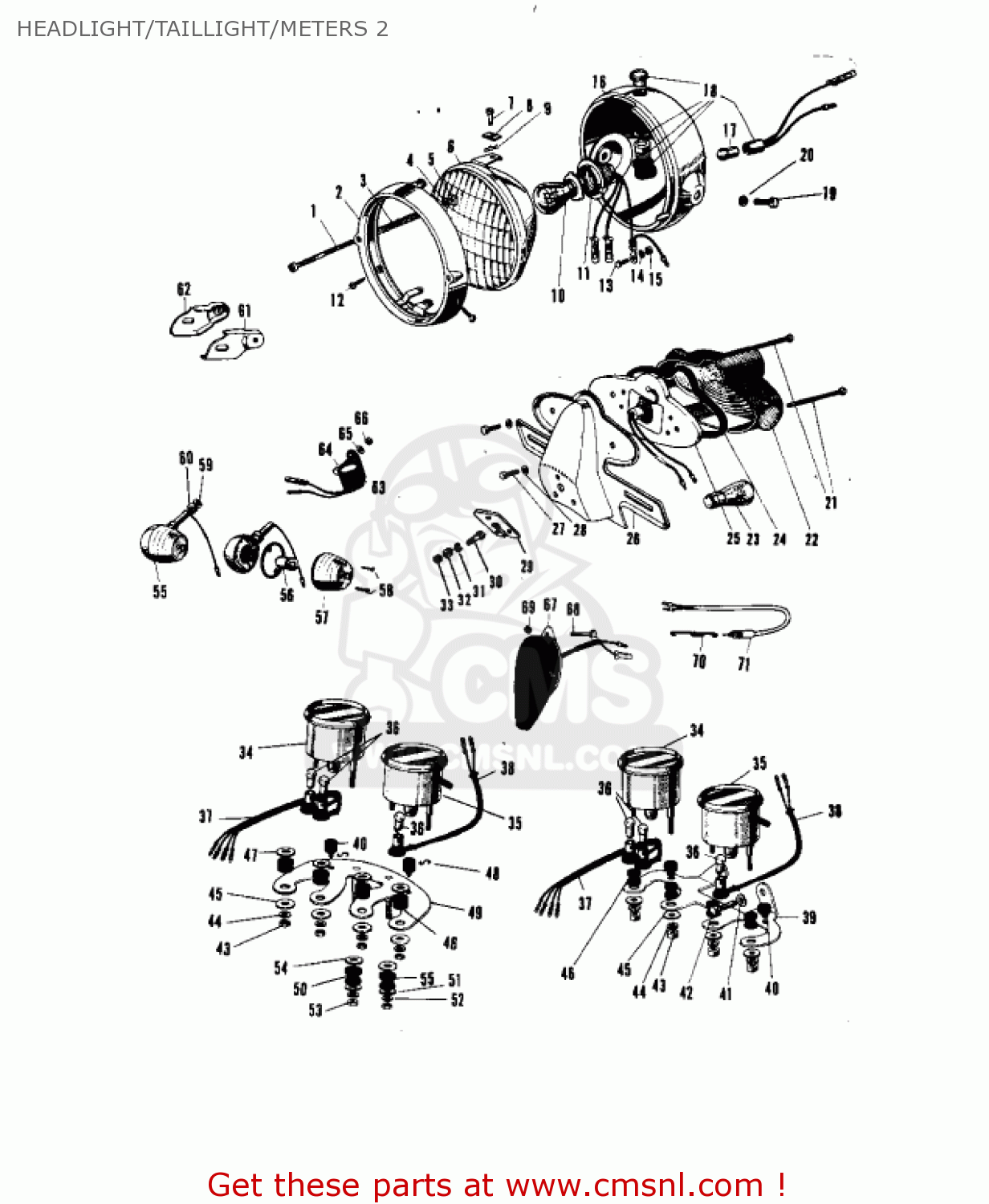

HEADLIGHT/TAILLIGHT/METERS 2

ref

part #

description

quantity

?

23004020
ref: ?
Includes items 1 - 1

LAMP UNIT-HEAD

€ 61.50

1

23019017
ref: 1

SCREW-FOCUS ADJUST

€ 1.00

1

23019021
ref: 1
I.S.O. THREAD

SCREW-FORCUS ADJUST

€ 3.00

2

23006017
ref: 2

RIM-HEAD LAMP

€ 27.00

3

23014005
ref: 3

SPRING-FOCUS ADJUST

€ 2.50

4

23021004
ref: 4

WASHER,4.1X8X0.8

€ 2.00

5

23020010
ref: 5

NUT

€ 0.50

5

23020016
ref: 5
I.S.O. THREAD

NUT

€ 2.00

6

23007013
ref: 6

LENS UNIT-HEAD LAMP

€ 21.00

7

23019018
ref: 7

SCREW-LENS UNIT FITT

€ 2.00

8

23020009
ref: 8

NUT,LENS UNIT FITTING

€ 2.50

9

23022001
ref: 9

PIN

€ 2.50

10

92069037
ref: 10

BULB 12V 35/25W

€ 10.00

11

23008011
ref: 11

SOCKET-HEAD LAMP

€ 4.50

12

222E0510
ref: 12

SCREW-OVL CNTSNK,5X10

€ 2.00

12

222E0510
ref: 12
I.S.O. THREAD

SCREW-OVL CNTSNK,5X10

€ 2.00

13

211B0306
ref: 13

SCREW-PAN HEAD,3X6

€ 0.50

13

220B0306
ref: 13
I.S.O. THREAD

SCREW-PAN-CROS

€ 0.50

14

461F0300
ref: 14

WASHER-SPRING,3MM

€ 0.50

15

311B0300
ref: 15

NUT-HEX

€ 0.50

15

311B0300
ref: 15
I.S.O. THREAD

NUT-HEX

€ 0.50

16

2300501821
ref: 16
BLACK

BODY-HEAD LAMP,F BLK

€ 62.50

16

23005023
ref: 16
CHROME

BODY-HEAD LAMP

€ 63.00

17

92069017
ref: 17

BULB 12V 1.5W

€ 4.00

18

23016002
ref: 18

LAMP ASSY-HIGH BEAM

€ 5.50

19

92007045
ref: 19

BOLT, HEX HEAD, 10X25

€ 6.00

20

461F1000
ref: 20

WASHER-SPRING,10MM

€ 0.50

?

23025027
ref: ?
Includes items 21 -

LAMP ASSY, TAIL

€ 43.50

?

2302502910
ref: ?
Includes items 21 -

LAMP ASSY-TAIL

€ 43.50

21

220E0450
ref: 21

SCREW-PAN HEAD,4X50

€ 3.00

21

220E0450
ref: 21
I.S.O. THREAD

SCREW-PAN HEAD,4X50

€ 3.00

22

23026010
ref: 22

LENS,TAIL LAMP

€ 64.50

23

92069059
ref: 23

BULB,12V 32/3CP

€ 5.50

24

23028008
ref: 24

GASKET-TAIL LAMP (NAS)

€ 4.00

25

23027009
ref: 25

SOCKET-TAIL LAMP

€ 18.00

26

23036002
ref: 26

BKT-LICENSE PLT

€ 25.50

26

2303600710
ref: 26
USE FOR 23025-029-10

BKT-LICENSE PLT,BLACK

€ 33.00

27

110N0510
ref: 27

BOLT-HEX HEAD,5X10

€ 0.50

27

110N0510A
ref: 27
I.S.O. THREAD

BOLT-HEX HEAD,5X10

€ 2.00

28

461F0500
ref: 28

WASHER-SPRING,5MM

€ 0.50

29

35039005
ref: 29

DAMPER,TAIL LAMP

€ 6.50

30

112G0630
ref: 30

BOLT-UPSET

€ 1.00

31

461F0600
ref: 31

WASHER-SPRING,6MM

€ 0.50

32

311B0600
ref: 32

NUT,6MM

€ 0.50

33

312B0600
ref: 33

NUT,6MM

€ 0.50

?

25015002
ref: ?
Includes items 34 an

TACHOMETER ASSY

€ 67.00

?

25005027
ref: ?
Includes items 35 an

SPEEDOMETER ASSY MPH

€ 133.50

36

92069018
ref: 36

BULB 12V 3W

€ 4.00

37

25011002
ref: 37

SOCKET-TACHOMETER

€ 14.50

38

25011003
ref: 38

SOCKET-SPEEDOMETER

€ 17.50

39

25008006
ref: 39

BRACKET-SPEEDOMETER

€ 8.50

40

92075035
ref: 40

DAMPER

€ 3.00

41

461F0800
ref: 41

WASHER-SPRING,8MM

€ 0.50

42

116B0816
ref: 42

BOLT-HEX HEAD,8X16

€ 0.50

43

311B0500
ref: 43

NUT-HEX

€ 0.50

43

311B0500
ref: 43
I.S.O. THREAD

NUT-HEX

€ 0.50

44

461F0500
ref: 44

WASHER-SPRING,5MM

€ 0.50

45

92022104
ref: 45

WASHER-SPEEDMETR FIT

€ 2.50

46

92075034
ref: 46

DAMPER RUBB-SPEEDMETR

€ 0.50

47

411B0800
ref: 47

WASHER-PLAIN,8MM

€ 0.50

48

25022002
ref: 48

CLAMP-CABLE

€ 3.50

49

25008009
ref: 49

BRACKET-SPEEDOMETER

€ 41.00

50

92075024
ref: 50

DAMPER

€ 2.50

51

92022125
ref: 51

WASHER,6.5X20X1.6

€ 1.00

52

461F0600
ref: 52

WASHER-SPRING,6MM

€ 0.50

53

311B0600
ref: 53

NUT,6MM

€ 0.50

54

411B0800
ref: 54

WASHER-PLAIN,8MM

€ 0.50

55

23040020
ref: 55

LAMP-SIGNAL

€ 65.00

56

92069043
ref: 56

BULB 12V 8W

€ 3.50

57

23048011
ref: 57

LENS-SIGNAL LAMP

€ 15.50

58

222B0315A
ref: 58
I.S.O. THREAD

SCREW-OVL CNTSNK,3X15

€ 2.50

59

461F1000
ref: 59

WASHER-SPRING,10MM

€ 0.50

60

315B1000
ref: 60

NUT,10MM

€ 0.50

61

23051010
ref: 61

BRACKET-RR TRN SIG L

€ 14.50

62

23051009
ref: 62

BRACKET-RR TRN SIG R

€ 5.50

63

27002008
ref: 63

RELAY-TURN SIGNAL

€ 17.00

64

112G0616
ref: 64

BOLT UPSET,6X16

€ 1.00

65

411B0600
ref: 65

WASHER-PLAIN,6MM

€ 0.50

66

311B0600
ref: 66

NUT,6MM

€ 0.50

67

27003012
ref: 67

HORN

€ 19.50

68

115G0818
ref: 68

BOLT SMALL-UPSET

€ 2.50

69

461F0800
ref: 69

WASHER-SPRING,8MM

€ 0.50

70

27011009
ref: 70

SPRING-BRAKE LAMP SW

€ 4.50

71

27010006
ref: 71

SWITCH,BRAKE LAMP

€ 28.50
