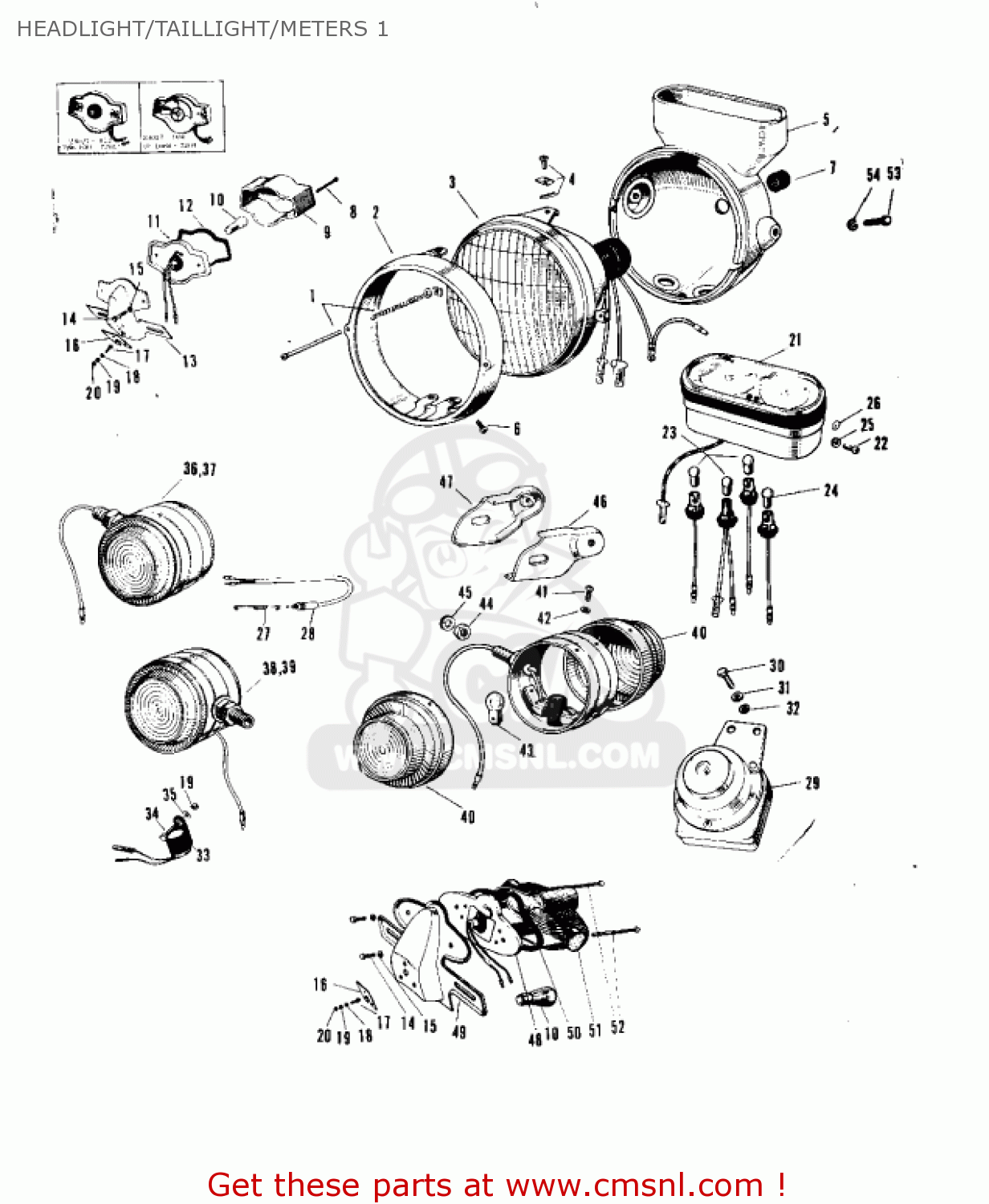

HEADLIGHT/TAILLIGHT/METERS 1

ref

part #

description

quantity

?

2300102124
ref: ?
Includes items 1 - 7

HEADLAMP ASSEMBLY,CANDYTONE RED

€ 194.00

?

2300102127
ref: ?
Includes items 1 - 7

HEADLAMP ASSEMBLY,CANDYTONE BLUE

€ 194.00

1

23013002
ref: 1

FOCUS ADJUSTING SET SCREW

€ 6.50

2

23006017
ref: 2

RIM-HEAD LAMP

€ 27.00

3

23007025
ref: 3

SEALED BEAM UNIT

€ 88.50

4

23015002
ref: 4

LAMP-ASSY, LICENSE

€ 1.00

5

2300501724
ref: 5
CANDY RED

BODY-HEAD LAMP,C.RED

€ 47.50

5

2300501727
ref: 5
CANDY BLUE

BODY-HEAD LAMP,C.BLUE

€ 47.50

6

222E0508
ref: 6

SCREW-OVL CNTSNK,5X8

€ 2.00

7

850A1301
ref: 7

GROMMET,13MM

€ 1.00

?

23025019
ref: ?
Includes items 8 - 1

TAIL LAMP ASSEMBLY

€ 89.00

8

222E0360
ref: 8

SCREW-OVL CNTSNK,3X60

€ 3.00

8

222E0508
ref: 8
I.S.O. THREAD

SCREW-OVL CNTSNK,5X8

€ 2.00

9

23026017
ref: 9

LENS,TAIL LAMP

€ 54.00

10

92069059
ref: 10

BULB,12V 32/3CP

€ 5.50

11

23027004
ref: 11
USE 23027-012

SOCKET-TAIL LAMP

€ 9.50

11

23027012
ref: 11

SOCKET-TAIL LAMP

€ 7.00

12

23028007
ref: 12

GASKET-TAIL LAMP LENS (NAS)

€ 3.00

13

23036003
ref: 13

BKT-LICENSE PLT

€ 16.00

14

110N0510
ref: 14

BOLT-HEX HEAD,5X10

€ 0.50

14

110N0510A
ref: 14
I.S.O. THREAD

BOLT-HEX HEAD,5X10

€ 2.00

15

461F0500
ref: 15

WASHER-SPRING,5MM

€ 0.50

16

35039005
ref: 16

DAMPER,TAIL LAMP

€ 6.50

17

112G0618
ref: 17
USE FOR 35039-001

BOLT-UPSET

€ 0.50

17

112G0630
ref: 17
USE FOR 35039-003

BOLT-UPSET

€ 1.00

18

461F0600
ref: 18

WASHER-SPRING,6MM

€ 0.50

19

311B0600
ref: 19

NUT,6MM

€ 0.50

20

312B0600
ref: 20

NUT,6MM

€ 0.50

?

25003007
ref: ?
Includes items 21 -

SPEEDOMETER ASSY MPH

€ 218.50

22

220E0508
ref: 22

SCREW-PAN HEAD,5X8

€ 2.00

23

92069018
ref: 23

BULB 12V 3W

€ 4.00

24

92069017
ref: 24

BULB 12V 1.5W

€ 4.00

25

461F0500
ref: 25

WASHER-SPRING,5MM

€ 0.50

26

410B0500
ref: 26

WASHER-PLAIN-SMALL,5M

€ 0.50

27

27011009
ref: 27

SPRING-BRAKE LAMP SW

€ 4.50

28

27010006
ref: 28

SWITCH,BRAKE LAMP

€ 28.50

29

27003007
ref: 29

HORN

€ 57.00

30

115G0818
ref: 30

BOLT SMALL-UPSET

€ 2.50

31

461F0800
ref: 31

WASHER-SPRING,8MM

€ 0.50

32

311B0800
ref: 32
USE FOR 32002-004

NUT,8MM

€ 0.50

33

27002004
ref: 33
USE 27002-008

RELAY-TURN SIGNAL

€ 16.50

33

27002008
ref: 33

RELAY-TURN SIGNAL

€ 17.00

34

112G0616
ref: 34

BOLT UPSET,6X16

€ 1.00

35

411B0600
ref: 35

WASHER-PLAIN,6MM

€ 0.50

36

23040013
ref: 36

LAMP-FRNT TURN SIG RH

€ 11.50

36

23040013
ref: 36

LAMP-FRNT TURN SIG RH

€ 11.50

37

23042012
ref: 37

LAMP-FRNT TURN SIG LH

€ 13.00

37

23042012
ref: 37

LAMP-FRNT TURN SIG LH

€ 13.00

38

23043011
ref: 38

LAMP-TURN SIGNAL,R.H

€ 10.00

39

23044009
ref: 39

LAMP-REAR TURN SIG LH

€ 10.00

40

23048004
ref: 40

LENS-TURN SIGNAL LAMP

€ 4.50

41

220E0308
ref: 41

SCREW-PAN-CROS,3X8

€ 2.00

42

461F0300
ref: 42

WASHER-SPRING,3MM

€ 0.50

43

92069019
ref: 43

BULB 12V 8W

€ 2.50

44

315B1000
ref: 44

NUT,10MM

€ 0.50

45

461F1000
ref: 45

WASHER-SPRING,10MM

€ 0.50

45

461F1000
ref: 45

WASHER-SPRING,10MM

€ 0.50

46

23051010
ref: 46

BRACKET-RR TRN SIG L

€ 14.50

47

23051009
ref: 47

BRACKET-RR TRN SIG R

€ 5.50

?

23025027
ref: ?
Includes items 10 an

LAMP ASSY, TAIL

€ 43.50

48

23027009
ref: 48

SOCKET-TAIL LAMP

€ 18.00

49

23036002
ref: 49

BKT-LICENSE PLT

€ 25.50

50

23028008
ref: 50

GASKET-TAIL LAMP (NAS)

€ 4.00

51

23026010
ref: 51

LENS,TAIL LAMP

€ 64.50

52

220E0450
ref: 52

SCREW-PAN HEAD,4X50

€ 3.00

52

220E0450
ref: 52
I.S.O. THREAD

SCREW-PAN HEAD,4X50

€ 3.00

53

92007045
ref: 53

BOLT, HEX HEAD, 10X25

€ 6.00

54

461F1000
ref: 54

WASHER-SPRING,10MM

€ 0.50

all assemblies
