IGNITION SWITCH/LOCKS/REFLECTORS

ZX900E2 NINJA ZX9R 2001 USA CALIFORNIA CANADA

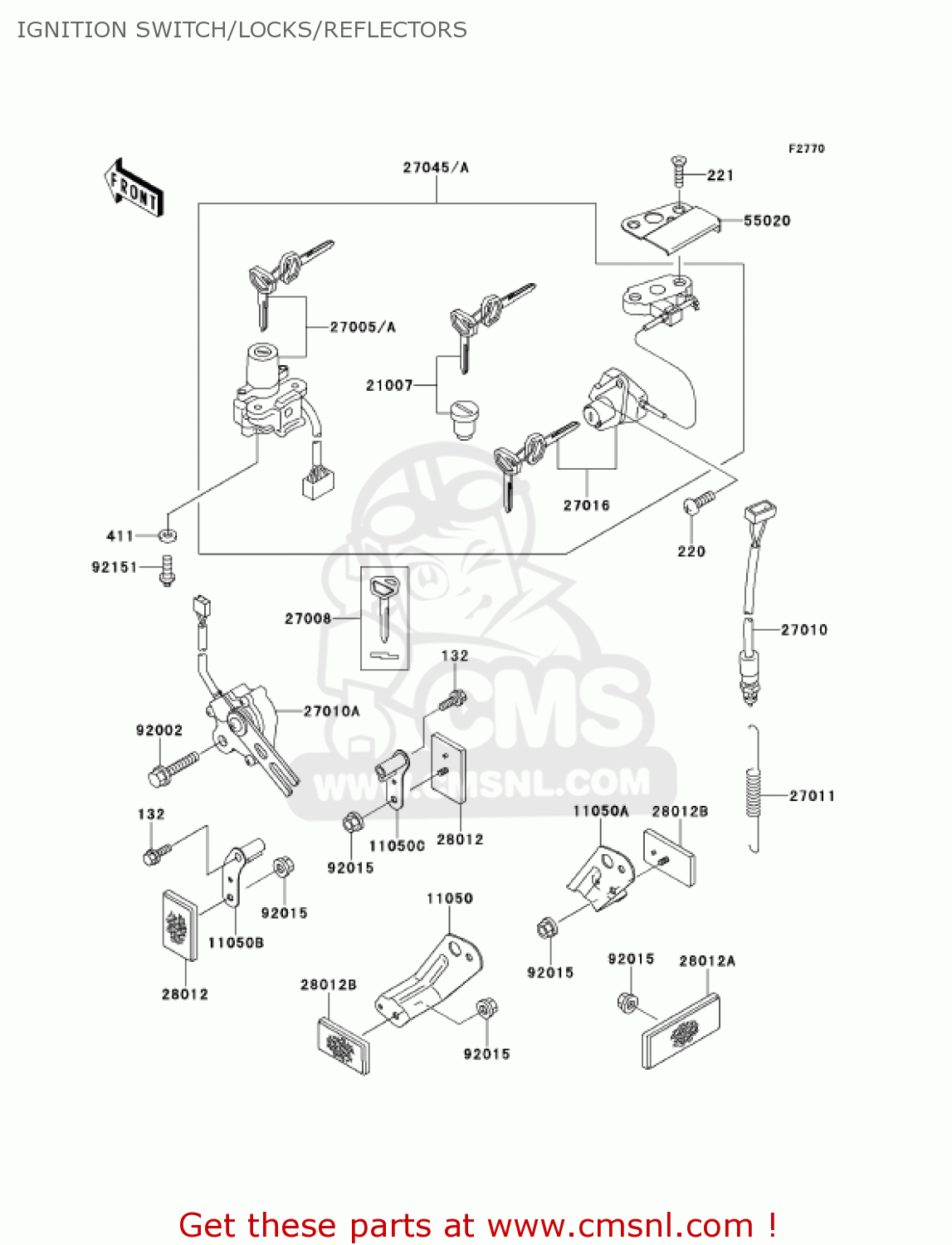

Ignition switch/locks/reflectors diagram ZX900E2 NINJA ZX9R 2001 USA CALIFORNIA CANADA

IGNITION SWITCH/LOCKS/REFLECTORS ZX900E2 NINJA ZX9R 2001 USA CALIFORNIA CANADA
IGNITION SWITCH/LOCKS/REFLECTORS ZX900E2 NINJA ZX9R 2001 USA CALIFORNIA CANADA
IGNITION SWITCH/LOCKS/REFLECTORS ZX900E2 NINJA ZX9R 2001 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
132
132J0635
ref: 132
BOLT-FLANGED-SMALL
132J0635
€ 2.50
220
220C0612
ref: 220
SCREW-PAN-CROS,6X12
220C0612
€ 2.50
221
221B0628
ref: 221
SCREW,CNTRSNK,6X28
221B0628
€ 2.50
411
411E0600
ref: 411
W-PLAIN-S
411E0600
€ 0.50
11050
110501483
ref: 11050
REFLECTOR BRACKET,REAR
110501483
€ 6.00
11050A
110501484
ref: 11050A
REFLECTOR BRACKET,REAR
€ 6.50
11050B
110501849
ref: 11050B
BRACKET,REFLECTOR,FR,
€ 5.00
11050C
110501850
ref: 11050C
BRACKET,REFLECTOR,FR,
€ 5.00
21007
210075035
ref: 21007
ROTOR,LOCK,TANK CAP
210075035
€ 42.00
27005
270051213
ref: 27005
SWITCH-ASSY-IGNITION
€ 243.00
27008
270081170
ref: 27008
(OPTION)
KEY-LOCK,BLANK
270081170
€ 12.50
27010
270101152
ref: 27010
SWITCH,BRAKE LAMP
270101152
€ 20.00
27010A
270101344
ref: 27010A
SWITCH,SIDE STAND
270101344
€ 99.50
27011
27011017
ref: 27011
SPRING,BRK LIGHT SW
27011017
€ 6.50
27016
270165241
ref: 27016
LOCK-ASSY,SEAT
270165241
€ 79.50
27045
270455067
ref: 27045
SWITCH ASSEMBLY
€ 237.50
28012
280121003
ref: 28012
REFLECTOR,REFLEX
280121003
€ 15.00
28012A
280121077
ref: 28012A
REFLECTOR-REFLEX
280121077
€ 16.00
28012B
280121088
ref: 28012B
REFLECTOR-REFLEX
280121088
€ 15.00
55020
550201483
ref: 55020
GUARD,SEAT LOCK
550201483
€ 10.50
92002
920021582
ref: 92002
BOLT,6X25
920021582
€ 3.00
92015
920151259
ref: 92015
NUT,FLANGED,5MM
920151259
€ 2.50
92151
921511911
ref: 92151
BOLT,TORX,6X16
921511911
€ 1.50
