GEAR CHANGE MECHANISM

ZX900E2 NINJA ZX9R 2001 USA CALIFORNIA CANADA

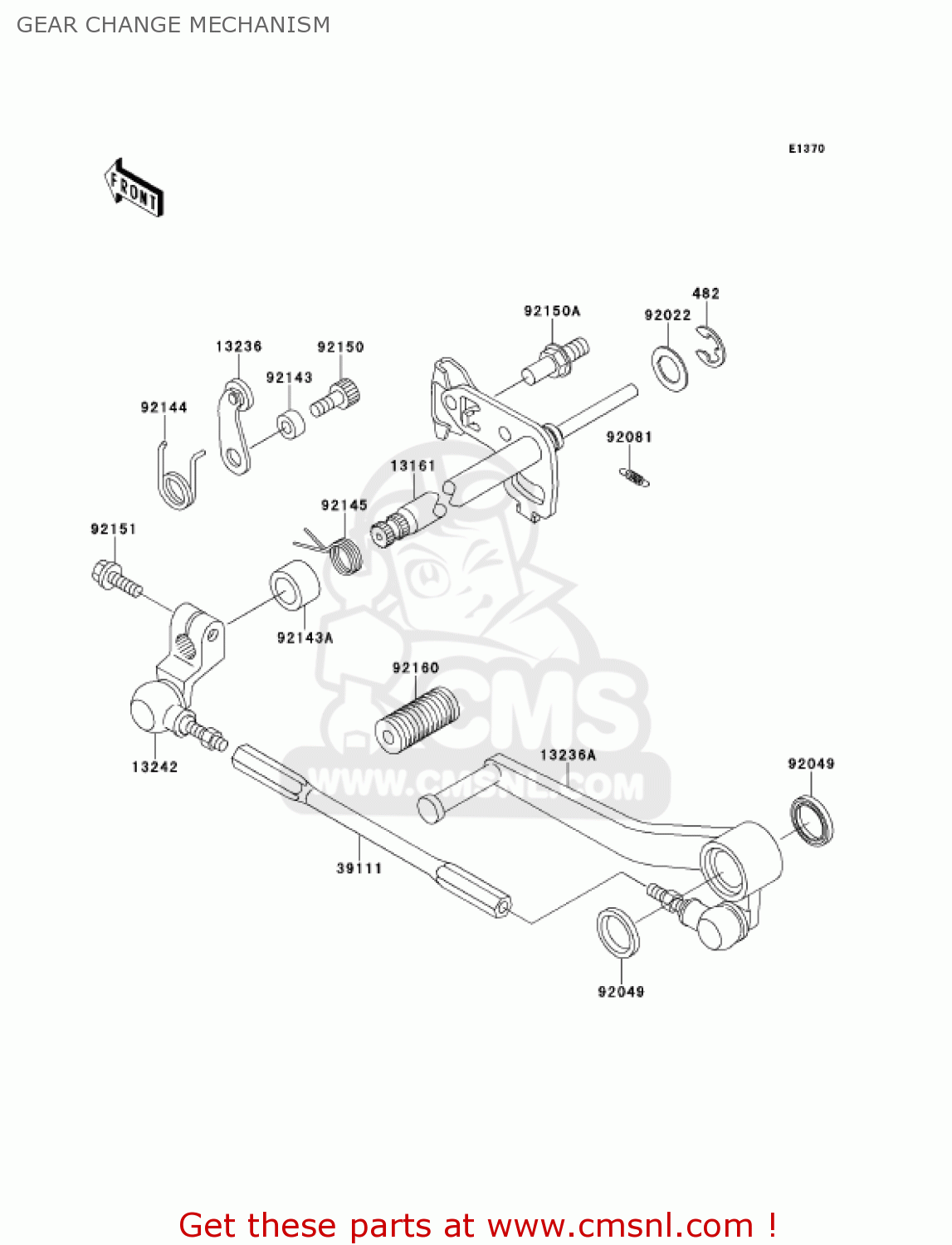

Gear change mechanism diagram ZX900E2 NINJA ZX9R 2001 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

482

482J0200
ref: 482

CIRCLIP-TYPE-E,12MM

€ 2.50

13161

131611246
ref: 13161

LEVER-COMP-CHANGE SHA

€ 59.00

13236

132361243
ref: 13236

LEVER-COMP

€ 13.00

13236A

132361317
ref: 13236A

LEVER-COMP,CHANGE PED

€ 81.00

13242

132421348
ref: 13242

LEVER-ASSY-CHANGE,BOS

€ 37.50

39111

391111157
ref: 39111

ROD-TIE

€ 33.50

92022

920221628
ref: 92022

WASHER,CHANGE SHAFT

€ 4.50

92049

920491492
ref: 92049

SEAL-OIL

€ 6.00

92081

920811708
ref: 92081

SPRING,PAWL RETURN

€ 4.00

92143

921431595
ref: 92143

COLLAR

€ 6.50

92143A

921431733
ref: 92143A

COLLAR,13.2X19.9X12

€ 3.00

92144

921441856
ref: 92144

SPRING

€ 6.50

92145

921451122
ref: 92145

SPRING

€ 6.50

92150

921501737
ref: 92150

BOLT

€ 7.00

92150A

921501869
ref: 92150A

BOLT,RETURN SPRING

€ 7.00

92151

921511226
ref: 92151

BOLT,6X20

€ 1.50

92160

921601036
ref: 92160

DAMPER,CHANGE PEDAL

€ 3.50
