CHASSIS ELECTRICAL EQUIPMENT

ZX900C1 NINJA ZX9R 1998 EUROPE UK FR NL AR FG GR IT NR SD SP

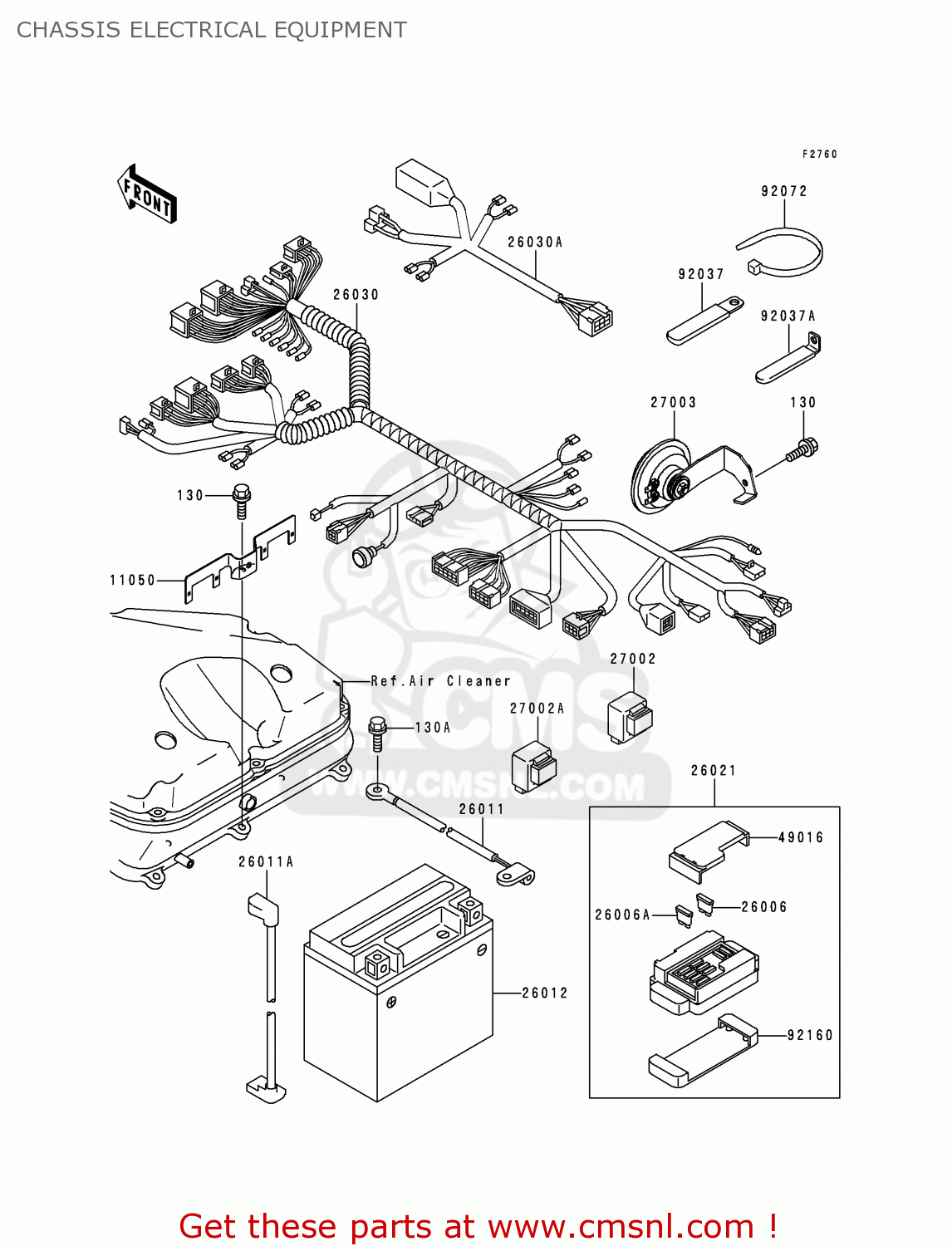

Chassis electrical equipment diagram ZX900C1 NINJA ZX9R 1998 EUROPE UK FR NL AR FG GR IT NR SD SP

prices are in EUR

ref

part #

description

quantity

130

130J0612
ref: 130

BOLT-FLANGED,6X12,BLA

€ 1.50

130A

130V0610
ref: 130A

BOLT-FLANGED,6X10

€ 0.50

11050

110501791
ref: 11050

BRACKET,HARNESS COUPL

€ 9.00

26006

260061067
ref: 26006

FUSE, 30A-G

€ 3.00

26006A

260061068
ref: 26006A

FUSE, 10A-R

€ 3.00

26011

260111690
ref: 26011

WIRE-LEAD,BATTERY(+)

€ 24.50

26011A

260111691
ref: 26011A

WIRE-LEAD,BATTERY(-)

€ 17.50

26012

260121326
ref: 26012

BATTERY,YTX9BS,12V8AH

€ 100.00

26021

260211095
ref: 26021

JUNCTION BOX

€ 135.50

26030

260301521
ref: 26030

HARNESS,MAIN

€ 317.50

26030A

260301522
ref: 26030A

HARNESS,FR

€ 68.00

27002

270021062
ref: 27002

RELAY-ASSY

€ 27.00

27002A

270021101
ref: 27002A

RELAY-ASSY,TURN SIGNA

€ 49.50

27003

270031407
ref: 27003

HORN

€ 55.00

49016

490161177
ref: 49016

COVER-SEAL,FUSE

€ 7.00

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92037A

920371608
ref: 92037A

CLAMP

€ 5.50

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92160

921601650
ref: 92160

DAMPER,JUNCTION BOX

€ 9.50
