CARBURETOR(1/4)

ZX900C1 NINJA ZX9R 1998 EUROPE UK FR NL AR FG GR IT NR SD SP

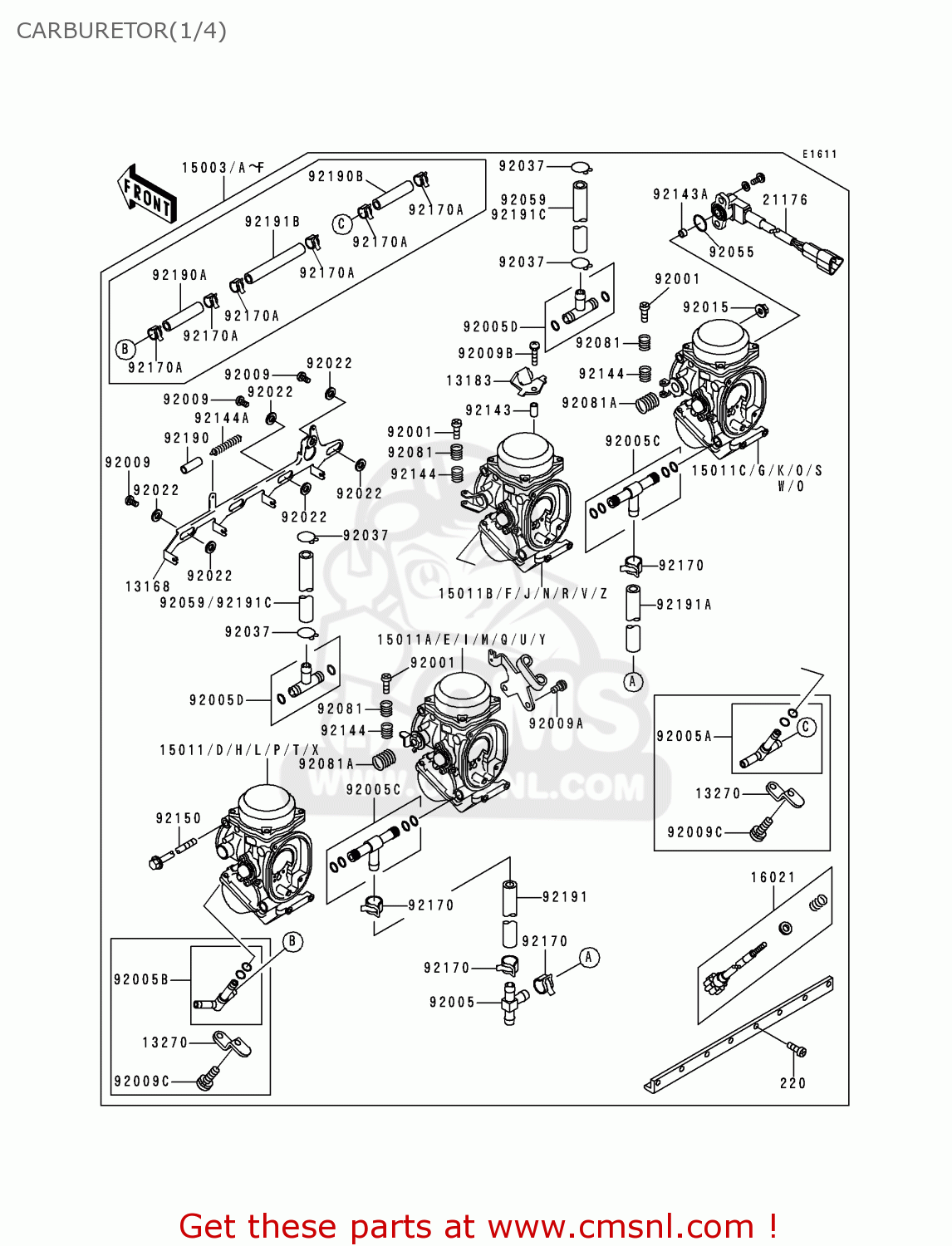

Carburetor(1/4) diagram ZX900C1 NINJA ZX9R 1998 EUROPE UK FR NL AR FG GR IT NR SD SP

CARBURETOR(1/4) ZX900C1 NINJA ZX9R 1998 EUROPE UK FR NL AR FG GR IT NR SD SP
CARBURETOR(1/4) ZX900C1 NINJA ZX9R 1998 EUROPE UK FR NL AR FG GR IT NR SD SP
CARBURETOR(1/4) ZX900C1 NINJA ZX9R 1998 EUROPE UK FR NL AR FG GR IT NR SD SP
prices are in EUR
ref
part #
description
quantity
13168
131681593
ref: 13168
LEVER,STARTER
€ 88.00
13183
131831592
ref: 13183
PLATE,STARTER CABLE
131831592
€ 26.00
13270
132701080
ref: 13270
ARFGFRITNLUK
PLATE,FITTING STAY
132701080
€ 4.50
15003
150031357
ref: 15003
EUGRNRSP
CARBURETOR-ASSY
€ 1,675.00
15003A
150031367
ref: 15003A
ARITNLUK
CARBURETOR-ASSY
€ 1,492.50
15003B
150031368
ref: 15003B
FG
CARBURETOR-ASSY
€ 1,675.00
15003C
150031373
ref: 15003C
FR
CARBURETOR-ASSY
€ 1,675.00
15003D
150031425
ref: 15003D
SD
CARBURETOR-ASSY
€ 1,492.50
15011
150111441
ref: 15011
EUGRNRSP
CARBURETOR,LH,OUTSIDE
€ 740.00
15011A
150111442
ref: 15011A
EUGRNRSP
CARBURETOR,LH,INSIDE
€ 740.00
15011B
150111443
ref: 15011B
EUGRNRSP
CARBURETOR,RH,INSIDE
€ 740.00
15011C
150111444
ref: 15011C
EUGRNRSP
CARBURETOR,RH,OUTSIDE
€ 740.00
15011D
150111449
ref: 15011D
ARITNLUK
CARBURETOR,LH,OUTSIDE
€ 659.50
15011E
150111450
ref: 15011E
ARITNLUK
CARBURETOR,LH,INSIDE
€ 659.50
15011F
150111451
ref: 15011F
ARITNLUK
CARBURETOR,RH,INSIDE
€ 659.50
15011G
150111452
ref: 15011G
ARITNLUK
CARBURETOR,RH,OUTSIDE
€ 740.00
15011H
150111454
ref: 15011H
FG
CARBURETOR,LH,OUTSIDE
€ 1,081.50
15011I
150111455
ref: 15011I
FG
CARBURETOR,LH,INSIDE
€ 1,081.50
15011J
150111456
ref: 15011J
FG
CARBURETOR,RH,INSIDE
€ 1,081.50
15011K
150111457
ref: 15011K
FG
CARBURETOR,RH,OUTSIDE
€ 1,081.50
15011L
150111470
ref: 15011L
FR
CARBURETOR,LH,OUTSIDE
€ 1,081.50
15011M
150111471
ref: 15011M
FR
CARBURETOR,LH,INSIDE
€ 1,081.50
15011N
150111472
ref: 15011N
FR
CARBURETOR,RH,INSIDE
€ 1,081.50
15011O
150111473
ref: 15011O
FR
CARBURETOR,RH,OUTSIDE
€ 1,081.50
15011P
150111474
ref: 15011P
SD
CARBURETOR,LH,OUTSIDE
€ 659.50
15011Q
150111475
ref: 15011Q
SD
CARBURETOR,LH,INSIDE
€ 659.50
15011R
150111476
ref: 15011R
SD
CARBURETOR,RH,INSIDE
€ 659.50
15011S
150111477
ref: 15011S
SD
CARBURETOR,RH,OUTSIDE
€ 659.50
16021
160211220
ref: 16021
SCREW-THROTTLE STOP
€ 65.00
21176
211761073
ref: 21176
SENSOR
211761073
€ 402.00
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
920011998
€ 11.50
92005
920051272
ref: 92005
FITTING,T-TYPE
920051272
€ 15.50
92005A
920051290
ref: 92005A
ARFGFRITNLUK
FITTING
920051290
€ 28.00
92005B
920051291
ref: 92005B
ARFGFRITNLUK
FITTING
920051291
€ 26.50
92005C
920051338
ref: 92005C
FITTING
920051338
€ 17.00
92005D
920051347
ref: 92005D
FITTING
920051347
€ 18.00
92009
920091262
ref: 92009
SCREW
920091262
€ 4.00
92009A
920091597
ref: 92009A
SCREW
920091597
€ 4.50
92009B
920091632
ref: 92009B
SCREW
920091632
€ 4.00
92009C
920091704
ref: 92009C
ARFGFRITNLUK
SCREW
920091704
€ 2.50
92015
920151259
ref: 92015
NUT,FLANGED,5MM
920151259
€ 2.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
920221199
€ 3.00
92037
920371194
ref: 92037
CLAMP,TUBE,TAP DIAPRM
€ 4.00
92055
920551574
ref: 92055
RING-O
920551574
€ 2.50
92059
920591738
ref: 92059
TUBE,7X11X45
€ 17.00
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
920811620
€ 3.00
92081A
920811622
ref: 92081A
SPRING,THROTTLE ADJUS
920811622
€ 6.50
92143
921431265
ref: 92143
COLLAR,4X5.2X9.6
921431265
€ 3.00
92143A
921431907
ref: 92143A
COLLAR
921431907
€ 6.00
92144
921441451
ref: 92144
SPRING
921441451
€ 7.00
92144A
921441518
ref: 92144A
SPRING,STARTER LEVER
921441518
€ 14.50
92150
921501416
ref: 92150
BOLT
921501416
€ 22.00
92170
921701051
ref: 92170
CLAMP,TUBE
921701051
€ 5.50
92170A
921701504
ref: 92170A
ARFGFRITNLUK
CLAMP
921701504
€ 3.00
92190
921901157
ref: 92190
TUBE,STARTER SPRING
€ 4.50
92190A
921901530
ref: 92190A
ARFGFRITNLUK
TUBE,WATER
€ 7.50
220
220D0514
ref: 220
SCREW-PAN-CROS
€ 2.50
92190B
921901531
ref: 92190B
ARFGFRITNLUK
TUBE,WATER
€ 7.50
92191
921911263
ref: 92191
TUBE,7.3X12.5X55
€ 4.00
92191A
921911264
ref: 92191A
TUBE,7.3X12.5X220
€ 13.00
92191B
921911265
ref: 92191B
ARFGFRITNLUK
TUBE
€ 6.00
