TRANSMISSION

ZX900B4 NINJA ZX9R 1997 USA CALIFORNIA CANADA

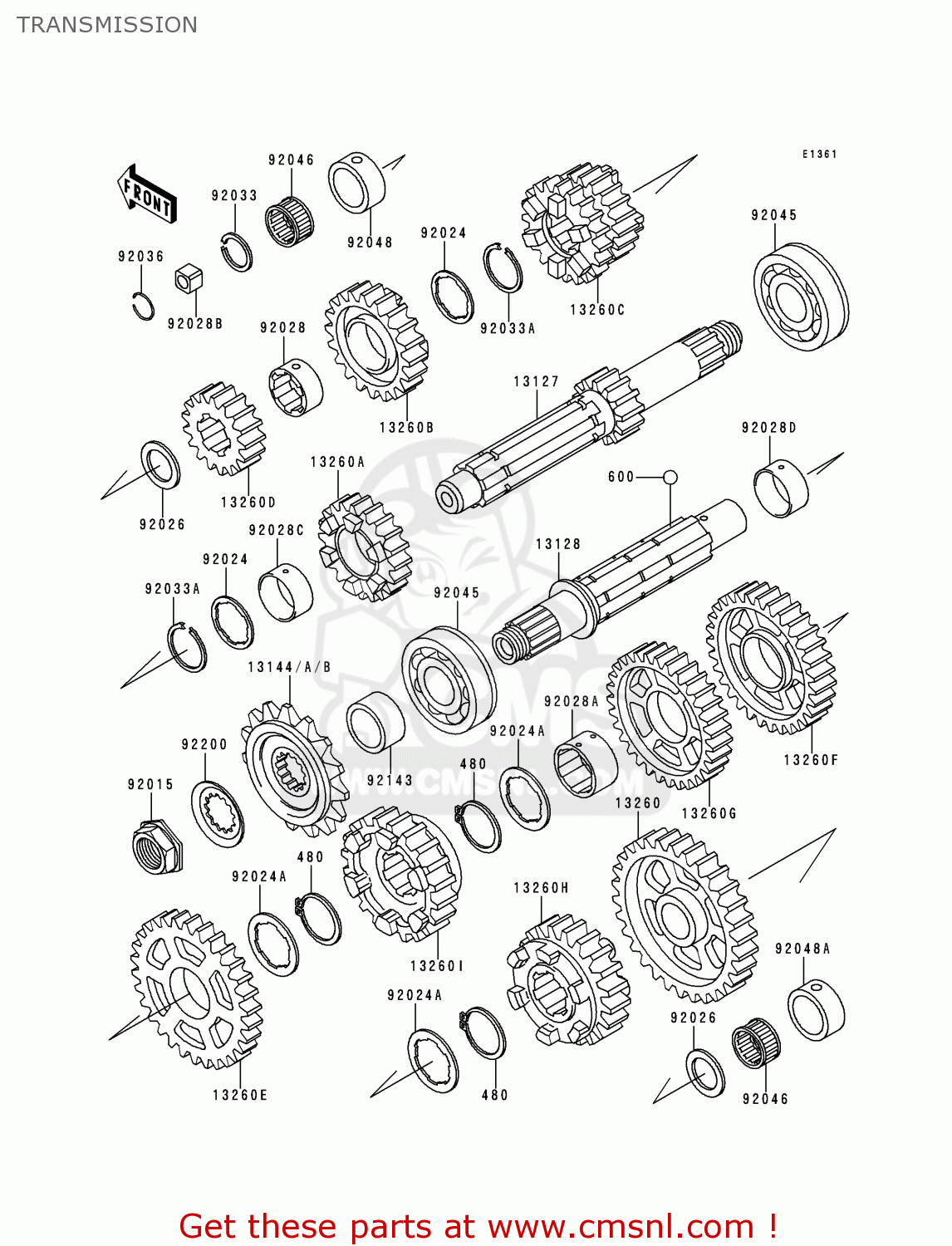

Transmission diagram ZX900B4 NINJA ZX9R 1997 USA CALIFORNIA CANADA

TRANSMISSION ZX900B4 NINJA ZX9R 1997 USA CALIFORNIA CANADA
TRANSMISSION ZX900B4 NINJA ZX9R 1997 USA CALIFORNIA CANADA
TRANSMISSION ZX900B4 NINJA ZX9R 1997 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
480
480J2900
ref: 480
CIRCLIP
480J2900
€ 3.50
600
600A0500
ref: 600
BALL-STEEL,5/32
600A0500
€ 0.50
13127
131271205
ref: 13127
SHAFT-TRANSMISSION IN
131271205
€ 184.50
13128
131281181
ref: 13128
SHAFT-TRANSMISSION OU
€ 152.50
13144
131441009
ref: 13144
SPROCKET-OUTPUT,17T(#
131441009
€ 29.00
13144A
131441117
ref: 13144A
SPROCKET-OUTPUT,15T(#
131441117
€ 24.50
13144B
131441275
ref: 13144B
SPROCKET-OUTPUT,16T
131441275
€ 31.50
13260
132601165
ref: 13260
GEAR,OUTPUT LOW,40T
€ 138.50
13260A
132601400
ref: 13260A
GEAR,INPUT 5TH,27T
€ 114.00
13260B
132601401
ref: 13260B
GEAR,INPUT TOP,29T
€ 129.00
13260C
132601410
ref: 13260C
GEAR,INPUT 3RD&4TH,20
€ 132.50
13260D
132601422
ref: 13260D
GEAR,INPUT 2ND,18T
132601422
€ 117.00
13260E
132601490
ref: 13260E
GEAR,OUTPUT 2ND,37T
€ 101.50
13260F
132601491
ref: 13260F
GEAR,OUTPUT 3RD,33T
€ 114.00
13260G
132601492
ref: 13260G
GEAR,OUTPUT 4TH,32T
132601492
€ 77.00
13260H
132601493
ref: 13260H
GEAR,OUTPUT 5TH,33T
€ 101.50
13260I
132601494
ref: 13260I
GEAR,OUTPUT TOP,32T
132601494
€ 48.00
92015
920151963
ref: 92015
NUT,20MM
920151963
€ 10.50
92024
92024042
ref: 92024
WASHER,TOOTHED,26X35.
92024042
€ 7.50
92024A
92024043
ref: 92024A
WASHER,TOOTHED,30.3X4
92024043
€ 8.00
92026
920261224
ref: 92026
SPACER,22X35.5X2.1
920261224
€ 6.00
92028
920281255
ref: 92028
BUSHING,INPUT TOP GEA
920281255
€ 27.00
92028A
920281363
ref: 92028A
BUSHING,OUTPUT 3RD&4T
920281363
€ 30.50
92028B
920281448
ref: 92028B
BUSHING
920281448
€ 5.50
92028C
920281449
ref: 92028C
BUSHING,INPUT 5TH GEA
920281449
€ 17.50
92028D
920281450
ref: 92028D
BUSHING,OUTPUT 2ND
920281450
€ 16.00
92033
92033025
ref: 92033
CIRCLIP,25MM
92033025
€ 3.00
92033A
920331037
ref: 92033A
SNAP RING,25.9X1.2T
920331037
€ 3.00
92036
92036005
ref: 92036
CIRCLIP-PISTON PIN
92036005
€ 2.50
92045
920451224
ref: 92045
BEARING-BALL,6305N2SH
920451224
€ 40.00
92046
92046031
ref: 92046
BEARING-NEEDLE,FWF-22
92046031
€ 19.50
92048
920481066
ref: 92048
RACE,NEEDLE BEARING
920481066
€ 25.50
92048A
920481067
ref: 92048A
RACE,0RZ30X38X17PX1
920481067
€ 39.00
92143
921431757
ref: 92143
COLLAR,ENGINE SPROCKE
921431757
€ 7.00
92200
922001065
ref: 92200
WASHER
922001065
€ 4.50
