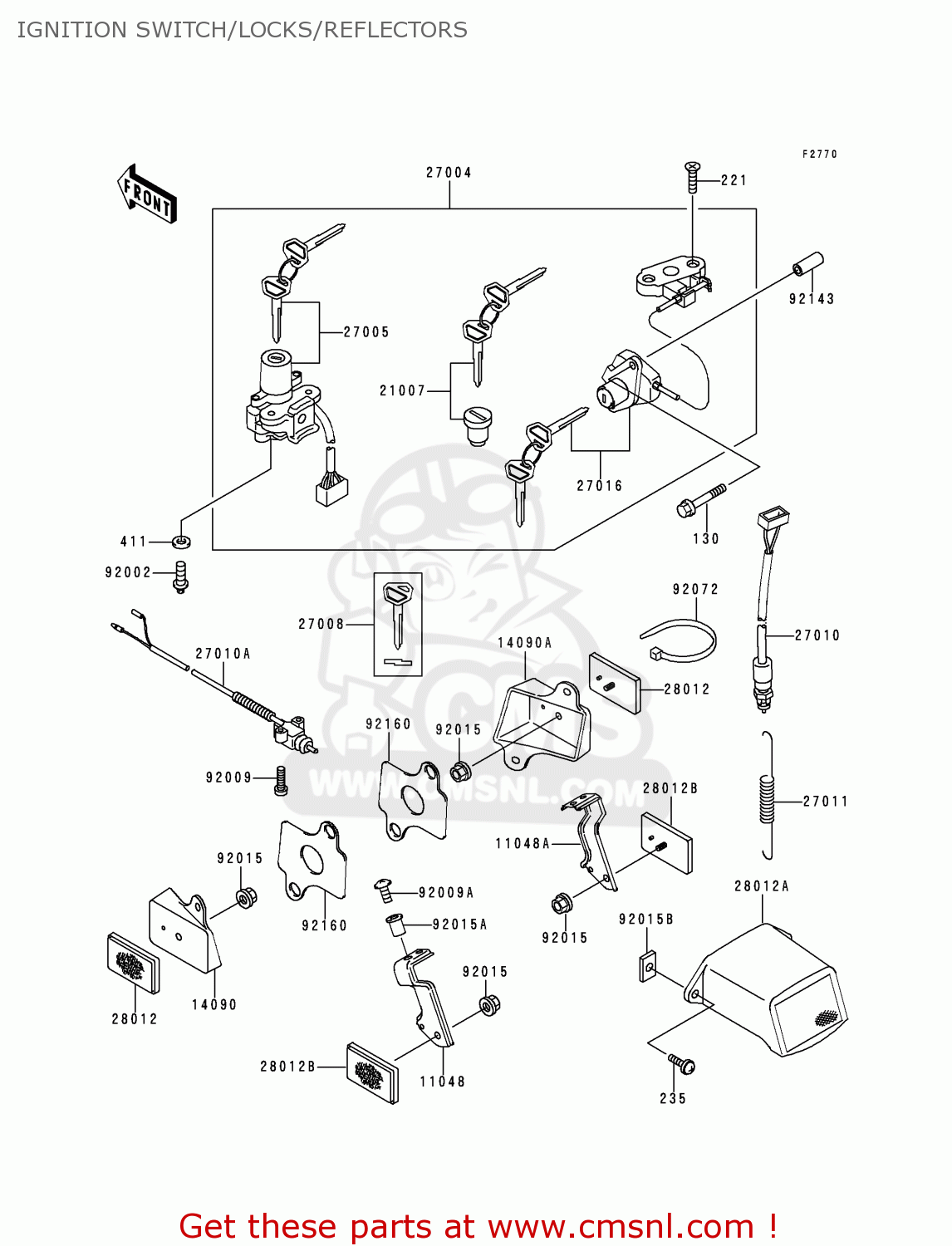

IGNITION SWITCH/LOCKS/REFLECTORS

ref

part #

description

quantity

130

130J0655
ref: 130

BOLT-FLANGED,6X55,BLA

€ 3.00

221

221B0628
ref: 221

SCREW,CNTRSNK,6X28

€ 2.50

235

235C0620
ref: 235

SCREW-PAN-WP-CROS

€ 1.50

411

411E0600
ref: 411

W-PLAIN-S

€ 0.50

11048

110481783
ref: 11048

BRACKET,REFLECTOR,RR,

€ 8.50

11048A

110481784
ref: 11048A

BRACKET,REFLECTOR,RR,

€ 8.50

14090

140901377
ref: 14090

COVER,REFLECTOR,FR,LH

€ 11.50

14090A

140901378
ref: 14090A

COVER,REFLECTOR,FR,RH

€ 11.50

21007

210075035
ref: 21007

ROTOR,LOCK,TANK CAP

€ 42.00

27004

270045473
ref: 27004

SWITCH-ASSY

€ 438.50

27005

270051180
ref: 27005

SWITCH-ASSY-IGNITION

€ 318.50

27008

270081170
ref: 27008

KEY-LOCK,BLANK

€ 12.50

27010

270101093
ref: 27010

SWITCH,BRAKE LAMP

€ 20.00

27010A

270101223
ref: 27010A

SWITCH,SIDE STAND

€ 48.00

27011

27011017
ref: 27011

SPRING,BRK LIGHT SW

€ 6.50

27016

270165219
ref: 27016

LOCK-ASSY,SEAT

€ 51.00

28012

280121003
ref: 28012

REFLECTOR,REFLEX

€ 15.00

28012A

280121066
ref: 28012A

REFLECTOR-REFLEX,RR

€ 23.00

28012B

280121078
ref: 28012B

REFLECTOR-REFLEX,RR

€ 15.00

92002

920021333
ref: 92002

BOLT

€ 1.50

92009

920091459
ref: 92009

SCREW

€ 2.50

92009A

920091654
ref: 92009A

SCREW

€ 0.50

92015

920151259
ref: 92015

NUT,FLANGED,5MM

€ 2.50

92015A

920151757A
ref: 92015A

NUT,5MM

€ 5.00

92015B

920151918
ref: 92015B

NUT

€ 3.00

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92143

921431072
ref: 92143

COLLAR,6.8X10X42

€ 4.50

92160

921601486
ref: 92160

DAMPER,REFLECTOR

€ 6.00
