SWINGARM

ZX900B1 NINJA ZX9R 1994 USA CALIFORNIA CANADA

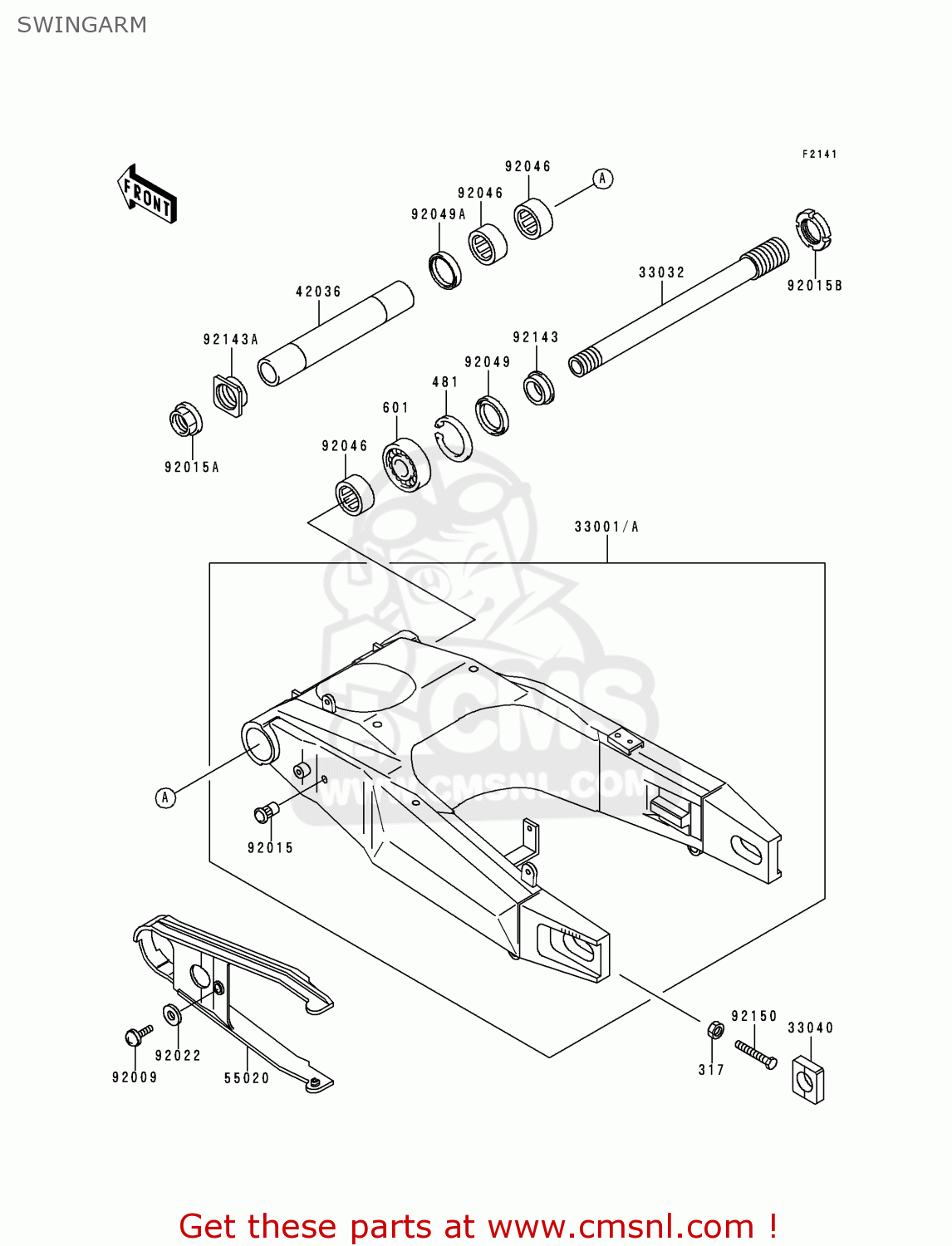

Swingarm diagram ZX900B1 NINJA ZX9R 1994 USA CALIFORNIA CANADA

SWINGARM ZX900B1 NINJA ZX9R 1994 USA CALIFORNIA CANADA
SWINGARM ZX900B1 NINJA ZX9R 1994 USA CALIFORNIA CANADA
SWINGARM ZX900B1 NINJA ZX9R 1994 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
317
317G0800
ref: 317
NUT-HEX-SMALL,8MM
317G0800
€ 0.50
481
481J4700
ref: 481
CIRCLIP,47MM
481J4700
€ 4.00
601
601B6005U
ref: 601
BEARING-BALL,#6005U
601B6005U
€ 25.00
33001
330011445GD
ref: 33001
ARM-COMP-SWING,G.GRAY
€ 981.50
33032
330321173
ref: 33032
SHAFT-SWING ARM
€ 104.00
33040
330401114
ref: 33040
ADJUSTER-CHAIN
330401114
€ 13.50
42036
420361312
ref: 42036
SLEEVE,SWING ARM,L=22
420361312
€ 72.00
55020
550201532
ref: 55020
GUARD,CHAIN
550201532
€ 42.00
92009
920091663
ref: 92009
SCREW
920091663
€ 2.50
92015
920151792
ref: 92015
NUT,POP,6MM,L=16.5
920151792
€ 3.00
92015A
920151845
ref: 92015A
NUT,FLANGED,25MM
920151845
€ 17.00
92015B
920151930
ref: 92015B
NUT,FRAME PIVOT,32MM
920151930
€ 23.00
92022
920221143
ref: 92022
WASHER,6.5X16X1
920221143
€ 2.50
92046
920461205
ref: 92046
BEARING-NEEDLE,BM3520
920461205
€ 29.00
92049
920491381
ref: 92049
SEAL-OIL,MHA 35 47 5
920491381
€ 8.50
92049A
920491419
ref: 92049A
SEAL-OIL,KC 38 45 6
920491419
€ 10.50
92143
921431481
ref: 92143
COLLAR,SWING ARM,L=12
921431481
€ 20.50
92143A
921431681
ref: 92143A
COLLAR,SWING ARM,L=15
921431681
€ 20.00
92150
921501350
ref: 92150
BOLT
921501350
€ 1.50
