Genuine ZX Kawasaki Parts delivered quickly!


CHASSIS ELECTRICAL EQUIPMENT

ZX900B1 NINJA ZX9R 1994 USA CALIFORNIA CANADA

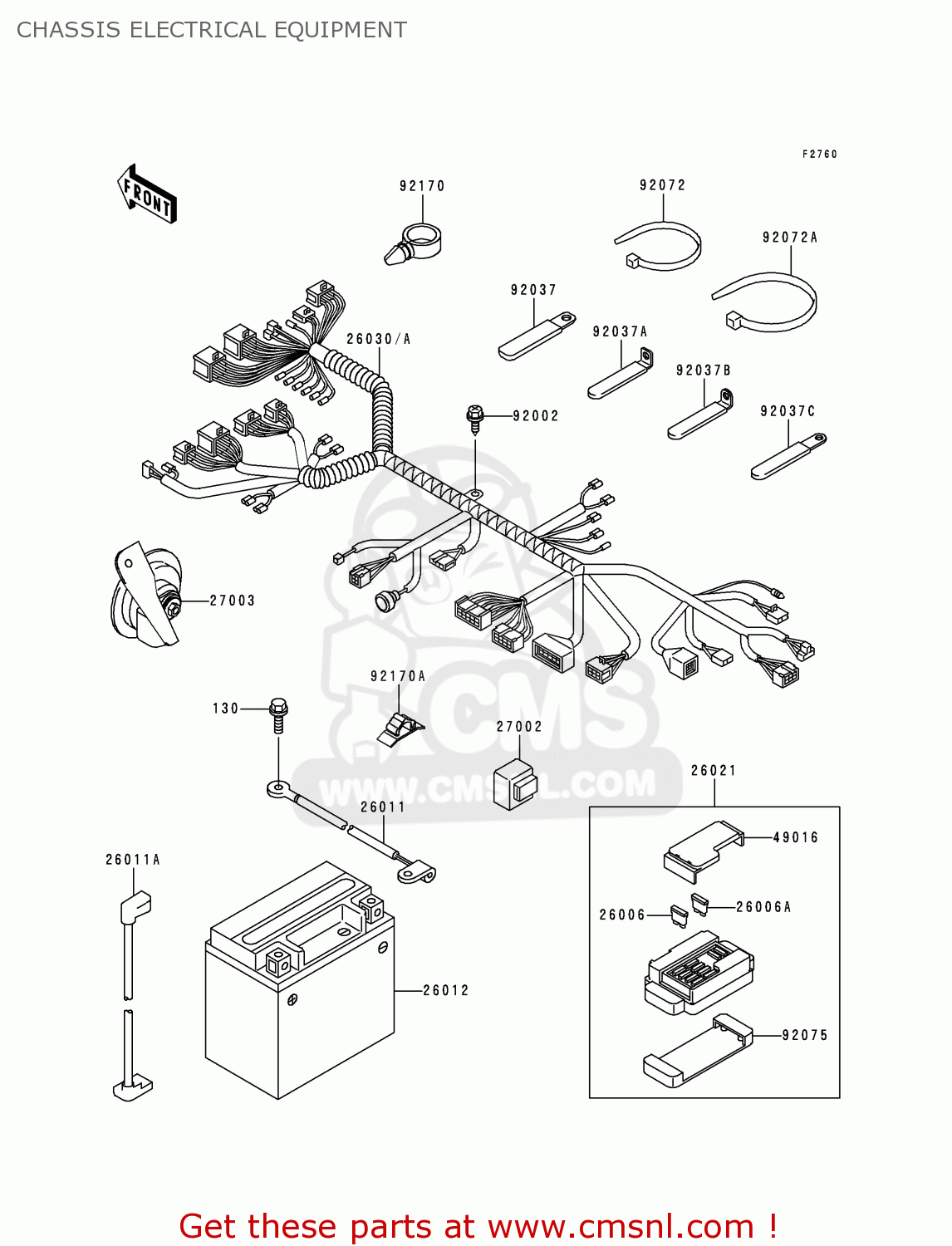

Chassis electrical equipment diagram ZX900B1 NINJA ZX9R 1994 USA CALIFORNIA CANADA

CHASSIS ELECTRICAL EQUIPMENT ZX900B1 NINJA ZX9R 1994 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT ZX900B1 NINJA ZX9R 1994 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT ZX900B1 NINJA ZX9R 1994 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130G0610
ref: 130
BOLT-FLANGED,6X10
130G0610
€ 0.50
26006
260061067
ref: 26006
FUSE, 30A-G
€ 3.00
26006A
260061068
ref: 26006A
FUSE, 10A-R
€ 3.00
26011
260111429
ref: 26011
WIRE-LEAD,BATTERY(-)
260111429
€ 16.50
26011A
260111584
ref: 26011A
WIRE-LEAD,BATTERY(+)
260111584
€ 27.00
26012
260121281
ref: 26012
BATTERY,YTX12-BS,12V
€ 120.50
26021
260211089
ref: 26021
JUNCTION BOX
260211089
€ 126.00
26030
260301243
ref: 26030
HARNESS,MAIN
€ 234.00
27002
270021053
ref: 27002
RELAY-ASSY,TURN SIGNA
270021053
€ 33.50
27003
270031373
ref: 27003
HORN
270031373
€ 42.00
49016
490161177
ref: 49016
COVER-SEAL,FUSE
490161177
€ 7.00
92002
920021472
ref: 92002
BOLT,TAPPING,5X16
€ 2.00
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
920371316
ref: 92037A
CLAMP
€ 1.50
92037B
920371679
ref: 92037B
CLAMP
920371679
€ 3.50
92037C
920371993
ref: 92037C
CLAMP
920371993
€ 3.50
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92072A
920721197
ref: 92072A
BAND
920721197
€ 5.00
92075
920751688
ref: 92075
DAMPER,FUSE & RELAY B
920751688
€ 9.50
92170
921701067
ref: 92170
CLAMP,HOSE
921701067
€ 5.00
92170A
921701494
ref: 92170A
CLAMP,HARNESS
€ 3.50
