MUFFLER(S)
ZX900A5A GPZ900R 1988 UNITED KINGDOM

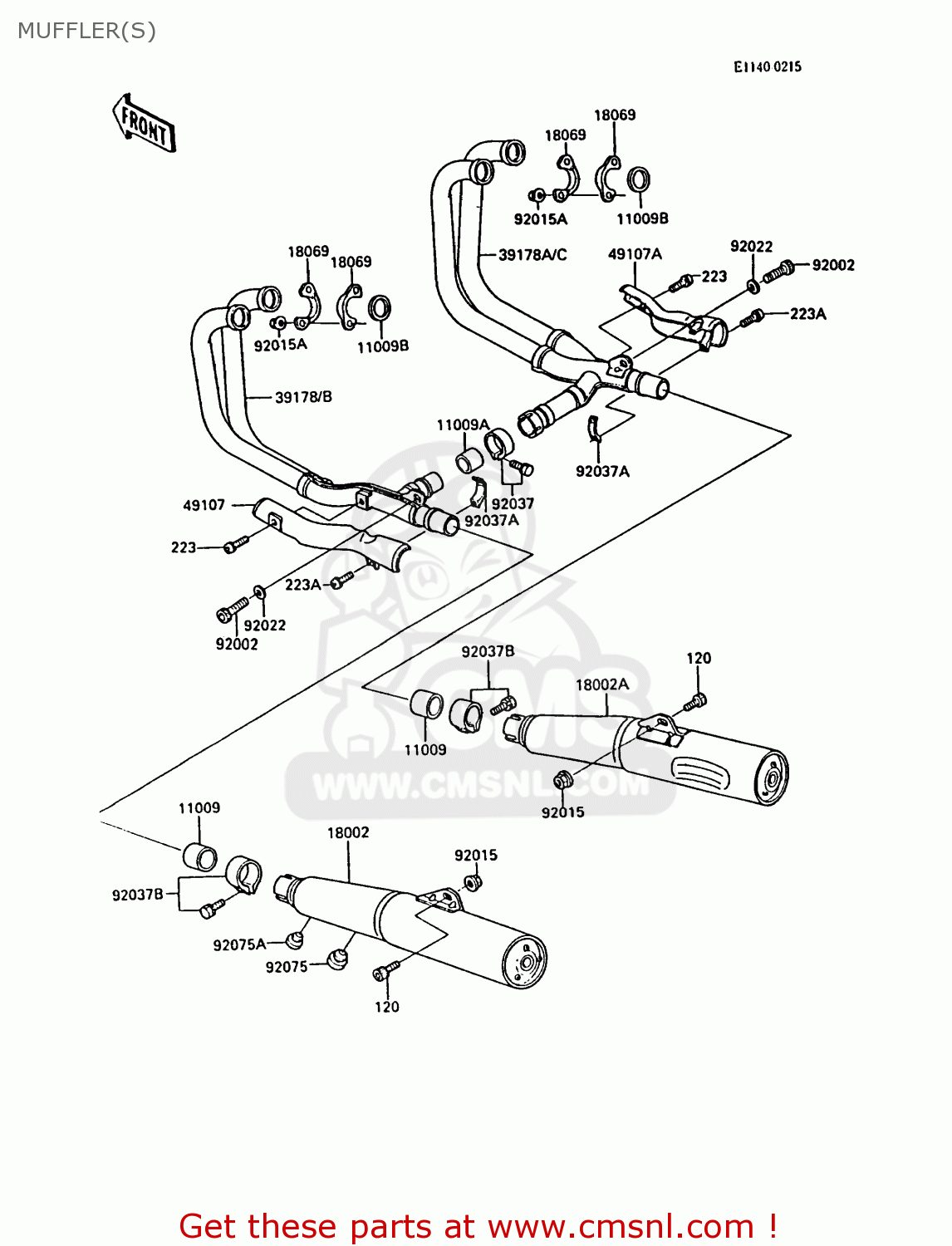

Muffler(s) diagram ZX900A5A GPZ900R 1988 UNITED KINGDOM
MUFFLER(S) ZX900A5A GPZ900R 1988 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
120
120Z0820
ref: 120
BOLT-SOCKET,8X20
€ 2.50
223
223C0612
ref: 223
SCREW-PAN-WS-CROS
€ 2.00
223A
223C0620
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
11009
110091480
ref: 11009
GASKET,EXHAUST PIPE C (MCA)
€ 20.50
11009A
110091659
ref: 11009A
GASKET,EXHAUST MANIFO (MCA)
€ 20.00
11009B
18067013
ref: 11009B
GASKET-EXHAUST PIPE (NAS)
€ 7.00
18002
180021560
ref: 18002
BODY-COMP-MUFFLER,LH
€ 318.00
18002A
180021561
ref: 18002A
BODY-COMP-MUFFLER,RH
€ 318.00
18069
180691054
ref: 18069
HOLDER-EXHAUST PIPE
€ 16.50
39178
391781067
ref: 39178
MANIFOLD-COMP-EXHAUST
€ 418.50
39178A
391781068
ref: 39178A
MANIFOLD-COMP-EXHAUST
€ 370.00
49107
491071053
ref: 49107
COVER-EXHAUST PIPE,LH
€ 73.00
49107A
491071058
ref: 49107A
COVER-EXHAUST PIPE,RH
€ 73.00
92002
920021371
ref: 92002
BOLT
€ 2.50
92015
920151014
ref: 92015
NUT,8MM
€ 0.50
92015A
920151380
ref: 92015A
NUT,LOCK,8MM
€ 3.00
92022
920221594
ref: 92022
WASHER,PLAIN
€ 2.50
92037
920371270
ref: 92037
CLAMP,MUFFLER,BLACK
€ 13.50
92037A
920371506
ref: 92037A
CLAMP,EXHAUST PIPE CO
€ 10.50
92037B
920371537
ref: 92037B
CLAMP,POWER CHAMBER
€ 14.50
92075
92075015
ref: 92075
DAMPER RUBB-MAIN STND
€ 3.00
92075A
92075281
ref: 92075A
DAMPER,9X24X14
€ 4.00
