CYLINDER/PISTON(S)
ZX900A5A GPZ900R 1988 UNITED KINGDOM

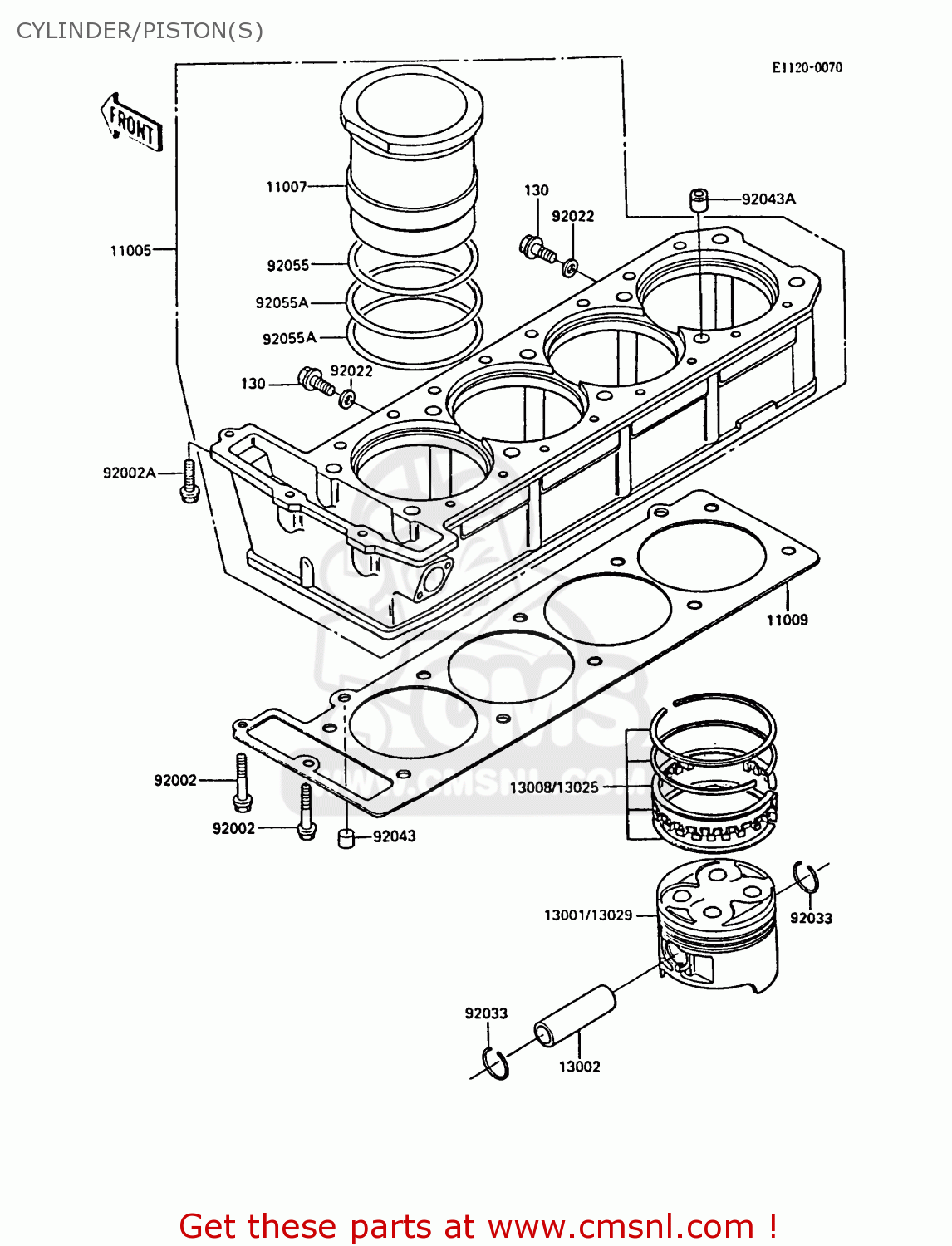

Cylinder/piston(s) diagram ZX900A5A GPZ900R 1988 UNITED KINGDOM
CYLINDER/PISTON(S) ZX900A5A GPZ900R 1988 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
130
130C0610
ref: 130
BOLT-FLANGED,6X10,BLA
€ 1.50
11005
110051447
ref: 11005
CYLINDER-ENGINE
€ 1,686.00
11007
110071063
ref: 11007
LINER-CYLINDER
€ 105.00
11009
110091505
ref: 11009
GASKET,CYLINDER BASE (NAS)
€ 24.50
13001
130011205
ref: 13001
PISTON-ENGINE,STD
€ 55.00
13002
130021023
ref: 13002
PIN-PISTON,12X18X57.2
€ 20.00
13008
130081053
ref: 13008
RING-SET-PISTON,STD
€ 63.50
13025
130251053
ref: 13025
RING-SET-PISTON L,O/S
€ 68.00
13029
130291142
ref: 13029
PISTON-ENGINE L,O/S 0
€ 72.00
92002
920011899
ref: 92002
BOLT,6X38
€ 2.50
92002A
920021138
ref: 92002A
BOLT,6X30
€ 3.00
92022
92022304
ref: 92022
WASHER,PLAIN
€ 2.50
92033
920331099
ref: 92033
RING-SNAP,18MM
€ 0.50
92043
920431264
ref: 92043
PIN,DOWEL,8.2X10X14
€ 0.50
92043A
920431279
ref: 92043A
PIN,11.5X14X14
€ 3.00
92055
920551229
ref: 92055
RING-O,78MM
€ 13.50
92055A
920551230
ref: 92055A
RING-O,79.5MM
€ 5.00
