SWINGARM

ZX900A3 GPZ900R 1986 EUROPE UK FG FR GR NR SD SP ST

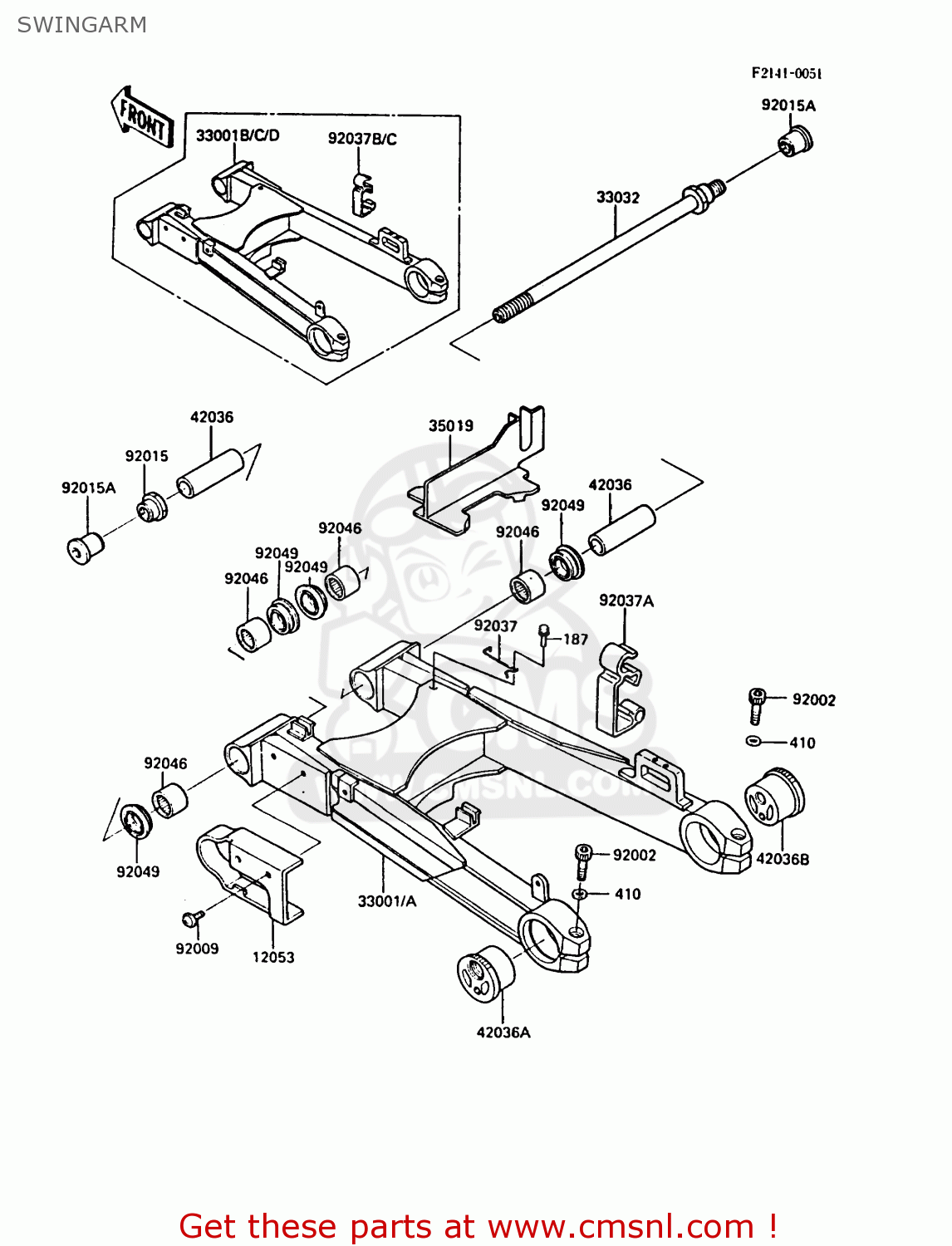

Swingarm diagram ZX900A3 GPZ900R 1986 EUROPE UK FG FR GR NR SD SP ST

SWINGARM ZX900A3 GPZ900R 1986 EUROPE UK FG FR GR NR SD SP ST
SWINGARM ZX900A3 GPZ900R 1986 EUROPE UK FG FR GR NR SD SP ST
SWINGARM ZX900A3 GPZ900R 1986 EUROPE UK FG FR GR NR SD SP ST
prices are in EUR
ref
part #
description
quantity
187
187D0610
ref: 187
BOLT-UPSET-WSP
€ 2.50
410
410E1000
ref: 410
W-PLAIN-S
€ 0.50
12053
120531119
ref: 12053
GUIDE-CHAIN
120531119
€ 53.50
33001
330011231P1
ref: 33001
EUFGFRGRNRSDSTUK
ARM-COMP-SWING,SILVER
€ 1,113.00
33001A
330011231
ref: 33001A
EUFGFRGRNRSDSTUK
ARM-COMP-SWING
€ 0.00
33001B
330011266P1
ref: 33001B
SP
ARM-COMP-SWING,SILVER
€ 620.50
33001D
330011266P1
ref: 33001D
EUFGFRGRNRSDSTUK
ARM-COMP-SWING,SILVER
€ 620.50
33032
330321105
ref: 33032
SHAFT-SWING ARM
330321105
€ 54.00
35019
350191124
ref: 35019
FLAP
350191124
€ 16.50
42036
420361114
ref: 42036
SLEEVE,SWING ARM
420361114
€ 20.50
42036A
420361147
ref: 42036A
SLEEVE,REAR AXLE,LH
420361147
€ 78.00
42036B
420361148
ref: 42036B
SLEEVE,REAR AXLE,RH
420361148
€ 78.00
92002
920021452
ref: 92002
BOLT
920021452
€ 4.00
92009
920091286
ref: 92009
SCREW,6X10
920091286
€ 2.50
92015
920151333
ref: 92015
NUT,SWING ARM SHAFT
920151333
€ 24.00
92015A
920151334
ref: 92015A
NUT,SWING ARM
920151334
€ 23.00
92037
920371565
ref: 92037
CLAMP
920371565
€ 4.00
92037A
920371674
ref: 92037A
EUFGFRGRNRSDSTUK
CLAMP,HOSE
920371674
€ 4.50
92037B
920371758
ref: 92037B
SP
CLAMP,HOSE
920371758
€ 6.50
92037C
920371758
ref: 92037C
EUFGFRGRNRSDSTUK
CLAMP,HOSE
920371758
€ 6.50
92046
920461035
ref: 92046
920461035
92049
920491166
ref: 92049
SEAL-OIL
920491166
€ 7.50
