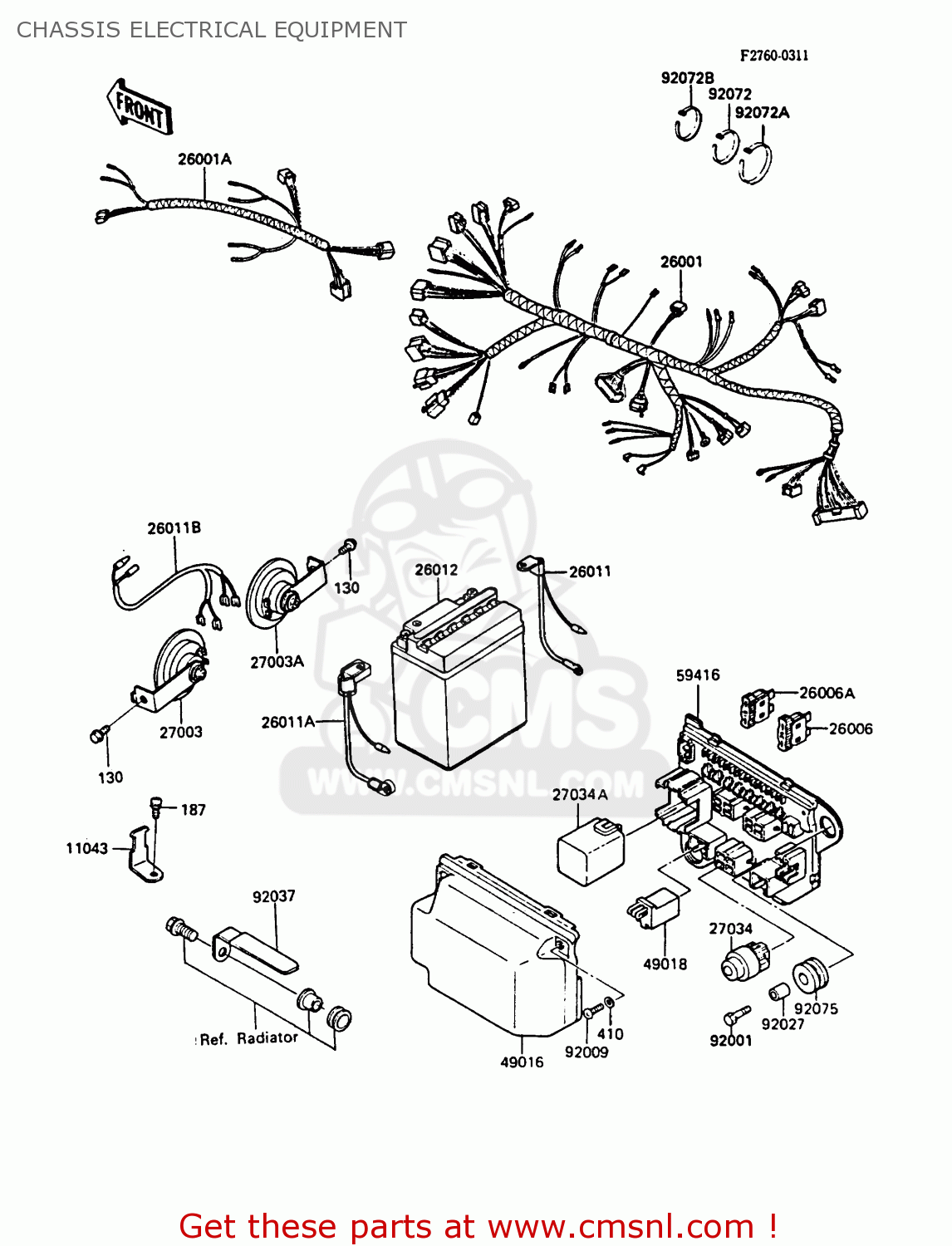

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

130

130C0812
ref: 130

BOLT-FLANGED,8X12,BLA

€ 0.50

187

187B0612
ref: 187

BOLT-UPSET-WSP

€ 0.50

410

410B0400
ref: 410

WASHER-PLAIN-SMALL,4M

€ 0.50

11043

110431811
ref: 11043

BRACKET,FAN RELAY

€ 8.00

26001

260011640
ref: 26001

HARNESS,MAIN

€ 355.50

26001A

260011672
ref: 26001A

HARNESS,FR

€ 21.00

26006

260061006
ref: 26006

FUSE,30A-G

€ 3.00

26006A

260061007
ref: 26006A

FUSE, 10A-R

€ 3.00

26011

260111189
ref: 26011

WIRE-LEAD,BATTERY GRO

€ 21.50

26011A

260111270
ref: 26011A

WIRE-LEAD,BATTERY(+)

€ 25.00

26011B

260111274
ref: 26011B

WIRE-LEAD,HORN

€ 32.50

26012

260121179
ref: 26012

BATTERY,12V 14AH,YB14

€ 101.50

27003

270031260
ref: 27003

HORN,LH

€ 63.00

27003A

270031261
ref: 27003A

HORN,RH

€ 65.50

27034

270341006
ref: 27034

STARTER,RELAY

€ 65.50

27034A

270341007
ref: 27034A

RELAY,FLASHER

€ 139.00

49016

490161050
ref: 49016

COVER-SEAL

€ 14.00

49018

490181006
ref: 49018

DIODE

€ 35.00

59416

594161056
ref: 59416

CASE-ELECTRIC

€ 125.50

92001

920011774
ref: 92001

BOLT,6X22

€ 2.00

92009

920091021
ref: 92009

SCREW,TAPPING,4X10

€ 2.50

92027

92027162
ref: 92027

COLLAR-REAR FENDER

€ 4.50

92037

920371564
ref: 92037

CLAMP,HARNESS

€ 6.00

92072

92072030
ref: 92072

BAND,SHORT

€ 3.00

92072A

92072032
ref: 92072A

BAND,LONG

€ 3.00

92072B

92072056
ref: 92072B

BAND,RUBBER

€ 3.00

92075

920751562
ref: 92075

DAMPER

€ 3.00
