HEADLIGHT(S)
ZX750N2 NINJA ZX7RR 1997 NETHERLANDS AR

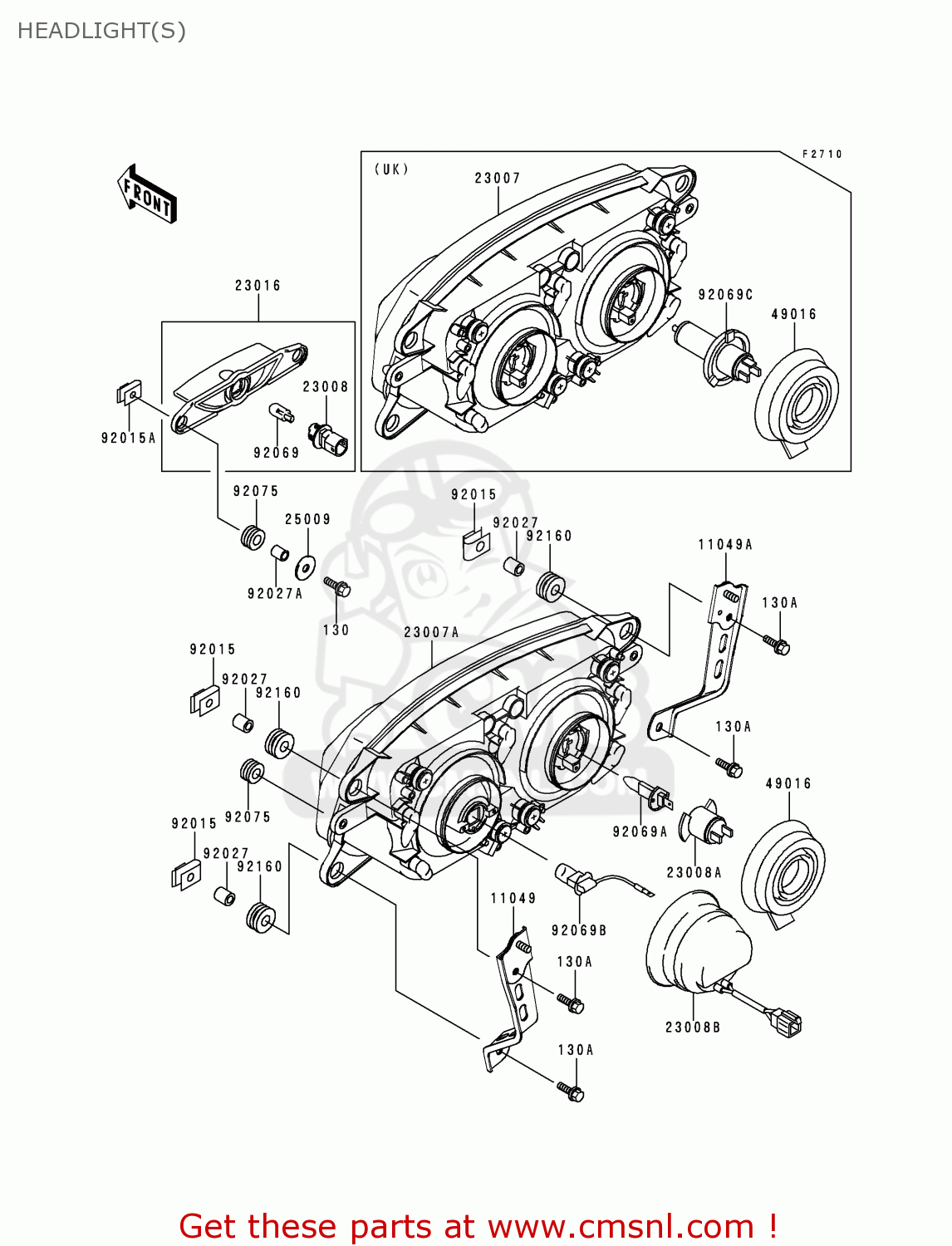

Headlight(s) diagram ZX750N2 NINJA ZX7RR 1997 NETHERLANDS AR
HEADLIGHT(S) ZX750N2 NINJA ZX7RR 1997 NETHERLANDS AR
×
prices are in EUR
ref
part #
description
quantity
130
130J0520
ref: 130
BOLT-FLANGED
€ 2.00
130A
130J0625
ref: 130A
BOLT-FLANGED,6X25
€ 2.00
11049
110491340
ref: 11049
BRACKET,HEAD LAMP,LH
€ 16.00
11049A
110491341
ref: 11049A
BRACKET,HEAD LAMP,RH
€ 19.00
23007A
230071337
ref: 23007A
LENS-COMP,HEAD LAMP
€ 450.50
23008
230081526
ref: 23008
SOCKET-ASSY,POSITION
€ 18.00
23008A
230081558
ref: 23008A
SOCKET-ASSY,HEAD LAMP
€ 18.00
23008B
230081559
ref: 23008B
SOCKET-ASSY,HEAD LAMP
€ 25.00
23016
230161134
ref: 23016
LAMP-ASSY,POSITION
€ 94.00
25009
25009004
ref: 25009
WASHER,5.2X16X1.2T
€ 2.50
49016
490161137
ref: 49016
COVER-SEAL,HEAD LAMP
€ 10.50
92015
920151094
ref: 92015
NUT,MUFFLER
€ 5.50
92015A
920151798
ref: 92015A
NUT
€ 4.50
92027
92027162
ref: 92027
COLLAR-REAR FENDER
€ 4.50
92027A
920271923
ref: 92027A
COLLAR,5.6X8X8.8
€ 3.50
92069
920691016
ref: 92069
BULB,12V 5W
€ 4.00
92069A
920691076
ref: 92069A
BULB,12V 55W,H1
€ 21.00
92069B
920691095
ref: 92069B
BULB,12V 55W,H3
€ 22.50
92075
920751912
ref: 92075
DAMPER
€ 3.50
92160
921601162
ref: 92160
DAMPER
€ 3.00
