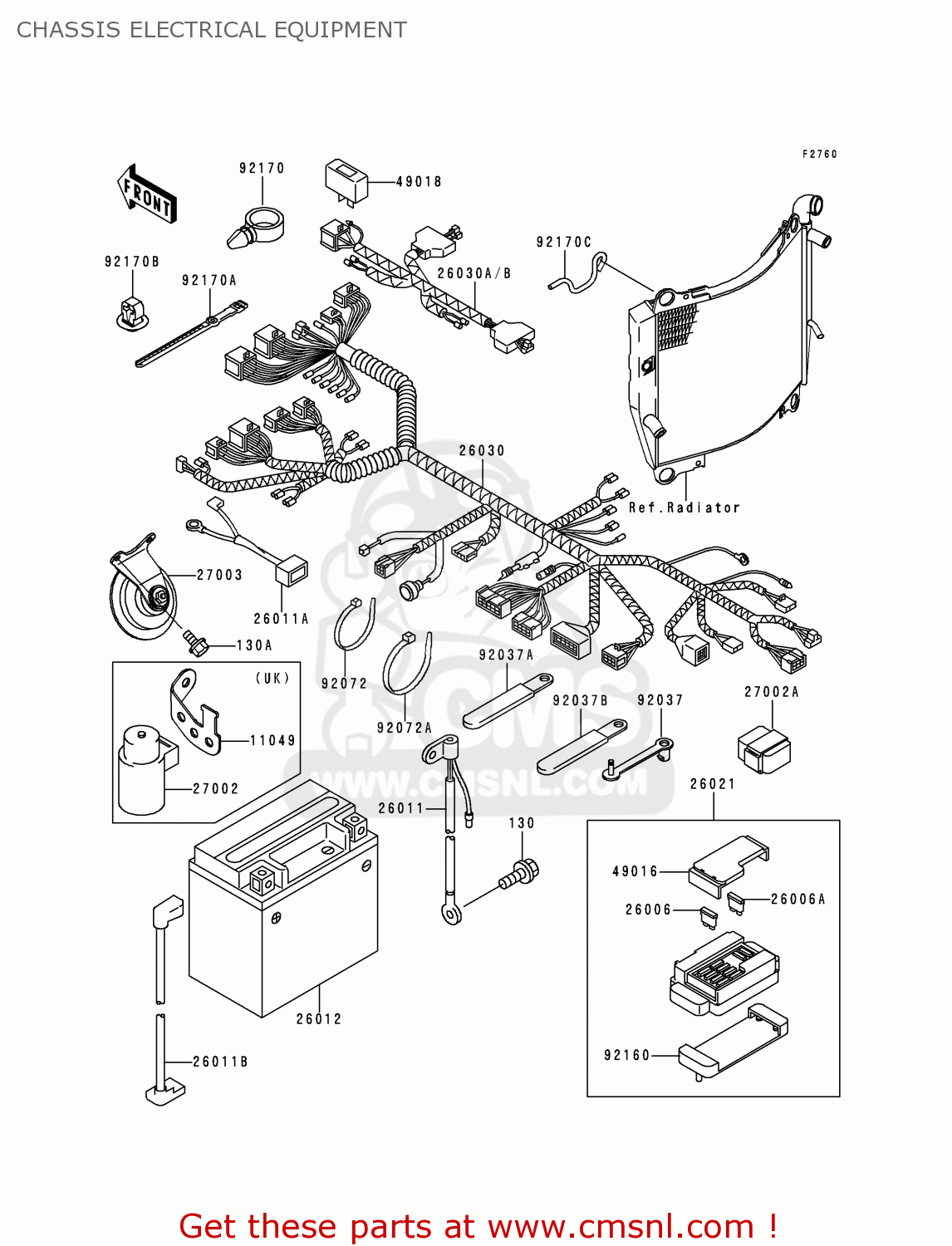

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

130

130G0610
ref: 130

BOLT-FLANGED,6X10

€ 0.50

130A

130G0616
ref: 130A

BOLT-FLANGED,6X16

€ 0.50

26006

260061067
ref: 26006

FUSE, 30A-G

€ 3.00

26006A

260061068
ref: 26006A

FUSE, 10A-R

€ 3.00

26011

260111429
ref: 26011

WIRE-LEAD,BATTERY(-)

€ 16.50

26011A

260111507
ref: 26011A

WIRE-LEAD,THERMO SENS

€ 18.50

26011B

260111584
ref: 26011B

WIRE-LEAD,BATTERY(+)

€ 27.00

26012

260121326
ref: 26012

BATTERY,YTX9BS,12V8AH

€ 100.00

26021

260211095
ref: 26021

JUNCTION BOX

€ 135.50

26030

260301405
ref: 26030

HARNESS,MAIN

€ 287.50

26030A

260301460
ref: 26030A

HARNESS,FR,SUB

€ 68.00

27002A

270021092
ref: 27002A

RELAY-ASSY,SIGNAL LAM

€ 49.50

27003

270031395
ref: 27003

HORN

€ 53.50

49016

490161177
ref: 49016

COVER-SEAL,FUSE

€ 7.00

49018

490181055
ref: 49018

DIODE

€ 13.00

92037

920371290
ref: 92037

CLAMP,CARBURETOR

€ 4.50

92037A

920371679
ref: 92037A

CLAMP

€ 3.50

92037B

920371877
ref: 92037B

CLAMP

€ 3.00

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92072A

920721197
ref: 92072A

BAND

€ 5.00

92160

921601650
ref: 92160

DAMPER,JUNCTION BOX

€ 9.50

92170

921701067
ref: 92170

CLAMP,HOSE

€ 5.00

92170A

921701681
ref: 92170A

CLAMP,L=141.2

€ 4.00

92170B

921701682
ref: 92170B

CLAMP

€ 2.50

92170C

921701714
ref: 92170C

CLAMP,HARNESS

€ 2.50

all assemblies
