REAR MASTER CYLINDER

ZX750N1 NINJA ZX7RR 1996 EUROPE UK FR AR FG IT

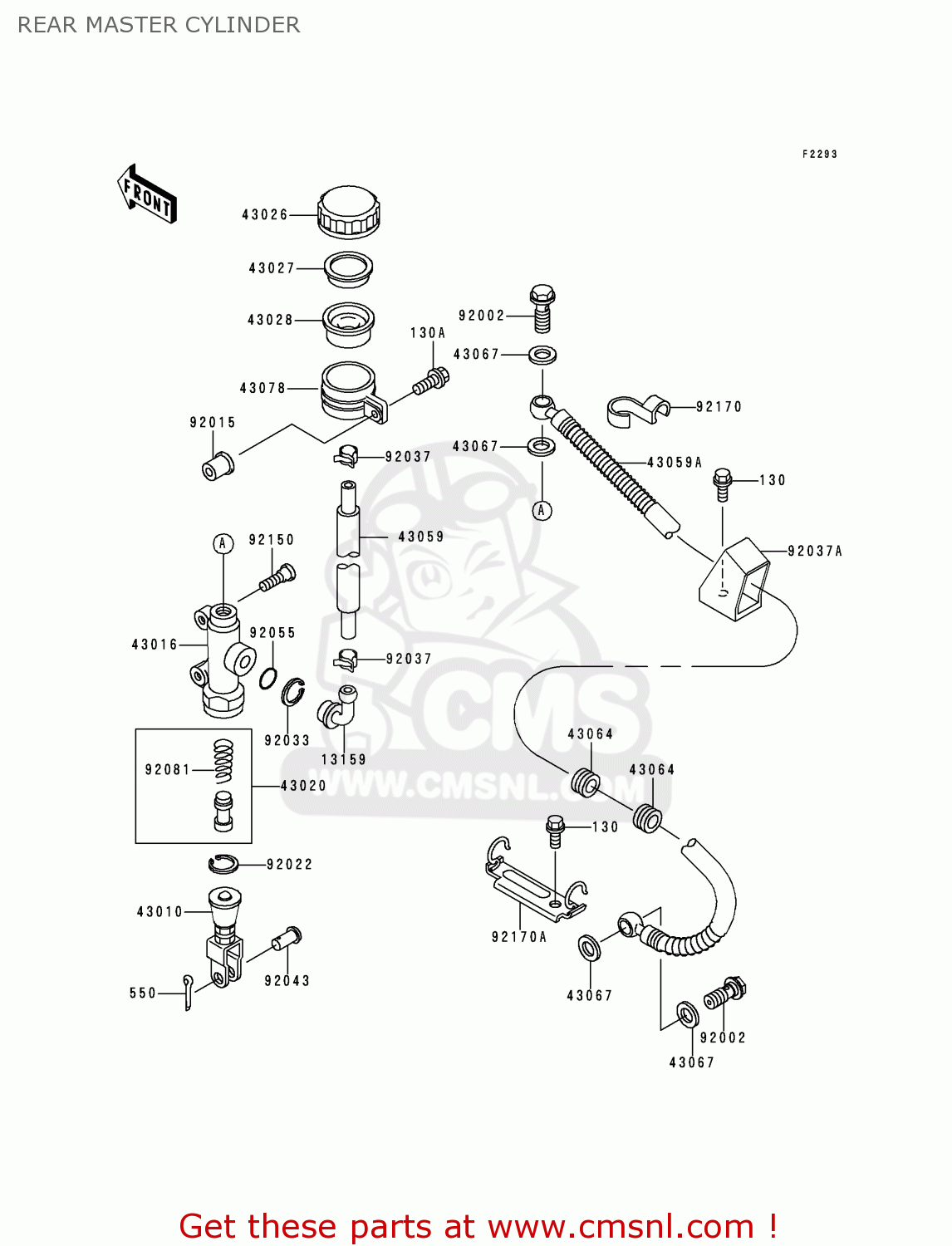

Rear master cylinder diagram ZX750N1 NINJA ZX7RR 1996 EUROPE UK FR AR FG IT

REAR MASTER CYLINDER ZX750N1 NINJA ZX7RR 1996 EUROPE UK FR AR FG IT
REAR MASTER CYLINDER ZX750N1 NINJA ZX7RR 1996 EUROPE UK FR AR FG IT
REAR MASTER CYLINDER ZX750N1 NINJA ZX7RR 1996 EUROPE UK FR AR FG IT
prices are in EUR
ref
part #
description
quantity
130
130J0610
ref: 130
BOLT-FLANGED
130J0610
€ 1.50
130A
130J0625
ref: 130A
BOLT-FLANGED,6X25
130J0625
€ 2.00
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
13159
131591052
ref: 13159
CONNECTOR RR MASTER C
131591052
€ 9.50
43010
430101062
ref: 43010
ROD-ASSY-BRAKE
430101062
€ 38.50
43016
430161212
ref: 43016
CYLINDER-MASTER,RR
€ 161.50
43020
430201057
ref: 43020
PISTON-COMP-BRAKE
430201057
€ 47.50
43026
430261051
ref: 43026
CAP-BRAKE, RR
430261051
€ 25.00
43027
430271051
ref: 43027
PLATE-DIAPHRAGM
430271051
€ 4.00
43028
430281057
ref: 43028
DIAPHRAGM
430281057
€ 13.00
43059
430591911
ref: 43059
HOSE-BRAKE,RR MASTER
430591911
€ 23.50
43059A
430591938
ref: 43059A
HOSE-BRAKE,RR
€ 87.00
43064
43064006
ref: 43064
GROMMET,BRAKE HOSE
43064006
€ 2.50
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
43067001
€ 1.50
43078
430781082
ref: 43078
RESERVOIR, RR MASTER
430781082
€ 19.00
92002
920021888
ref: 92002
BOLT,OIL,L=23
920021888
€ 3.50
92015
920151700A
ref: 92015
NUT
920151700A
€ 5.50
92022
920221601
ref: 92022
WASHER,CIRCRIP
920221601
€ 5.00
92033
920331186
ref: 92033
RING-SNAP,20.5MM
920331186
€ 3.00
92037
920371547
ref: 92037
CLAMP
920371547
€ 8.50
92037A
920371896
ref: 92037A
CLAMP,HOSE
920371896
€ 15.50
92043
920431303
ref: 92043
PIN,8MM
920431303
€ 2.50
92055
920551251
ref: 92055
RING-O,MASTER CYLINDE
920551251
€ 2.50
92081
920811737
ref: 92081
SPRING
920811737
€ 8.50
92150
921501837
ref: 92150
BOLT
921501837
€ 3.00
92170
921701097
ref: 92170
CLAMP,HOSE
921701097
€ 4.00
92170A
921701367
ref: 92170A
CLAMP,HOSE
921701367
€ 19.00
