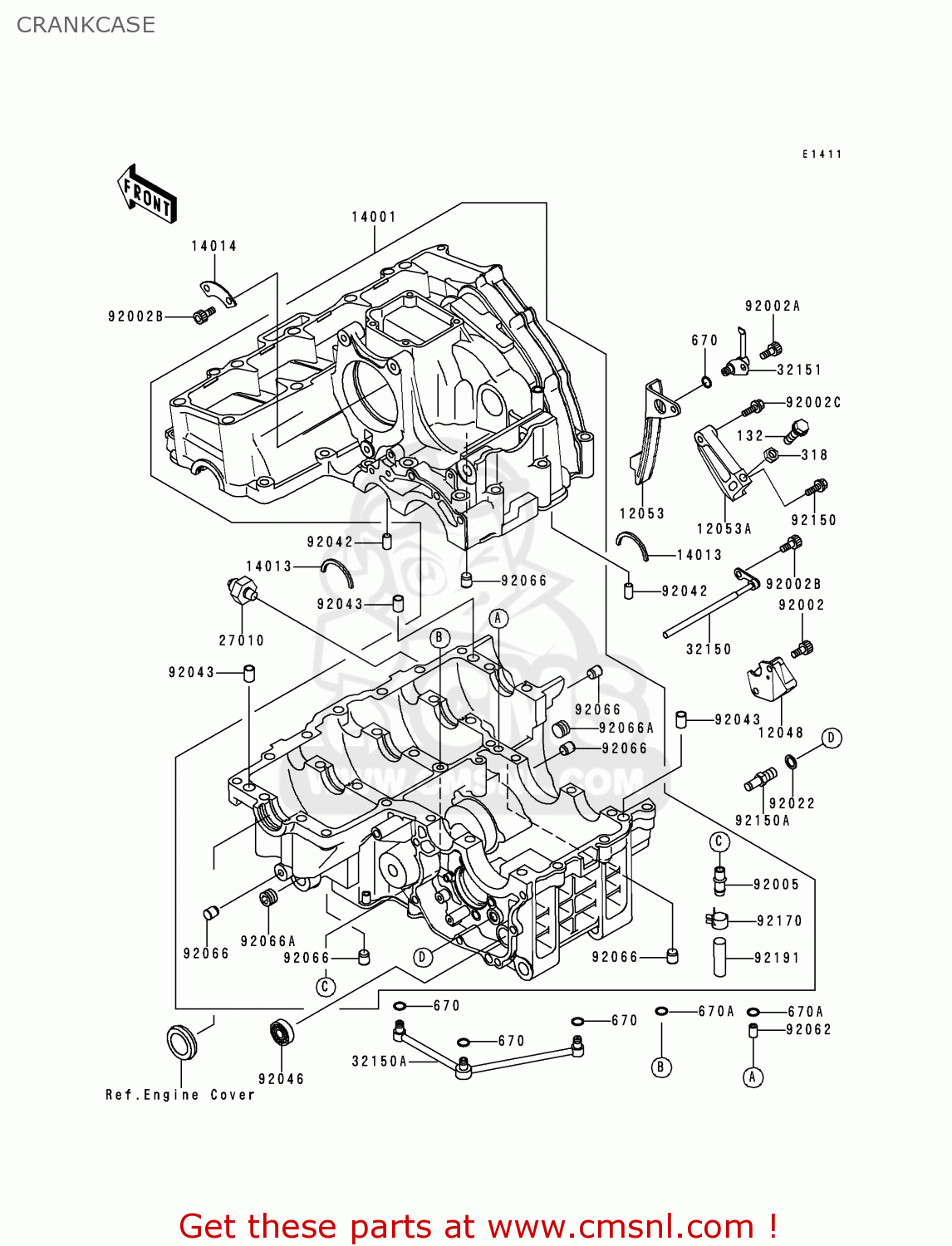

CRANKCASE

ref

part #

description

quantity

132

132G0820
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

318

318B0800
ref: 318

NUT,8MM

€ 0.50

670

670D1505
ref: 670

O RING

€ 2.50

670A

670D1508
ref: 670A

O RING,8MM

€ 2.50

12048

120481109
ref: 12048

TENSIONER-ASSY

€ 124.00

12053

120531281
ref: 12053

GUIDE-CHAIN

€ 39.00

12053A

120531285
ref: 12053A

GUIDE-CHAIN

€ 39.00

14001

140011208
ref: 14001

SET-CRANKCASE

€ 2,672.50

14013

140131004
ref: 14013

RING-POSITION,CRANK

€ 3.00

14014

140141056
ref: 14014

PLATE-POSITION

€ 9.50

27010

270101313
ref: 27010

SWITCH,OIL PRESSURE

€ 28.00

32150

321501795
ref: 32150

PIPE

€ 35.50

32150A

321501796
ref: 32150A

PIPE

€ 45.50

32151

321511492
ref: 32151

PIPE

€ 34.00

92002

920021696
ref: 92002

BOLT,SOCKET,6X25

€ 1.50

92002A

920021778
ref: 92002A

BOLT,SOCKET,6X16

€ 3.00

92002B

920021796
ref: 92002B

BOLT,SOCKET,6X12

€ 3.00

92002C

920021797
ref: 92002C

BOLT,6X30

€ 3.50

92005

920051161
ref: 92005

FITTING,BREATHER PIPE

€ 7.50

92022

920221973
ref: 92022

WASHER

€ 3.00

92042

92042016
ref: 92042

PIN,DOWEL,6X16

€ 3.50

92043

920431037
ref: 92043

PIN,DOWEL,10X8.2X14

€ 0.50

92046

920461148
ref: 92046

BEARING-NEEDLE,HK1312

€ 19.50

92062

920621074
ref: 92062

NOZZLE

€ 6.50

92066

920661012
ref: 92066

PLUG,OIL LINE,7.2X8

€ 4.00

92066A

920661262
ref: 92066A

PLUG

€ 2.50

92150

921501799
ref: 92150

BOLT,6X25

€ 3.00

92150A

921501803
ref: 92150A

BOLT,RETURN SPRING

€ 6.50

92170

921701167
ref: 92170

CLAMP

€ 4.00

92191

921911016
ref: 92191

TUBE

€ 2.50
