GENERATOR
ZX750M2 NINJA ZX7R 1994 USA CALIFORNIA

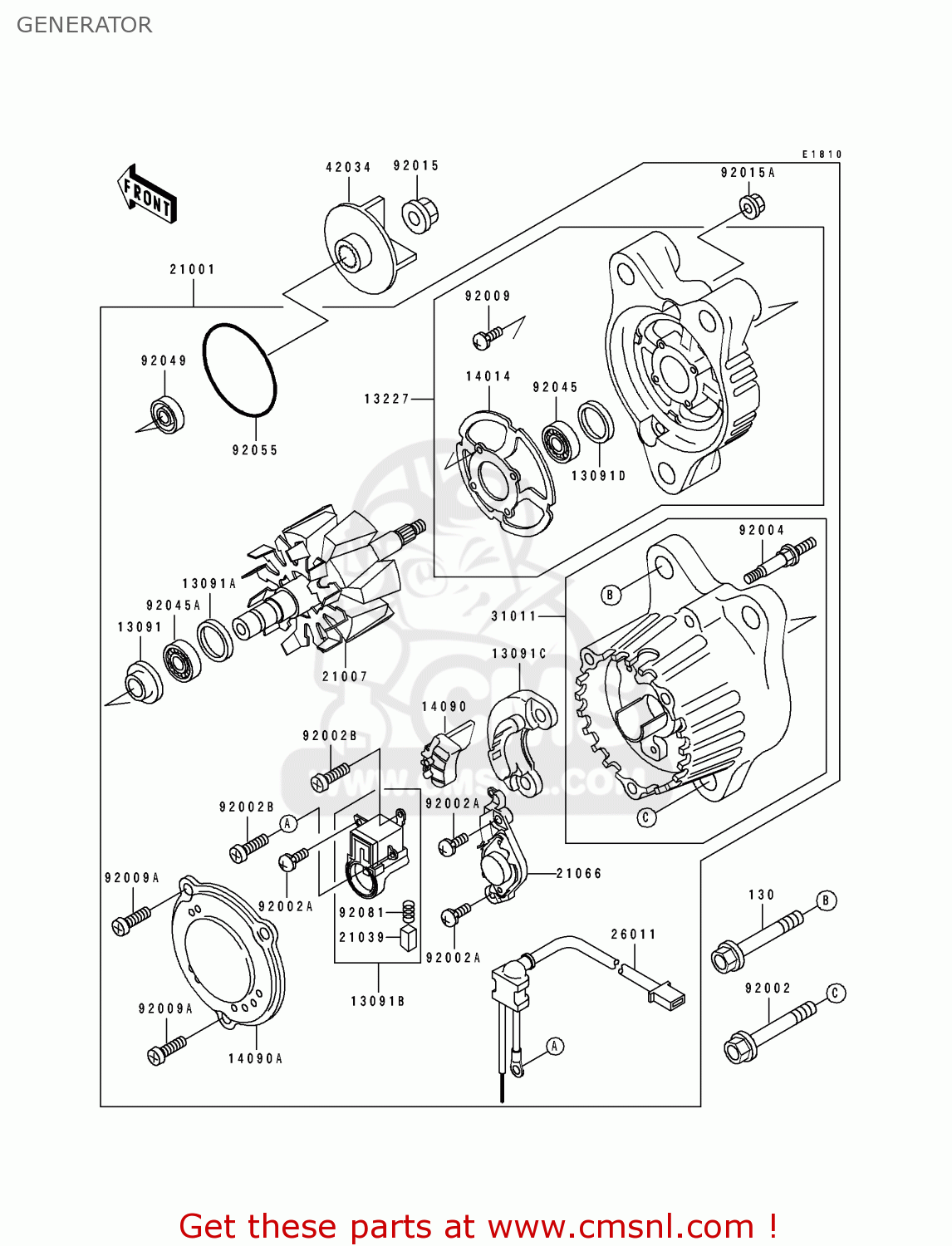

Generator diagram ZX750M2 NINJA ZX7R 1994 USA CALIFORNIA
GENERATOR ZX750M2 NINJA ZX7R 1994 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
130
130Z0870
ref: 130
BOLT-FLANGED
€ 6.00
13091
130911327
ref: 13091
HOLDER,COVER
€ 13.00
13091A
130911328
ref: 13091A
HOLDER,BEARING
€ 10.00
13091B
130911465
ref: 13091B
HOLDER,BRUSH
€ 85.50
13091C
130911466
ref: 13091C
RECTIFIER
€ 432.50
13091D
130911748
ref: 13091D
HOLDER,BEARING
€ 10.00
13227
132271106
ref: 13227
HOUSING,GENERATOR
€ 713.50
14014
140141105
ref: 14014
PLATE-POSITION
€ 49.00
14090
140901113
ref: 14090
COVER,RECTIFIER
€ 10.00
14090A
140901114
ref: 14090A
COVER,GENERATOR
€ 76.00
21001
210011115
ref: 21001
GENERATOR
€ 1,308.50
21007
210071229
ref: 21007
ROTOR,GENERATOR
€ 537.00
21039
210391052
ref: 21039
BRUSH,CARBON
€ 19.00
21066
210661076
ref: 21066
REGULATOR-VOLTAGE
€ 313.00
26011
260111497
ref: 26011
WIRE-LEAD,GENERATOR
€ 64.00
31011
310111067
ref: 31011
FRAME,GENERATOR
€ 582.50
42034
420341056
ref: 42034
COUPLING
€ 58.00
92002
920021215
ref: 92002
BOLT,8X63
€ 5.00
92002A
920021380
ref: 92002A
BOLT
€ 3.00
92002B
920021585
ref: 92002B
BOLT,6X105
€ 2.50
92004
920041196
ref: 92004
STUD
€ 17.50
92009
920091645
ref: 92009
ZCREW
€ 5.00
92009A
920091646
ref: 92009A
SCREW
€ 5.50
92015
920151850
ref: 92015
NUT,10MM
€ 4.50
92015A
920151851
ref: 92015A
NUT
€ 2.00
92045
920451248
ref: 92045
BEARING-BALL,#6003
€ 47.00
92045A
920451249
ref: 92045A
BEARING-BALL,#6002NC
€ 56.50
92049
920491390
ref: 92049
SEAL-OIL
€ 11.00
92055
920551496
ref: 92055
RING-O
€ 19.50
92081
920811759
ref: 92081
SPRING,BRUSH
€ 5.00
