CRANKCASE BOLT PATTERN

ZX750M1 ZXR750R 1993 EUROPE UK FR AR FG IT SP

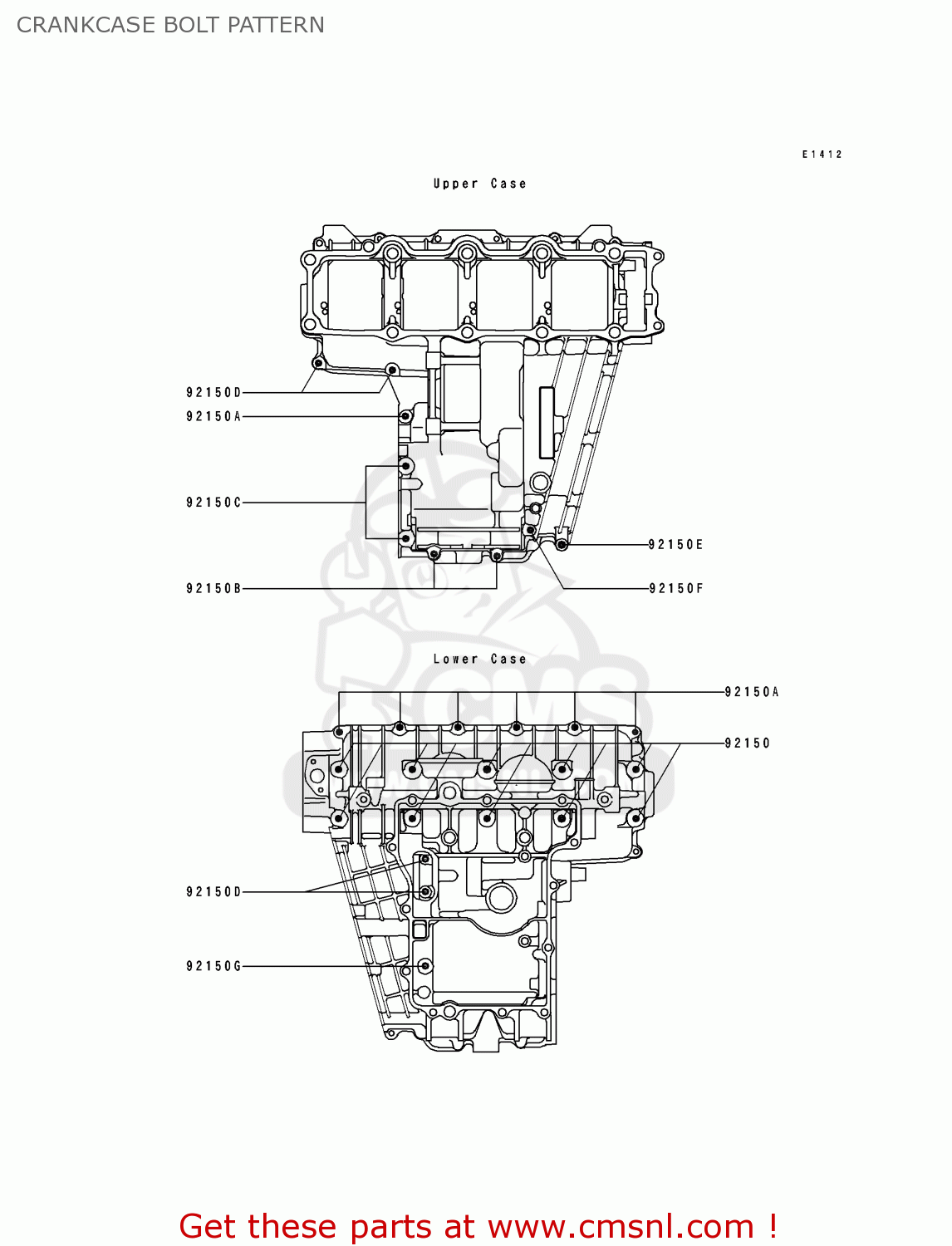

Crankcase bolt pattern diagram ZX750M1 ZXR750R 1993 EUROPE UK FR AR FG IT SP

CRANKCASE BOLT PATTERN ZX750M1 ZXR750R 1993 EUROPE UK FR AR FG IT SP

CRANKCASE BOLT PATTERN ZX750M1 ZXR750R 1993 EUROPE UK FR AR FG IT SP

prices are in EUR

ref

part #

description

quantity

92150

921501163
ref: 92150

BOLT,8X90

€ 6.00

92150A

921501301
ref: 92150A

BOLT,6X38

€ 2.50

92150B

921501464
ref: 92150B

BOLT,6X105

€ 4.00

92150C

921501483
ref: 92150C

BOLT,8X70

€ 5.00

92150D

921501547
ref: 92150D

BOLT,6X35

€ 3.50

92150E

921501548
ref: 92150E

BOLT,6X60

€ 3.00

92150F

921501549
ref: 92150F

BOLT,6X70

€ 3.50

92150G

921501550
ref: 92150G

BOLT,8X115

€ 4.50
