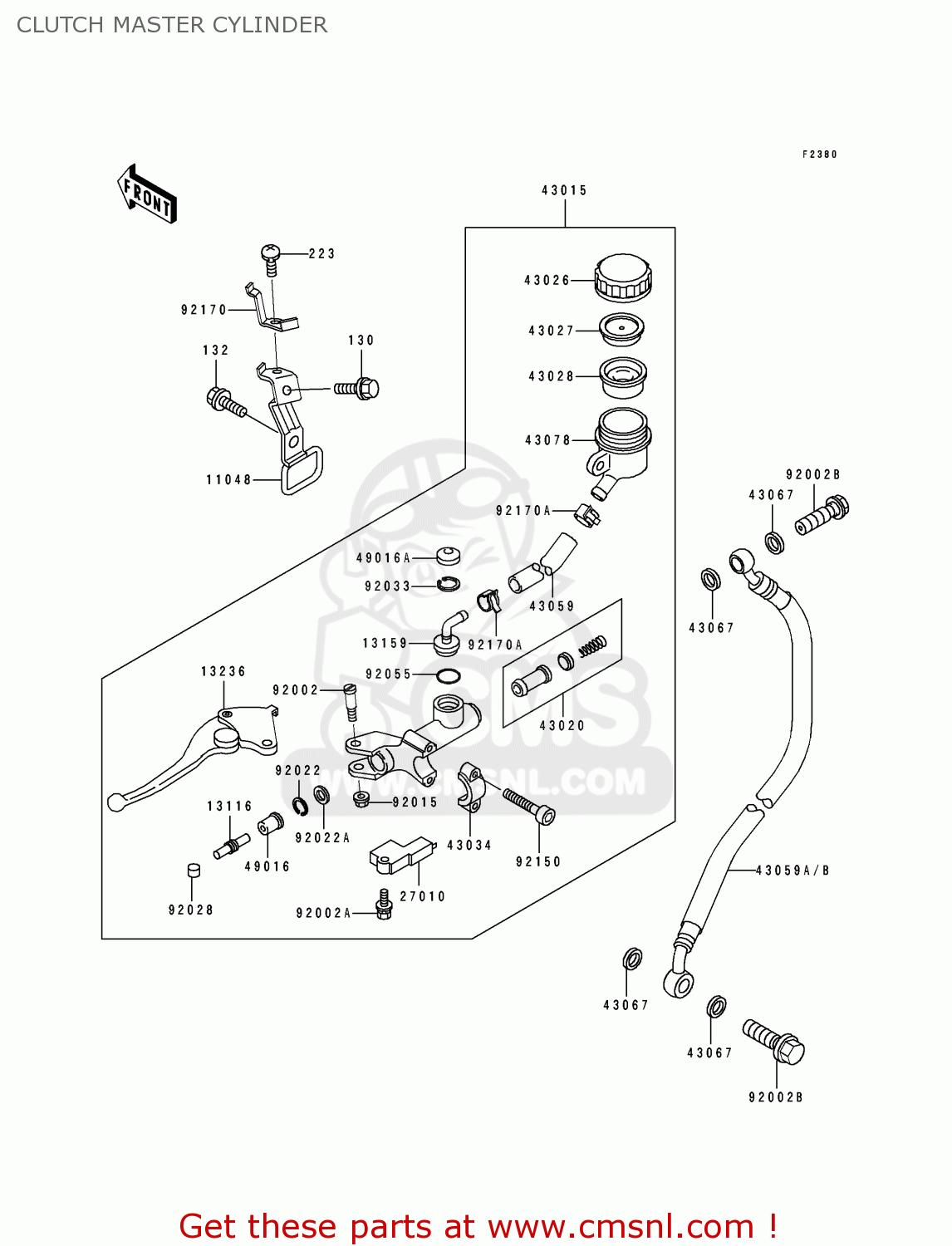

CLUTCH MASTER CYLINDER

ref

part #

description

quantity

130

130H0614
ref: 130

BOLT-FLANGED,6X14

€ 0.50

132

132J0612
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

223

223D0408
ref: 223

SCREW-PAN-WS-CROS

€ 1.00

11048

110481171
ref: 11048

BRACKET,RESERVOIR TAN

€ 13.50

13116

131161110
ref: 13116

ROD-PUSH,MASTER CYLIN

€ 24.00

13159

131591061
ref: 13159

CONNECTOR

€ 9.00

13236

132361186
ref: 13236

LEVER-COMP,CLUTCH

€ 45.50

27010

270101171
ref: 27010

SWITCH,CLUTCH

€ 25.00

43015

430151394
ref: 43015

CYLINDER-ASSY-MASTER,

€ 318.00

43020

430201055
ref: 43020

PISTON-COMP-BRAKE,CLU

€ 47.50

43026

430261070
ref: 43026

CAP-BRAKE

€ 24.50

43027

430271054
ref: 43027

PLATE-DIAPHRAGM

€ 4.00

43028

430281073
ref: 43028

DIAPHRAGM

€ 13.00

43034

430341016
ref: 43034

HOLDER-BRAKE,MASTER C

€ 13.50

43059

430591548
ref: 43059

HOSE-BRAKE,M/CYLINDER

€ 15.00

43059A

430591768
ref: 43059A

HOSE-BRAKE,CLUTCH

€ 135.50

43067

43067001
ref: 43067

WASHER,10.5X15X1.5

€ 1.50

43078

430781102
ref: 43078

RESERVOIR

€ 19.00

49016

490161044
ref: 49016

COVER-SEAL,MASTER CYL

€ 7.00

49016A

490161147
ref: 49016A

COVER-SEAL

€ 5.00

92002

920021322
ref: 92002

BOLT,LEVER SET

€ 8.00

92002A

920021325
ref: 92002A

BOLT

€ 4.00

92002B

920021888
ref: 92002B

BOLT,OIL,L=23

€ 3.50

92015

920151233
ref: 92015

NUT,FLANGED,6MM

€ 3.50

92022

920221605
ref: 92022

WASHER,PISTON

€ 3.00

92022A

920221606
ref: 92022A

WASHER,PISTON

€ 3.00

92028

920281310
ref: 92028

BUSHING,MASTER CYLIND

€ 10.00

92033

920331186
ref: 92033

RING-SNAP,20.5MM

€ 3.00

92055

920551251
ref: 92055

RING-O,MASTER CYLINDE

€ 2.50

92150

921501328
ref: 92150

BOLT

€ 3.00

92170

921701087
ref: 92170

CLAMP

€ 4.00

92170A

921701091
ref: 92170A

CLAMP,HOSE

€ 3.00
