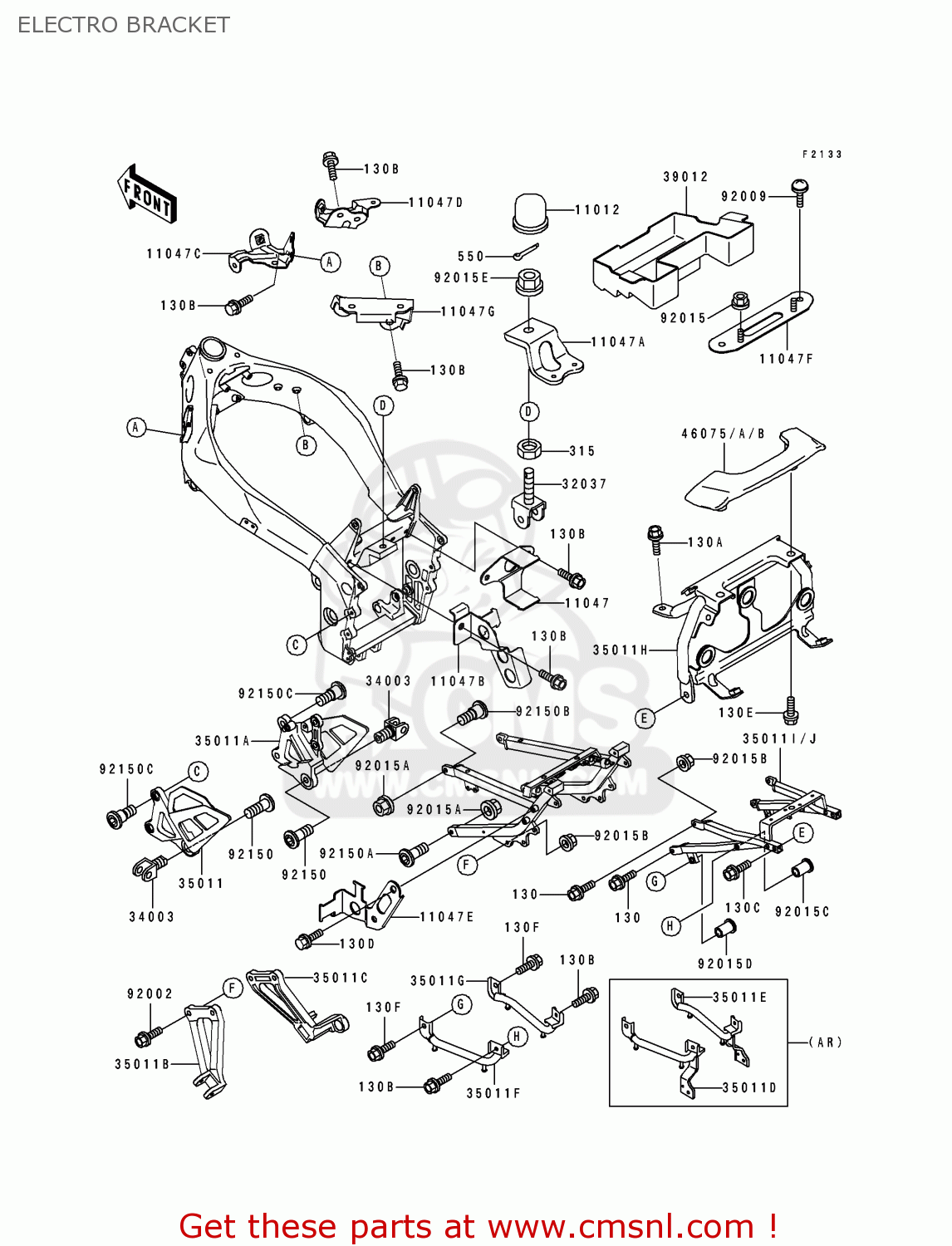

ELECTRO BRACKET

ref

part #

description

quantity

11012

110121844
ref: 11012

CAP

€ 6.50

11047

110471265
ref: 11047

BRACKET,FUEL PUMP

€ 8.50

11047A

110471267
ref: 11047A

BRACKET,BATTERY

€ 22.00

11047B

110471852
ref: 11047B

BRACKET,FUEL FILTER

€ 12.00

11047C

110471853
ref: 11047C

BRACKET,RADIATOR,LH

€ 11.50

11047D

110471854
ref: 11047D

BRACKET,RADIATOR,RH

€ 13.00

11047E

110471855
ref: 11047E

BRACKET,RELAY&SEAT LO

€ 9.00

11047F

110471858
ref: 11047F

BRACKET,IGNITER

€ 9.00

11047G

110471967
ref: 11047G

BRACKET

€ 11.50

11049

110491701
ref: 11049

BRACKET,FUEL FILTER

€ 12.00

32037

320371564
ref: 32037

BRACKET-SHOCKABSORBER

€ 28.00

34003

340031327
ref: 34003

HOLDER-STEP,FR,RH

€ 22.50

35011

350111552
ref: 35011

STAY,FR,LH

€ 116.00

35011A

350111553
ref: 35011A

STAY,FR,RH

€ 116.00

35011B

350111554
ref: 35011B

STAY,RR,LH

€ 119.50

35011C

350111555
ref: 35011C

STAY,RR,RH

€ 119.50

35011D

350111559
ref: 35011D
AR

STAY,REAR GRIP,LH

€ 23.00

35011E

350111560
ref: 35011E
AR

STAY,REAR GRIP,RH

€ 23.00

35011F

350111566
ref: 35011F
EUFGFRGRITNLNRSPSTUK

STAY,REAR GRIP,LH

€ 19.50

35011G

350111567
ref: 35011G
EUFGFRGRITNLNRSPSTUK

STAY,REAR GRIP,RH

€ 22.00

35011H

350111628
ref: 35011H

STAY,TAIL LAMP

€ 62.00

35011I

350111632KF
ref: 35011I

STAY,REAR FRAME,SILVE

€ 372.00

39012

390121056
ref: 39012

CASE-STORAGE

€ 13.00

46075

460751100H8
ref: 46075
AREUFGFRGRITNLSPSTUK

GRIP,GRABRAIL,EBONY

€ 138.00

46075B

460751100R1
ref: 46075B

GRIP,GRABRAIL,P.A.WHI

€ 138.00

92002

920021445
ref: 92002

BOLT,FLANGED,8X30

€ 3.00

92009

920091662
ref: 92009

SCREW

€ 2.50

92015

920151367
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92015A

920151387
ref: 92015A

NUT,FLANGED,10MM

€ 2.50

92015B

920151406
ref: 92015B

NUT,8MM

€ 3.00

92015C

920151791
ref: 92015C

NUT,POP,6MM

€ 3.00

92015D

920151794
ref: 92015D

NUT,POP,8MM

€ 3.00

92015E

920151881
ref: 92015E

NUT,FLANGED,16MM

€ 16.50

130

130H0825
ref: 130

BOLT-FLANGED

€ 0.50

130A

130J0614
ref: 130A

BOLT-FLANGED,6X14,BLA

€ 1.50

130B

130J0616
ref: 130B

BOLT-FLANGED,6X16

€ 1.50

130C

130J0635
ref: 130C

BOLT-FLANGED,6X35

€ 3.00

130D

130J0655
ref: 130D

BOLT-FLANGED,6X55,BLA

€ 3.00

130E

130J0816
ref: 130E

BOLT-FLANGED,8X16,BLA

€ 0.50

130F

130J0820
ref: 130F

BOLT-FLANGED,8X20

€ 0.50

315

315B1600
ref: 315

NUT-HEX-FINE,16MM

€ 2.50

550

550D4025
ref: 550

PIN,COTTER,4X25

€ 0.50

92150

921501268
ref: 92150

BOLT,10X25

€ 4.00

92150A

921501295
ref: 92150A

BOLT,10X35

€ 6.00

92150B

921501517
ref: 92150B

BOLT,SOCKET,10X30

€ 5.50

92150C

921501839
ref: 92150C

BOLT

€ 1.50
