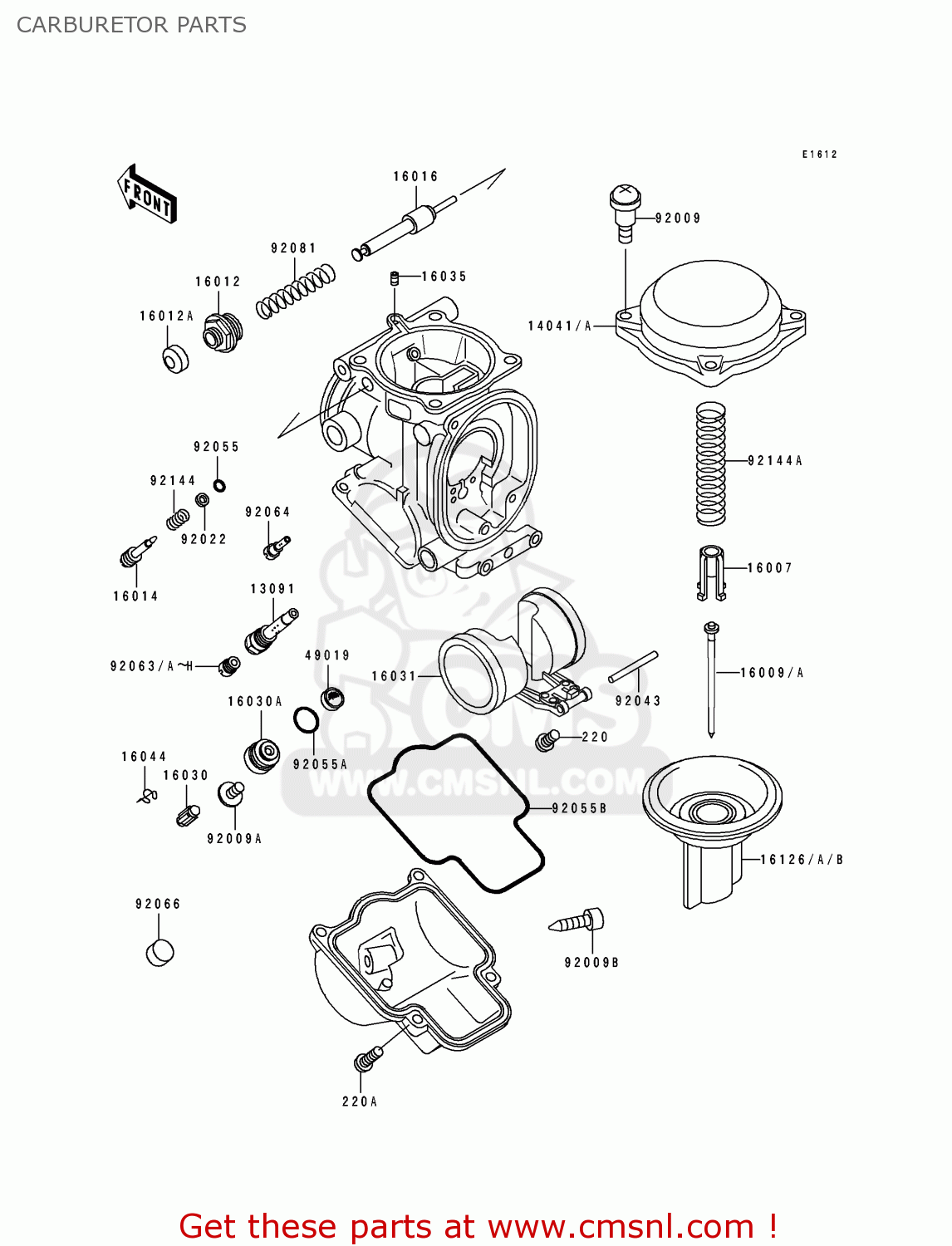

CARBURETOR PARTS

ref

part #

description

quantity

13091

130911837
ref: 13091

HOLDER,NEEDLE JET

€ 15.50

14041

140411100
ref: 14041
EUFRGRITNLNRSPSTUK

COVER-COMP,MIXING

€ 61.50

14041A

140411102
ref: 14041A
ARFG

COVER-COMP,MIXING

€ 48.50

16007

160071117
ref: 16007

SEAT-SPRING,THROTTLE

€ 16.50

16009

160091778
ref: 16009

NEEDLE-JET,N74E

€ 19.50

16009A

160091779
ref: 16009A

NEEDLE-JET,N14I

€ 20.00

16012

160121051
ref: 16012

CAP-STARTER PLUNGER

€ 7.00

16012A

160121052
ref: 16012A

CAP-STARTER PLUNGER

€ 10.00

16014

160141073
ref: 16014

SCREW-PILOT AIR

€ 16.00

16016

160161061
ref: 16016

PLUNGER,STARTER

€ 30.50

16030

160301007
ref: 16030

FLOAT VALVE ASSY

€ 37.00

16030A

160301068
ref: 16030A

SEAT-VALVE,FLOAT

€ 42.50

16031

160311070
ref: 16031

FLOAT

€ 40.50

16035

160351055
ref: 16035

JET-AIR,LEAK

€ 10.00

16044

16044007
ref: 16044

CLIP, FLOAT VALVE

€ 4.00

16126

161261237
ref: 16126
AREUFGFRGRITNLNRSPUK

VALVE,VACUUM

€ 185.50

16126B

161261271
ref: 16126B
ST

VALVE,VACUUM

€ 128.50

49019

490193707
ref: 49019

FILTER-FUEL,STRAINER

€ 7.00

92009

920091549
ref: 92009

SCREW,4X4.4

€ 3.00

92009A

920091550
ref: 92009A

SCREW,4X8

€ 2.50

92009B

920091551
ref: 92009B

SCREW,DRAIN

€ 6.50

92022

920221003
ref: 92022

WASHER,PLAIN

€ 2.50

92043

920431207
ref: 92043

PIN,FLOAT

€ 6.00

92055

920551002
ref: 92055

O RING,PILOT ADJUST

€ 2.50

92055A

920551425
ref: 92055A

RING-O,VALVE SEAT

€ 4.50

92055B

920551426
ref: 92055B

RING-O,FLOAT CHAMBER

€ 13.00

92063

920631345
ref: 92063

JET-MAIN,#160

€ 9.50

92063A

920631347
ref: 92063A

JET-MAIN,#165

€ 10.50

92063B

920631386
ref: 92063B

JET-MAIN,#170

€ 10.50

92063C

920631387
ref: 92063C

JET-MAIN,#175

€ 11.00

92063D

920631388
ref: 92063D

JET-MAIN,#180

€ 10.50

220

220D0408
ref: 220

SCREW-PAN-CROS

€ 0.50

220A

220D0414
ref: 220A

SCREW-PAN-CROS

€ 2.00

92063E

920631390
ref: 92063E

JET-MAIN,#185

€ 9.00

92063F

920631391
ref: 92063F

JET-MAIN,#190

€ 10.50

92063G

920631392
ref: 92063G

JET-MAIN,#195

€ 8.00

92063H

920631401
ref: 92063H

JET-MAIN,#200

€ 8.00

92064

920641050
ref: 92064

JET-PILOT,#38

€ 12.50

92066

920661051
ref: 92066
ST

PLUG,PILOT AIR SCREW,

€ 3.00

92081

920811761
ref: 92081

SPRING,STARTER PLUNGE

€ 6.00

92144

921441349
ref: 92144

SPRING,PILOT AIR SCRE

€ 6.00

92144A

921441517
ref: 92144A

SPRING

€ 13.50

all assemblies
