Genuine ZX Kawasaki Parts delivered quickly!


RADIATOR

ZX750L2 NINJA ZX7 1994 USA CALIFORNIA CANADA

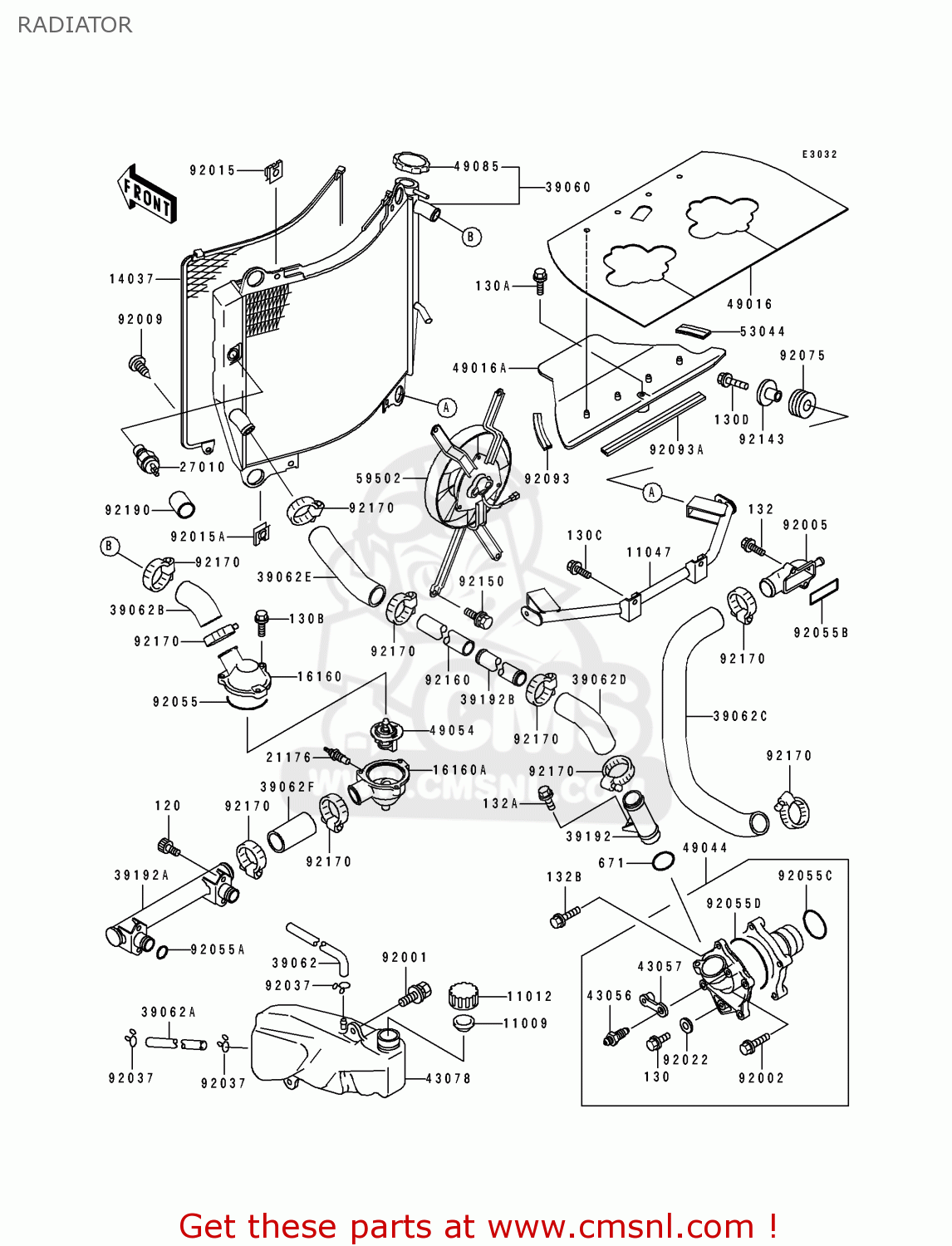

Radiator diagram ZX750L2 NINJA ZX7 1994 USA CALIFORNIA CANADA

RADIATOR ZX750L2 NINJA ZX7 1994 USA CALIFORNIA CANADA
RADIATOR ZX750L2 NINJA ZX7 1994 USA CALIFORNIA CANADA
RADIATOR ZX750L2 NINJA ZX7 1994 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
11047
110471237
ref: 11047
BRACKET,RADIATOR
110471237
€ 42.00
14037
140371138
ref: 14037
SCREEN
140371138
€ 51.50
16160
161601175
ref: 16160
BODY,THERMOSTAT,UPP
161601175
€ 37.00
16160A
161601176
ref: 16160A
BODY,THERMOSTAT,LWR
€ 37.00
21176
211761054
ref: 21176
SENSOR,WATER
211761054
€ 49.50
27010
270101202
ref: 27010
SWITCH,FAN
270101202
€ 74.00
39060
390601106
ref: 39060
RADIATOR
390601106
€ 576.00
39062
390621194
ref: 39062
HOSE-COOLING,L=997
390621194
€ 17.50
39062A
390621226
ref: 39062A
HOSE-COOLING
€ 25.00
39062B
390621444
ref: 39062B
HOSE-COOLING
390621444
€ 13.50
39062C
390621445
ref: 39062C
HOSE-COOLING,PUMP-CYL
390621445
€ 37.50
39062D
390621472
ref: 39062D
HOSE-COOLING,WATER PU
390621472
€ 17.00
39062E
390621473
ref: 39062E
HOSE-COOLING,RADIATOR
390621473
€ 28.50
39062F
390621489
ref: 39062F
HOSE-COOLING,HEAD-THE
390621489
€ 12.00
39192
391921041
ref: 39192
PIPE-WATER
391921041
€ 23.50
39192A
391921042
ref: 39192A
PIPE-WATER
391921042
€ 80.00
39192B
391921047
ref: 39192B
PIPE-WATER
391921047
€ 21.50
43056
430561051
ref: 43056
BREATHER-BRAKE
430561051
€ 10.00
43057
430571001
ref: 43057
CAP-BREATHER
430571001
€ 3.00
43078
430781129
ref: 43078
RESERVOIR
430781129
€ 35.50
49016
490161162
ref: 49016
COVER-SEAL
€ 23.50
49016A
490161163
ref: 49016A
COVER-SEAL
490161163
€ 23.50
49044
490441069
ref: 49044
PUMP-WATER
€ 261.50
49054
490541051
ref: 49054
THERMOSTAT
490541051
€ 44.50
49085
490851067
ref: 49085
CAP-ASSY-PRESSURE
490851067
€ 39.50
53044
530441220
ref: 53044
TRIM
530441220
€ 4.50
59502
595021100
ref: 59502
FAN-ASSY
595021100
€ 446.00
92001
920011927
ref: 92001
BOLT,6X16
€ 2.50
92002
920021392
ref: 92002
BOLT,6X22
920021392
€ 3.00
92005
920051268
ref: 92005
FITTING
920051268
€ 23.00
92009
920091261
ref: 92009
SCREW,TAPPING,6MM
920091261
€ 2.00
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92015A
920151758
ref: 92015A
NUT
920151758
€ 4.50
92022
920221976
ref: 92022
WASHER,6.2X6.2X1.0
920221976
€ 4.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92055
92055112
ref: 92055
O RING, 53.5 M/M
92055112
€ 4.00
92055A
920551282
ref: 92055A
RING-O
920551282
€ 3.00
92055B
920551402
ref: 92055B
RING-O
920551402
€ 5.00
120
120P0612
ref: 120
BOLT,SOCKET,6X12
120P0612
€ 1.00
130
130C0610
ref: 130
BOLT-FLANGED,6X10,BLA
130C0610
€ 1.50
130A
130G0640
ref: 130A
BOLT,FLANGED,6X40
130G0640
€ 0.50
130B
130J0520
ref: 130B
BOLT-FLANGED
130J0520
€ 2.00
130C
130J0610
ref: 130C
BOLT-FLANGED
130J0610
€ 1.50
130D
130J0625
ref: 130D
BOLT-FLANGED,6X25
130J0625
€ 2.00
132
132G0625
ref: 132
BOLT-FLANGED-SMALL
132G0625
€ 3.00
132A
132J0612
ref: 132A
BOLT-FLANGED-SMALL
132J0612
€ 2.50
132B
132J0645
ref: 132B
BOLT-FLANGED-SMALL
€ 3.00
671
671B2525
ref: 671
O RING,25MM
671B2525
€ 3.00
92055C
920551424
ref: 92055C
RING-O,33.2X2.4
920551424
€ 4.00
92055D
920551495
ref: 92055D
RING-O,WATER PUMP
920551495
€ 8.00
92075
920751665
ref: 92075
DAMPER
920751665
€ 5.00
92093
920931276
ref: 92093
SEAL
920931276
€ 8.00
92093A
920931327
ref: 92093A
SEAL
920931327
€ 15.00
92143
921431063
ref: 92143
COLLAR
921431063
€ 6.00
92150
921501186
ref: 92150
BOLT
921501186
€ 3.00
92160
921601297
ref: 92160
DAMPER,WATER PIPE
921601297
€ 7.00
92170
921701284
ref: 92170
CLAMP,CABLE
921701284
€ 7.50
92190
921901233
ref: 92190
TUBE,SWITCH
€ 2.00
