GEAR CHANGE MECHANISM

ZX750L2 NINJA ZX7 1994 USA CALIFORNIA CANADA

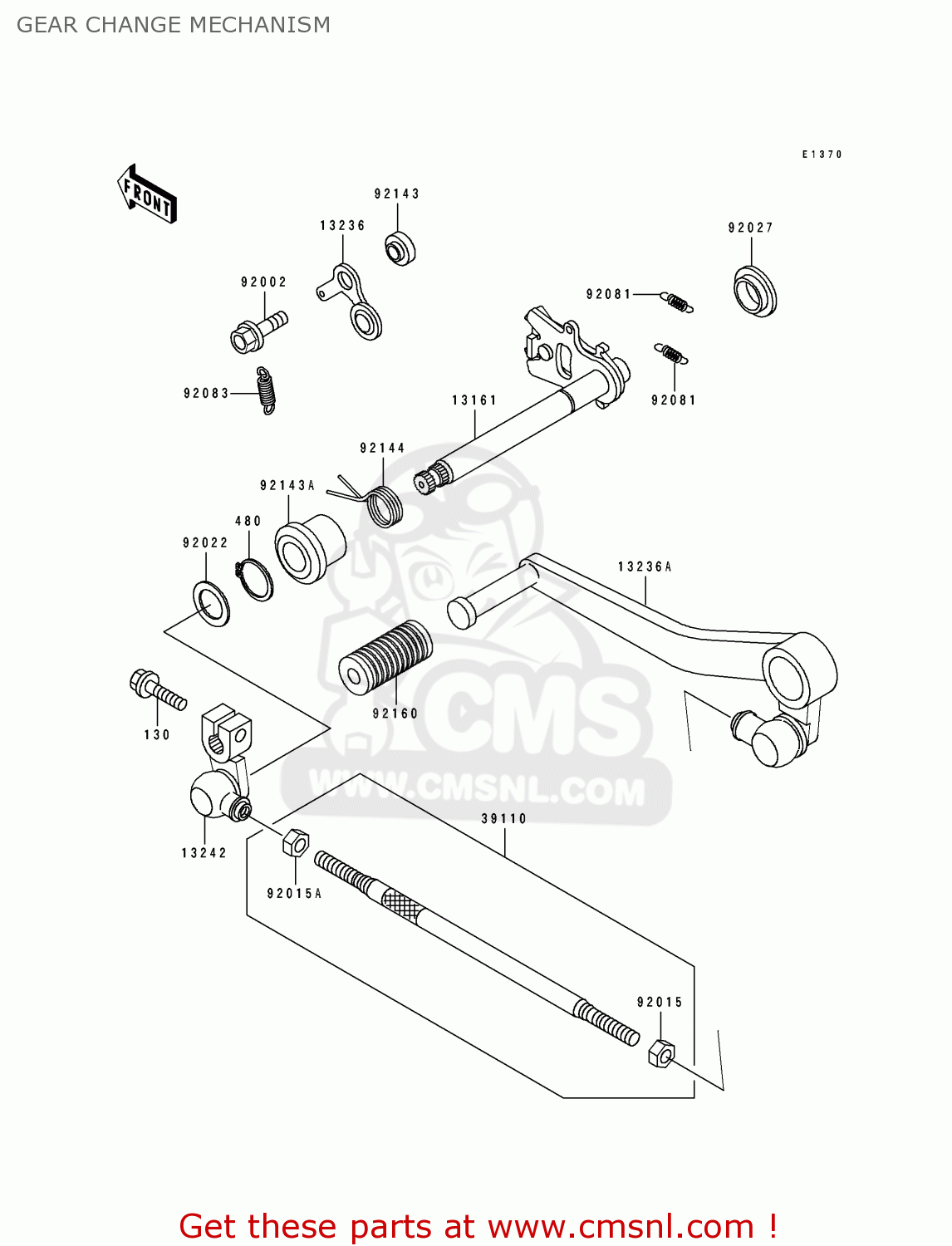

Gear change mechanism diagram ZX750L2 NINJA ZX7 1994 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130S0620
ref: 130

BOLT-FLANGED,6X20,BLA

€ 2.50

480

480J1300
ref: 480

CIRCLIP-TYPE-C,13MM

€ 2.50

13161

131611193
ref: 13161

LEVER-COMP-CHANGE SHA

€ 42.00

13236

132361189
ref: 13236

LEVER-COMP,POSITION

€ 7.50

13236A

132361204
ref: 13236A

LEVER-COMP,CHANGE PED

€ 47.00

13242

132421278
ref: 13242

LEVER-ASSY-CHANGE,LIN

€ 26.00

39110

391101105
ref: 39110

ROD-ASSY-TIE

€ 18.50

92002

920021571
ref: 92002

BOLT,6X16

€ 4.00

92015

920151443
ref: 92015

NUT

€ 2.50

92015A

920151444
ref: 92015A

NUT

€ 3.00

92022

920221496
ref: 92022

WASHER,13.3X20X1

€ 2.50

92027

920271512
ref: 92027

COLLAR,CHANGE SHAFT,L

€ 8.00

92081

92081076
ref: 92081

SPRING-CHANG LEVER

€ 3.50

92083

92083012
ref: 92083

SPRING,CHNG DRUM LEV

€ 3.00

92143

921431055
ref: 92143

COLLAR

€ 4.50

92143A

921431498
ref: 92143A

COLLAR,RETURN SPRING

€ 7.00

92144

921441628
ref: 92144

SPRING,CHANGE SHAFT R

€ 6.50

92160

921601036
ref: 92160

DAMPER,CHANGE PEDAL

€ 3.50
