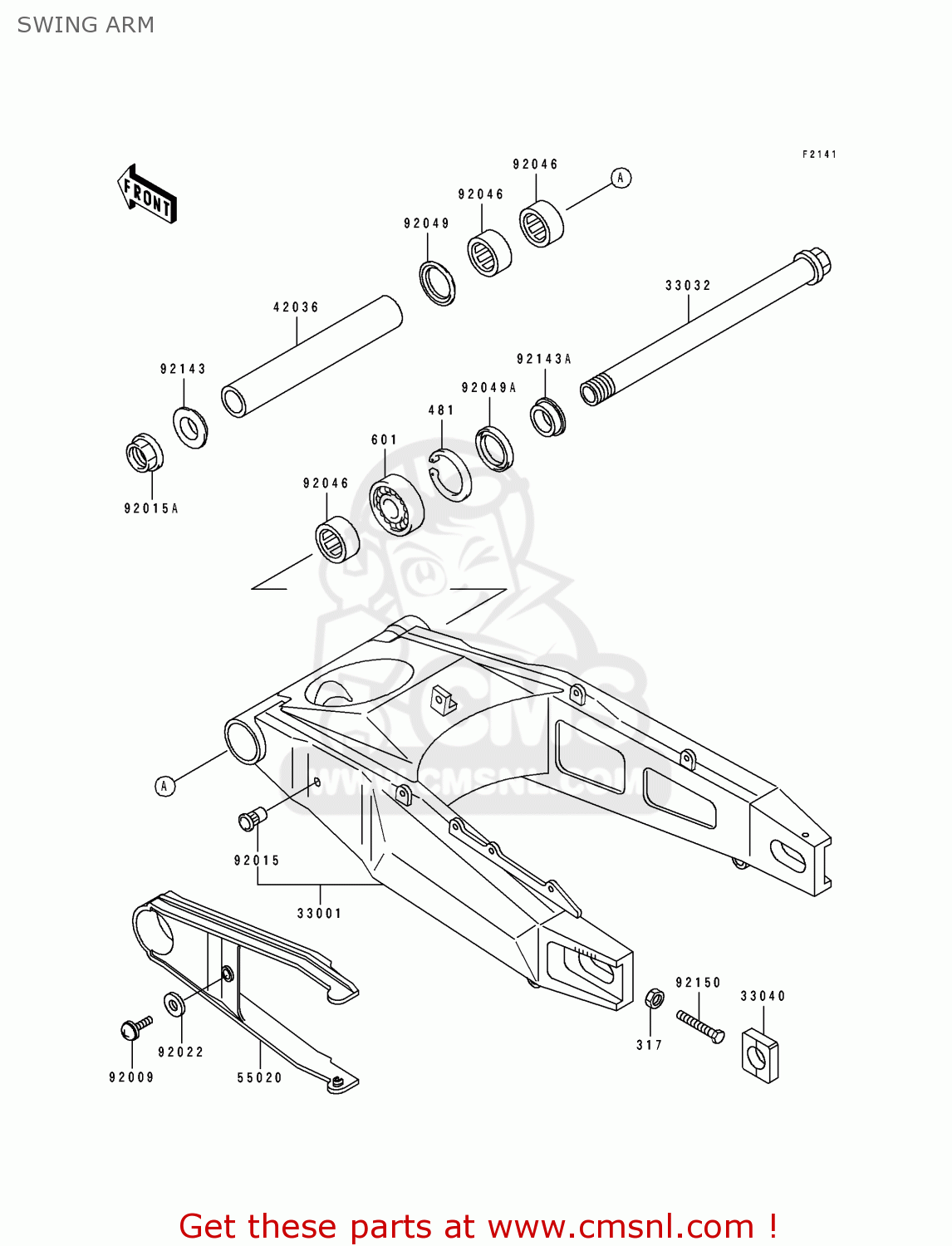

SWING ARM

ref

part #

description

quantity

317

317G0800
ref: 317

NUT-HEX-SMALL,8MM

€ 0.50

481

481J4700
ref: 481

CIRCLIP,47MM

€ 4.00

601

601B6005U
ref: 601

BEARING-BALL,#6005U

€ 25.00

33001

330011378KF
ref: 33001

ARM-COMP-SWING,SILVER

€ 1,230.50

33032

330321164
ref: 33032

SHAFT-SWING ARM

€ 55.50

33040

330401114
ref: 33040

ADJUSTER-CHAIN

€ 13.50

42036

420361284
ref: 42036

SLEEVE,SWING ARM,L=22

€ 54.00

55020

550201390
ref: 55020

GUARD,DRIVE CHAIN

€ 38.00

92009

920091663
ref: 92009

SCREW

€ 2.50

92015

920151792
ref: 92015

NUT,POP,6MM,L=16.5

€ 3.00

92015A

920151845
ref: 92015A

NUT,FLANGED,25MM

€ 17.00

92022

920221143
ref: 92022

WASHER,6.5X16X1

€ 2.50

92046

920461205
ref: 92046

BEARING-NEEDLE,BM3520

€ 29.00

92049

920491380
ref: 92049

SEAL-OIL,MHA 35 42 5.

€ 8.50

92049A

920491381
ref: 92049A

SEAL-OIL,MHA 35 47 5

€ 8.50

92143

921431480
ref: 92143

COLLAR,SWING ARM,LH,L

€ 14.50

92143A

921431481
ref: 92143A

COLLAR,SWING ARM,L=12

€ 20.50

92150

921501350
ref: 92150

BOLT

€ 1.50
