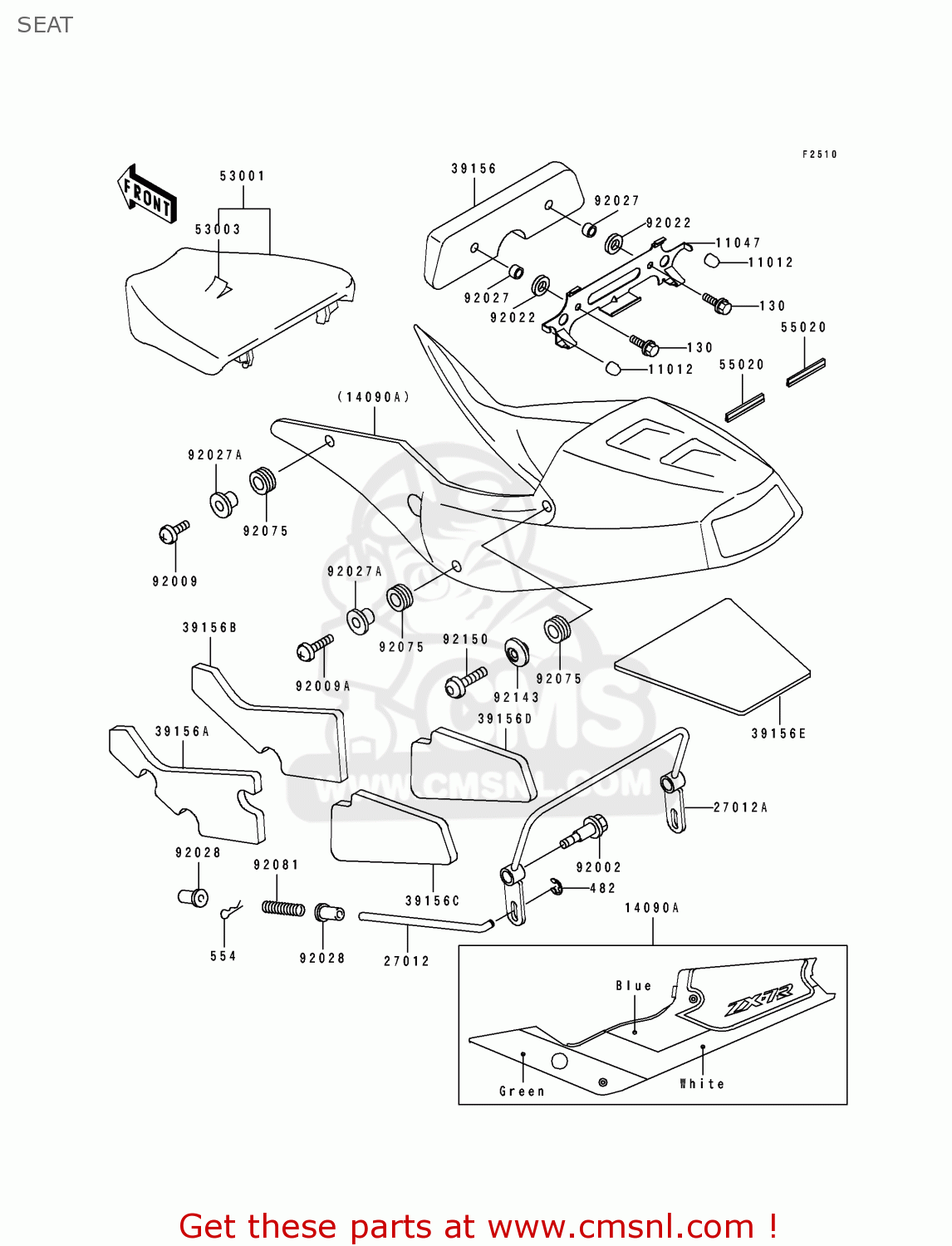

SEAT

ref

part #

description

quantity

130

130H0616
ref: 130

BOLT-FLANGED,6X16

€ 0.50

482

482L5000
ref: 482

CIRCLIP-TYPE-E,5MM

€ 1.00

554

554A0600
ref: 554

PIN-SNAP,SIDE STAND

€ 0.50

11012

110121438
ref: 11012

CAP

€ 3.00

11047

110471353
ref: 11047

BRACKET,SEAT PAD

€ 23.00

14090B

140905010KE
ref: 14090B

SEAT COVER,GREEN/WHITE/BLUE

€ 1,329.00

27012

270121436
ref: 27012

HOOK,SEAT,FR

€ 11.50

27012A

270121437
ref: 27012A

HOOK,SEAT,RR

€ 20.50

39156

391561228MA
ref: 39156

PAD,SEAT COVER

€ 161.00

39156A

391561252
ref: 39156A

PAD,SIDE COVER,FR,LH

€ 18.00

39156B

391561253
ref: 39156B

PAD,SIDE COVER,FR,RH

€ 18.00

39156C

391561254
ref: 39156C

PAD,SIDE COVER,RR,LH

€ 13.50

39156D

391561255
ref: 39156D

PAD,SIDE COVER,RR,RH

€ 13.50

39156E

391561262
ref: 39156E

PAD,SIDE COVER,CNT

€ 18.50

53001

530011627MA
ref: 53001

SEAT-ASSY,FR,BLACK

€ 215.00

53003

530031244MA
ref: 53003

LEATHER,FRONT SEAT,BL

€ 92.50

55020

550201413
ref: 55020

GUARD,SEAT COVER

€ 4.00

92002

920021595
ref: 92002

BOLT,HEAD COVER

€ 8.50

92009

920091287
ref: 92009

SCREW,6X14

€ 1.50

92009A

920091298
ref: 92009A

SCREW, 6X20

€ 2.00

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92027

92027103
ref: 92027

COLLAR

€ 2.50

92027A

920271166
ref: 92027A

COLLAR,FRONT FENDER

€ 4.00

92028

920281637
ref: 92028

BUSHING

€ 2.50

92075

920751634
ref: 92075

DAMPER

€ 3.00

92081

920811486
ref: 92081

SPRING,CLUTCH RELEASE

€ 4.00

92143

921431273
ref: 92143

COLLAR,WHITE

€ 11.50

92150

921501553
ref: 92150

BOLT,SOCKET,6X18

€ 4.00
