Genuine ZX Kawasaki Parts delivered quickly!


TRANSMISSION

ZX750H1 NINJA ZX7 1989 USA CALIFORNIA CANADA

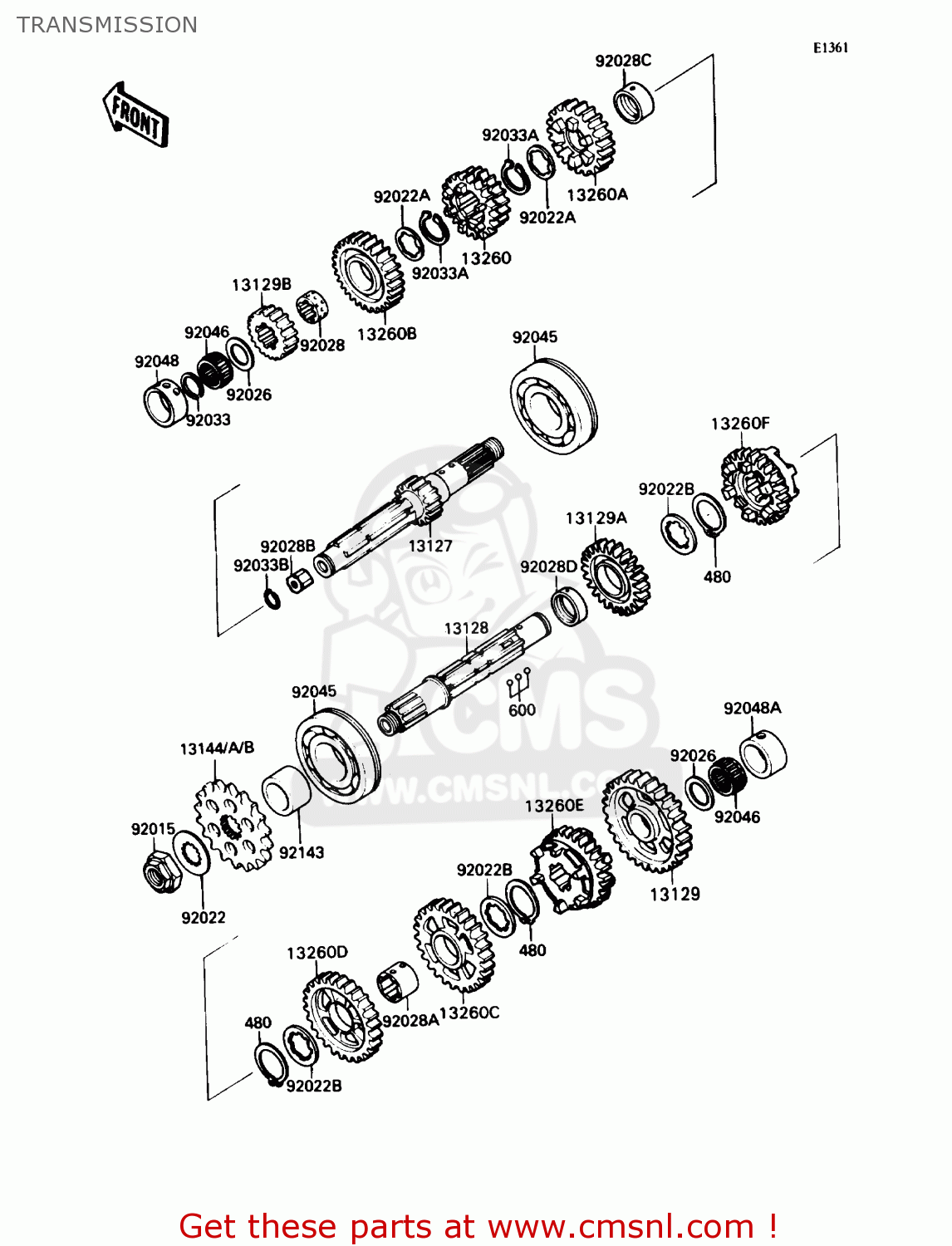

Transmission diagram ZX750H1 NINJA ZX7 1989 USA CALIFORNIA CANADA

TRANSMISSION ZX750H1 NINJA ZX7 1989 USA CALIFORNIA CANADA
TRANSMISSION ZX750H1 NINJA ZX7 1989 USA CALIFORNIA CANADA
TRANSMISSION ZX750H1 NINJA ZX7 1989 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
480
480J2900
ref: 480
CIRCLIP
480J2900
€ 3.50
600
600A0500
ref: 600
BALL-STEEL,5/32
600A0500
€ 0.50
13127
131271182
ref: 13127
SHAFT-TRANSMISSION IN
131271182
€ 175.50
13128
131281168
ref: 13128
SHAFT-TRANSMISSION OU
€ 152.50
13129
131291814
ref: 13129
GEAR,OUTPUT LOW,38T
131291814
€ 66.50
13129A
131291898
ref: 13129A
GEAR,OUTPUT 2ND,34T
131291898
€ 87.50
13129B
131291971
ref: 13129B
GEAR,INPUT,2ND,16T
€ 79.00
13144
131441009
ref: 13144
SPROCKET-OUTPUT,17T(#
131441009
€ 29.00
13144A
131441117
ref: 13144A
SPROCKET-OUTPUT,15T(#
131441117
€ 24.50
13144B
131441129
ref: 13144B
SPROCKET-OUTPUT,16T
131441129
€ 35.50
13260
132601025
ref: 13260
GEAR,INPUT 3RD&4TH,21
€ 122.00
13260A
132601026
ref: 13260A
GEAR,INPUT 5TH,23T
132601026
€ 59.50
13260B
132601027
ref: 13260B
GEAR,INPUT TOP,24T
€ 70.50
13260C
132601028
ref: 13260C
GEAR,OUTPUT 3RD,35T
132601028
€ 108.50
13260D
132601029
ref: 13260D
GEAR,OUTPUT 4TH,29T
132601029
€ 129.00
13260E
132601030
ref: 13260E
GEAR,OUTPUT 5TH,28T
€ 125.50
13260F
132601031
ref: 13260F
GEAR,OUTPUT TOP,26T
€ 94.00
92015
920151254
ref: 92015
NUT,20MM
920151254
€ 10.50
92022
920221076
ref: 92022
WASHER,LOCK,20M/M
920221076
€ 4.50
92022A
920221139
ref: 92022A
WASHER,TOOTHED,28.3X3
920221139
€ 4.00
92022B
92024043
ref: 92022B
WASHER,TOOTHED,30.3X4
92024043
€ 8.00
92026
920261224
ref: 92026
SPACER,22X35.5X2.1
920261224
€ 6.00
92028
920281255
ref: 92028
BUSHING,INPUT TOP GEA
920281255
€ 27.00
92028A
920281363
ref: 92028A
BUSHING,OUTPUT 3RD&4T
920281363
€ 30.50
92028B
920281448
ref: 92028B
BUSHING
920281448
€ 5.50
92028C
920281449
ref: 92028C
BUSHING,INPUT 5TH GEA
920281449
€ 17.50
92028D
920281450
ref: 92028D
BUSHING,OUTPUT 2ND
920281450
€ 16.00
92033
92033025
ref: 92033
CIRCLIP,25MM
92033025
€ 3.00
92033A
920331037
ref: 92033A
SNAP RING,25.9X1.2T
920331037
€ 3.00
92033B
92036005
ref: 92033B
CIRCLIP-PISTON PIN
92036005
€ 2.50
92045
920451224
ref: 92045
BEARING-BALL,6305N2SH
920451224
€ 40.00
92046
92046031
ref: 92046
BEARING-NEEDLE,FWF-22
92046031
€ 19.50
92048
920481066
ref: 92048
RACE,NEEDLE BEARING
920481066
€ 25.50
92048A
920481067
ref: 92048A
RACE,0RZ30X38X17PX1
920481067
€ 39.00
92143
921431293
ref: 92143
COLLAR,25X32X25.9
921431293
€ 15.00
