Genuine ZX Kawasaki Parts delivered quickly!


COWLING

ZX750H1 NINJA ZX7 1989 USA CALIFORNIA CANADA

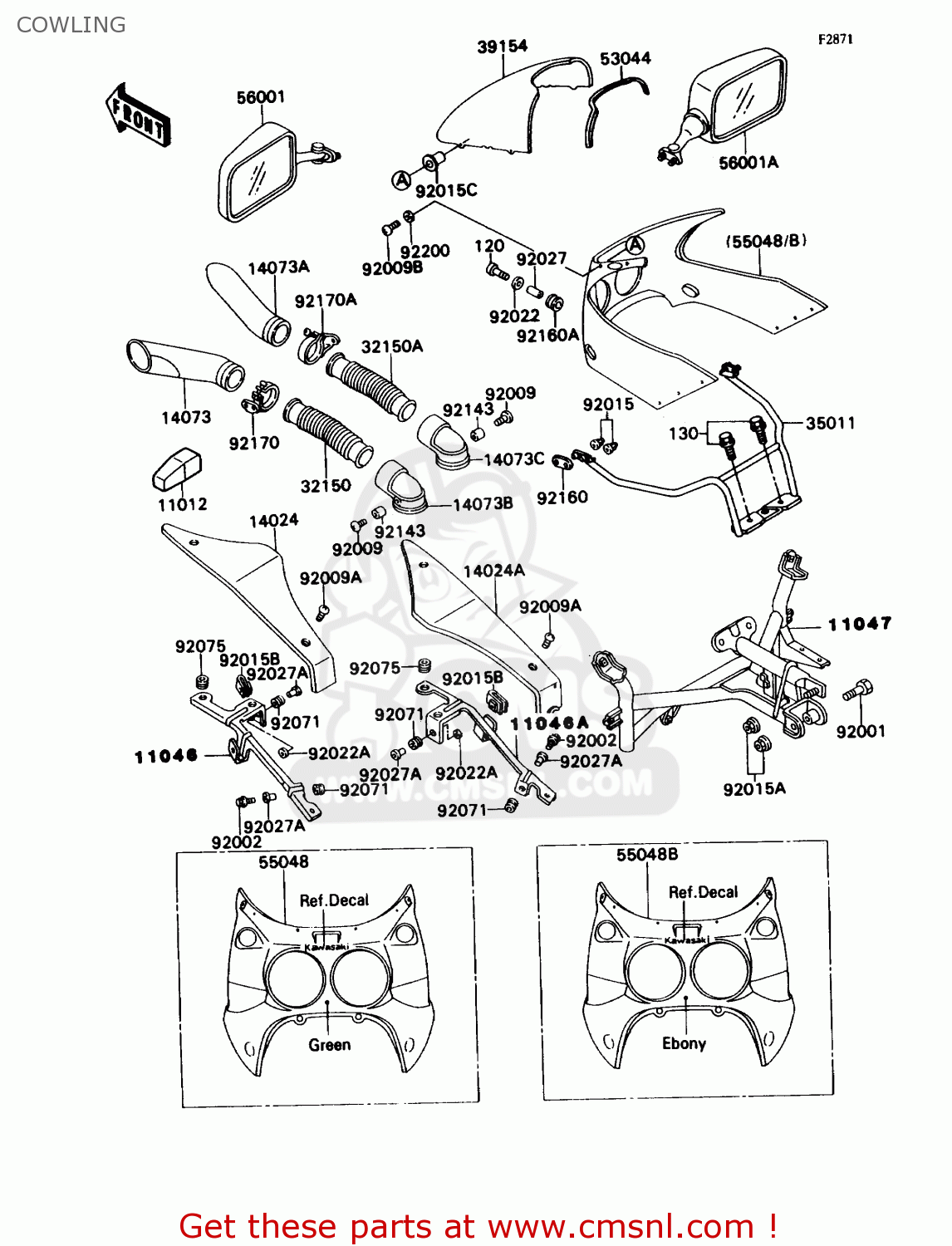

Cowling diagram ZX750H1 NINJA ZX7 1989 USA CALIFORNIA CANADA

COWLING ZX750H1 NINJA ZX7 1989 USA CALIFORNIA CANADA
COWLING ZX750H1 NINJA ZX7 1989 USA CALIFORNIA CANADA
COWLING ZX750H1 NINJA ZX7 1989 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11012
110121718
ref: 11012
CAP,CLAMP
110121718
€ 3.50
11046
110461745
ref: 11046
BRACKET,INNER COWLING
110461745
€ 38.00
11046A
110461746
ref: 11046A
BRACKET,INNER COWLING
110461746
€ 38.00
11047
110471116
ref: 11047
BRACKET,UPPER COWLING
110471116
€ 212.00
14024
140241823
ref: 14024
COVER,INNER COWLING,L
140241823
€ 13.00
14024A
140241824
ref: 14024A
COVER,INNER COWLING,R
140241824
€ 12.50
14073
140731395
ref: 14073
DUCT,AIR INTAKE,FR,LH
140731395
€ 17.00
14073A
140731396
ref: 14073A
DUCT,AIR INTAKE,FR,RH
140731396
€ 17.00
14073B
140731397
ref: 14073B
DUCT,AIR INTAKE,RR,LH
140731397
€ 14.00
14073C
140731398
ref: 14073C
DUCT,AIR INTAKE,RR,RH
140731398
€ 15.50
32150
321501387
ref: 32150
PIPE,AIR INTAKE,LH
321501387
€ 89.50
32150A
321501388
ref: 32150A
PIPE,AIR INTAKE,RH
321501388
€ 100.50
35011
350111476
ref: 35011
STAY,MIRROR
350111476
€ 75.00
39154
391541087
ref: 39154
WINDSHIELD
€ 300.50
53044
530441228
ref: 53044
TRIM,WINDSHIELD
530441228
€ 8.50
55048
5504851707F
ref: 55048
COWLING.,UPP,L.GREEN
€ 786.50
55048B
550485188H8
ref: 55048B
COWLING,UPPER,EBONY
€ 625.00
56001
5600113796C
ref: 56001
MIRROR-ASSY,LH,EBONY
€ 81.50
56001A
5600113806C
ref: 56001A
MIRROR-ASSY,RH,EBONY
€ 81.50
92001
920011614
ref: 92001
BOLT,FLANGED,8X50
920011614
€ 3.50
92002
920021676
ref: 92002
BOLT,FLANGED,8X22
920021676
€ 2.50
92009
920091182
ref: 92009
SCREW,5X12,BLACK
920091182
€ 1.50
92009A
920091383
ref: 92009A
SCREW,5X14
920091383
€ 2.50
92009B
920091572
ref: 92009B
SCREW,5X15
920091572
€ 2.00
92015
920151170
ref: 92015
NUT,CAP 6MM,BLACK
920151170
€ 0.50
92015A
920151183
ref: 92015A
NUT,FLANGED,8MM,BLACK
€ 1.00
92015B
920151261
ref: 92015B
NUT,COVER,SIDE
920151261
€ 4.50
92015C
920151757A
ref: 92015C
NUT,5MM
920151757A
€ 5.00
92022
920221344
ref: 92022
WASHER,7X16X1.2
920221344
€ 2.50
92022A
920221561
ref: 92022A
WASHER,8.5X20X1.6
920221561
€ 2.50
92027
920271210
ref: 92027
COLLAR,6.8X10X11.5L
920271210
€ 7.00
92027A
920271842
ref: 92027A
COLLAR,L=12
920271842
€ 4.50
92071
920711010
ref: 92071
GROMMET
920711010
€ 3.00
92075
920751126
ref: 92075
DAMPER,CLEANER COVER
920751126
€ 6.00
92143
921431336
ref: 92143
COLLAR,5.6X8X6
921431336
€ 1.00
92160
921601089
ref: 92160
DAMPER,MIRROR
921601089
€ 4.50
92160A
921601123
ref: 92160A
DAMPER
921601123
€ 2.00
92170
921701102
ref: 92170
CLAMP,AIR INTAKE DUCT
921701102
€ 10.50
92170A
921701103
ref: 92170A
CLAMP,AIR INTAKE DUCT
921701103
€ 10.50
120
120S0620
ref: 120
BOLT-SOCKET,6X20
120S0620
€ 1.00
130
130J0620
ref: 130
BOLT-FLANGED,6X20
130J0620
€ 2.50
92200
922001011
ref: 92200
WASHER,NYLON,5.2X12X1
922001011
€ 2.00
