TAILLIGHT(S)
ZX750F2A GPX750R 1988 UNITED KINGDOM

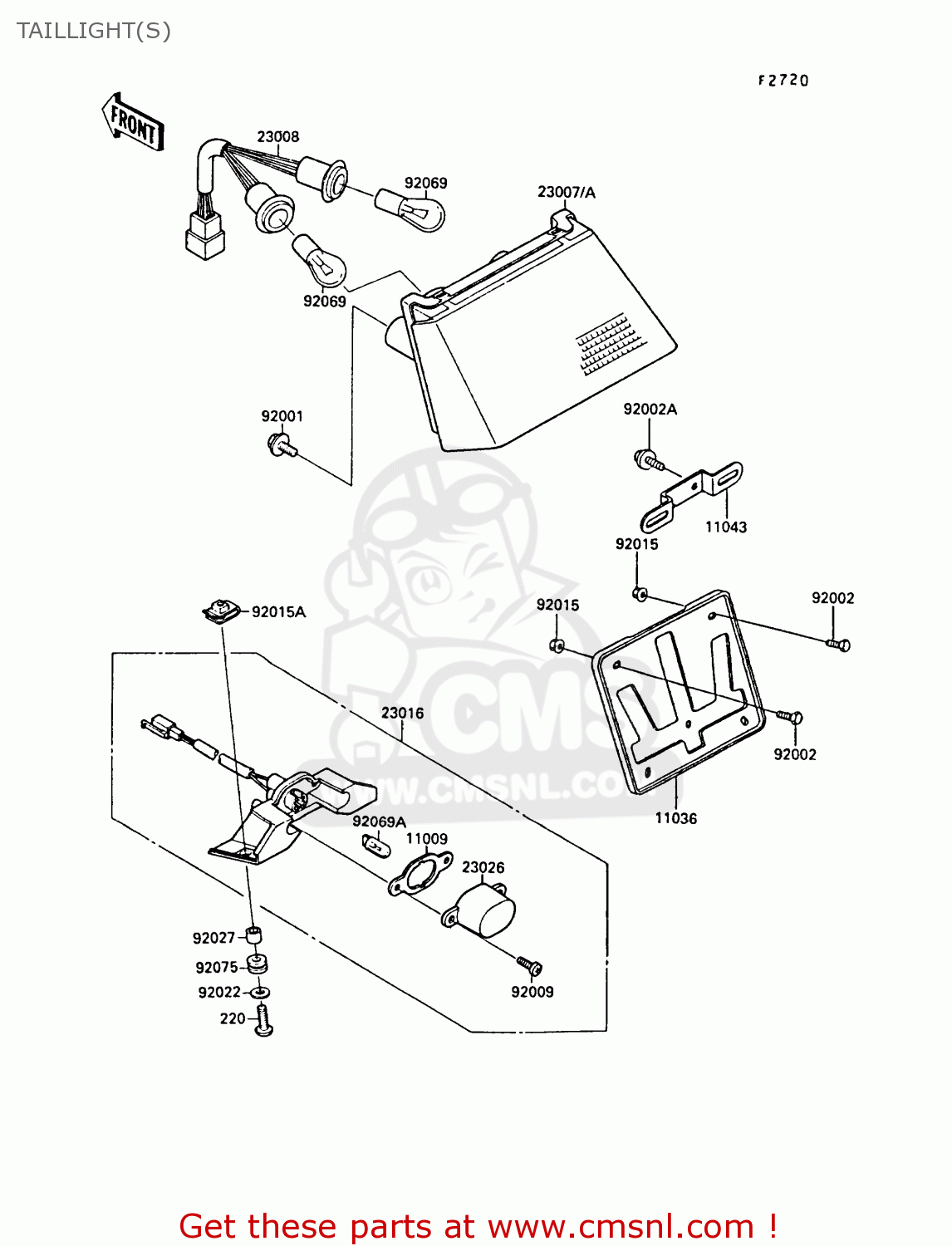

Taillight(s) diagram ZX750F2A GPX750R 1988 UNITED KINGDOM
TAILLIGHT(S) ZX750F2A GPX750R 1988 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
220
220C0520
ref: 220
SCREW-PAN-CROS
€ 0.50
11009
110091619
ref: 11009
GASKET,LICENSE PLATE
€ 3.50
11043
110431499
ref: 11043
BRACKET,REFLECTOR
€ 12.00
23007A
230071164
ref: 23007A
LENS-COMP,TAIL LAMP
€ 108.50
23008
230081319
ref: 23008
SOCKET-ASSY,TAIL LAMP
€ 21.00
23016
230161076
ref: 23016
LAMP-ASSY,LICENSE PLA
€ 37.50
23026
230261084
ref: 23026
LENS,LICENSE PLATE LA
€ 13.50
92001
920011771
ref: 92001
BOLT,6X12
€ 2.50
92002A
920021351
ref: 92002A
BOLT
€ 2.50
92009
920091395
ref: 92009
SCREW
€ 2.50
92015A
920151621
ref: 92015A
NUT,5MM
€ 4.00
92022
25009004
ref: 92022
WASHER,5.2X16X1.2T
€ 2.50
92027
920271923
ref: 92027
COLLAR,5.6X8X8.8
€ 3.50
92069
92069063
ref: 92069
BULB 12V 21/5W
€ 4.50
92069A
920691065
ref: 92069A
BULB,12V 5W
€ 2.50
92075
920751912
ref: 92075
DAMPER
€ 3.50
