CARBURETOR PARTS
ZX750F2A GPX750R 1988 UNITED KINGDOM

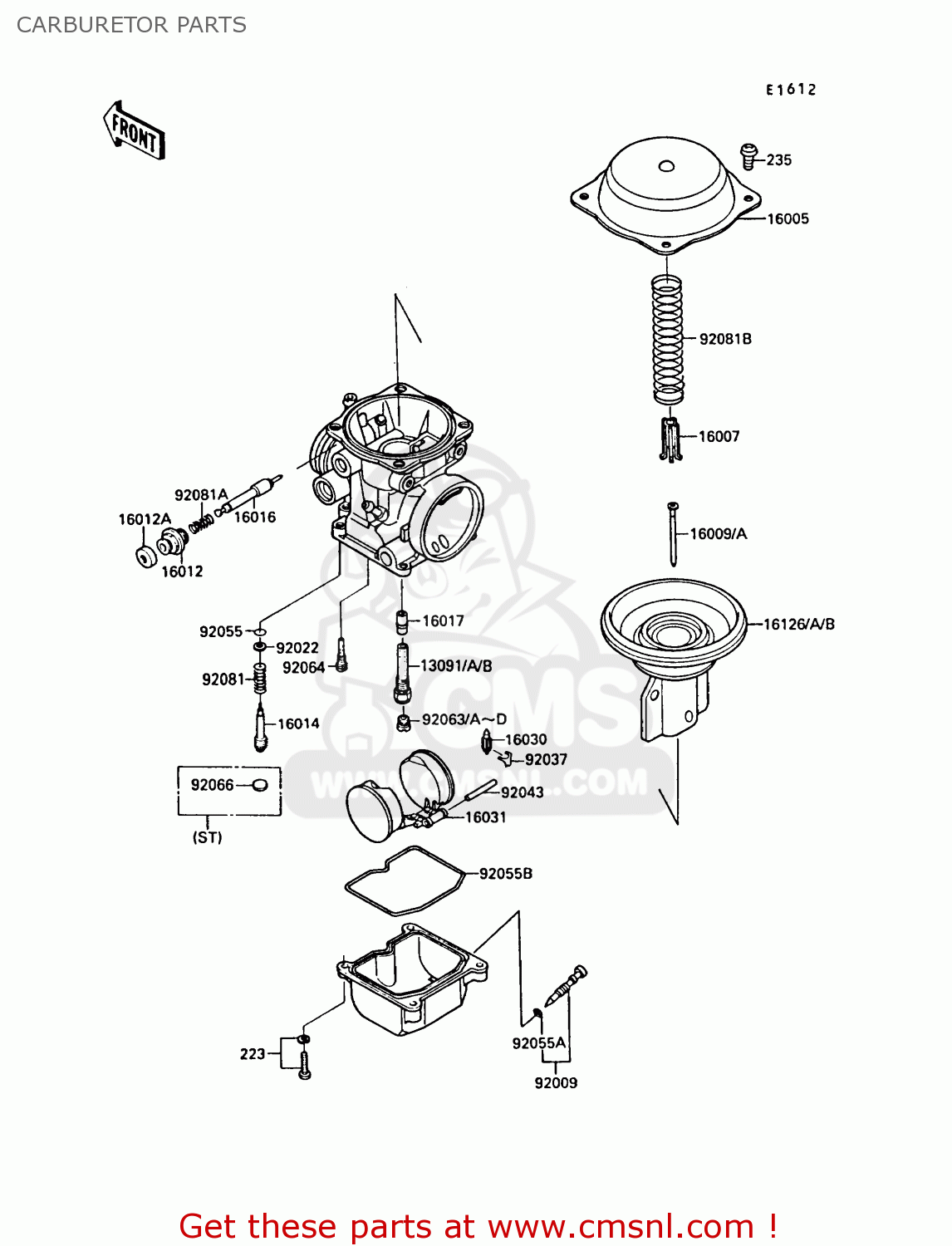

Carburetor parts diagram ZX750F2A GPX750R 1988 UNITED KINGDOM
CARBURETOR PARTS ZX750F2A GPX750R 1988 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
13091A
130911347
ref: 13091A
HOLDER,NEEDLE JET
€ 20.00
16005
160051063
ref: 16005
TOP-CHAMBER,MIXING
€ 52.00
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
€ 16.50
16009
160091339
ref: 16009
NEEDLE-JET,N53I
€ 19.00
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
€ 10.00
16014
160141054
ref: 16014
SCREW-PILOT AIR
€ 15.50
16016
160161061
ref: 16016
PLUNGER,STARTER
€ 30.50
16017
160171327
ref: 16017
JET-NEEDLE
€ 35.00
16030
160301007
ref: 16030
FLOAT VALVE ASSY
€ 37.00
16031
160311056
ref: 16031
FLOAT
€ 39.00
16126
161261173
ref: 16126
VALVE,VACUUM
€ 159.50
92009
920091095
ref: 92009
SCREW,DRAIN
€ 10.00
92022
920221003
ref: 92022
WASHER,PLAIN
€ 2.50
92037
16044007
ref: 92037
CLIP, FLOAT VALVE
€ 4.00
92043
920431207
ref: 92043
PIN,FLOAT
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
€ 2.50
92055A
920551053
ref: 92055A
O RING,DRAIN SCREW
€ 3.00
92055B
920551222
ref: 92055B
RING-O,FLOAT CHAMBER
€ 12.50
92063
920631007
ref: 92063
MAIN JET, #110
€ 9.50
92063A
920631071
ref: 92063A
JET-MAIN,#118
€ 9.50
92063B
920631116
ref: 92063B
JET-MAIN,#108
€ 9.50
92063C
920631117
ref: 92063C
JET-MAIN,#112
€ 9.50
92063D
920631118
ref: 92063D
JET-MAIN,#115
€ 9.50
92064
920641101
ref: 92064
JET-PILOT,#35
€ 11.50
223
223C0416
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
235
235B0408
ref: 235
SCREW-PAN-WP-CROS
€ 1.50
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
€ 3.50
92081A
920811761
ref: 92081A
SPRING,STARTER PLUNGE
€ 6.00
92081B
920811874
ref: 92081B
SPRING,VACUUM VALVE
€ 17.50
