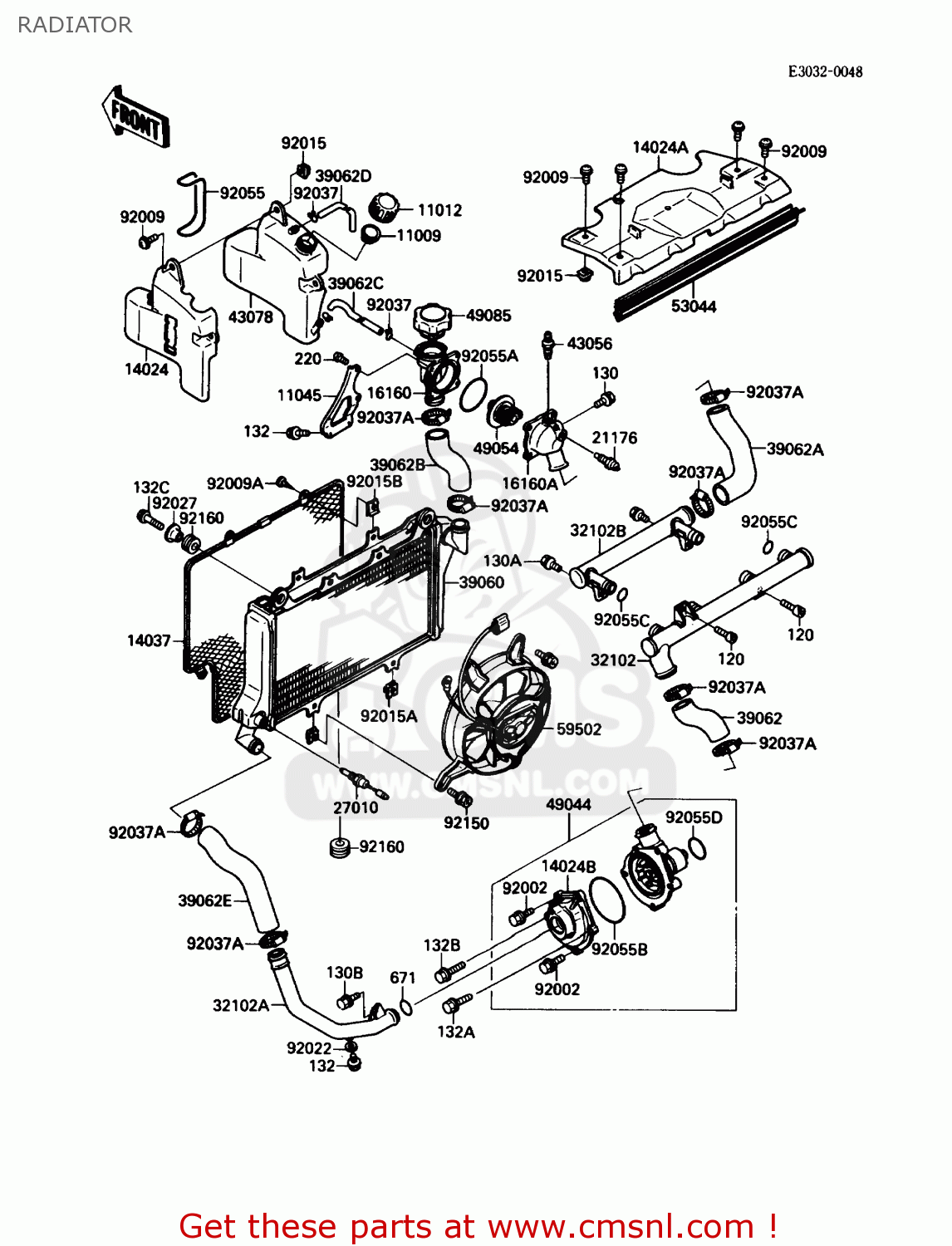

RADIATOR

ref

part #

description

quantity

11009

110091145
ref: 11009

GASKET,RESERVOIR TANK (NAS)

€ 1.00

11012

110121084
ref: 11012

CAP

€ 1.50

11045

110451249
ref: 11045

BRACKET,THERMOSTAT

€ 6.00

14024

140241342
ref: 14024

COVER,RESERVOIR

€ 10.00

14024A

140241343
ref: 14024A

COVER

€ 47.00

14024B

140241428
ref: 14024B

COVER,WATER PUMP

€ 38.00

14037

140371085
ref: 14037

SCREEN

€ 62.00

16160

161601116
ref: 16160

BODY,THERMOSTAT,UPP

€ 134.00

16160A

161601117
ref: 16160A

BODY,THERMOSTAT

€ 59.00

21176

211761054
ref: 21176

SENSOR,WATER

€ 49.50

27010

270101180
ref: 27010

SWITCH,FAN

€ 104.50

32102

321021243
ref: 32102

PIPE,COOLING

€ 83.50

32102A

321021259
ref: 32102A

PIPE,COOLING

€ 70.50

32102B

321021260
ref: 32102B

PIPE,COOLING

€ 56.50

39060

390601073
ref: 39060

RADIATOR

€ 656.00

39062

390621197
ref: 39062

HOSE-COOLING

€ 17.00

39062A

390621198
ref: 39062A

HOSE-COOLING,HEAD-THE

€ 27.00

39062B

390621201
ref: 39062B

HOSE-COOLING,CAP-RADI

€ 13.50

39062C

390621203
ref: 39062C

HOSE-COOLING,CAP-RESE

€ 17.50

39062D

390621219
ref: 39062D

HOSE-COOLING

€ 17.50

39062E

390621270
ref: 39062E

HOSE-COOLING,RADIATOR

€ 24.00

43056

43056003
ref: 43056

BREATHER-BRAKE

€ 16.50

43078

430781081
ref: 43078

RESERVOIR

€ 32.50

49044

490441059
ref: 49044

PUMP-WATER

€ 191.00

49054

490541051
ref: 49054

THERMOSTAT

€ 44.50

49085

490851054
ref: 49085

CAP-ASSY-PRESSURE

€ 39.50

53044

530441180
ref: 53044

TRIM

€ 15.00

59502

595021068
ref: 59502

FAN-ASSY

€ 463.00

92002

920021392
ref: 92002

BOLT,6X22

€ 3.00

92009

920091181
ref: 92009

SCREW,6X18

€ 2.00

92009A

920091261
ref: 92009A

SCREW,TAPPING,6MM

€ 2.00

92015

920151094
ref: 92015

NUT,MUFFLER

€ 5.50

92015A

920151487
ref: 92015A

NUT

€ 3.00

92015B

920151758
ref: 92015B

NUT

€ 4.50

92022

92022304
ref: 92022

WASHER,PLAIN

€ 2.50

92027

920271134
ref: 92027

COLLAR,FUEL TANK FITT

€ 7.00

92037

92037147
ref: 92037

CLAMP,CHAIN OILER

€ 4.50

92037A

920371985
ref: 92037A

CLAMP,COOLING HOSE

€ 7.50

92055

920551001
ref: 92055

RING-O

€ 7.00

92055A

92055112
ref: 92055A

O RING, 53.5 M/M

€ 4.00

120

120S0610
ref: 120

BOLT-SOCKET

€ 1.50

130

130G0612
ref: 130

BOLT,FLANGE,6X12

€ 0.50

130A

130J0612
ref: 130A

BOLT-FLANGED,6X12,BLA

€ 1.50

130B

130J0616
ref: 130B

BOLT-FLANGED,6X16

€ 1.50

132

132W0610
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

132A

132W0630
ref: 132A

BOLT-FLANGED-SMALL

€ 2.50

132B

132W0650
ref: 132B

BOLT-FLANGED-SMALL

€ 3.00

132C

132W0825
ref: 132C

BOLT-FLANGED-SMALL

€ 2.50

220

220D0514
ref: 220

SCREW-PAN-CROS

€ 2.50

671

671B2525
ref: 671

O RING,25MM

€ 3.00

92055B

920551271
ref: 92055B

RING-O,WATER PUMP

€ 7.00

92055C

920551282
ref: 92055C

RING-O

€ 3.00

92055D

920551378
ref: 92055D

RING-O,WATER PUMP

€ 5.00

92150

921501187
ref: 92150

BOLT,6X16

€ 2.50

92160

921601007
ref: 92160

DAMPER

€ 3.50
