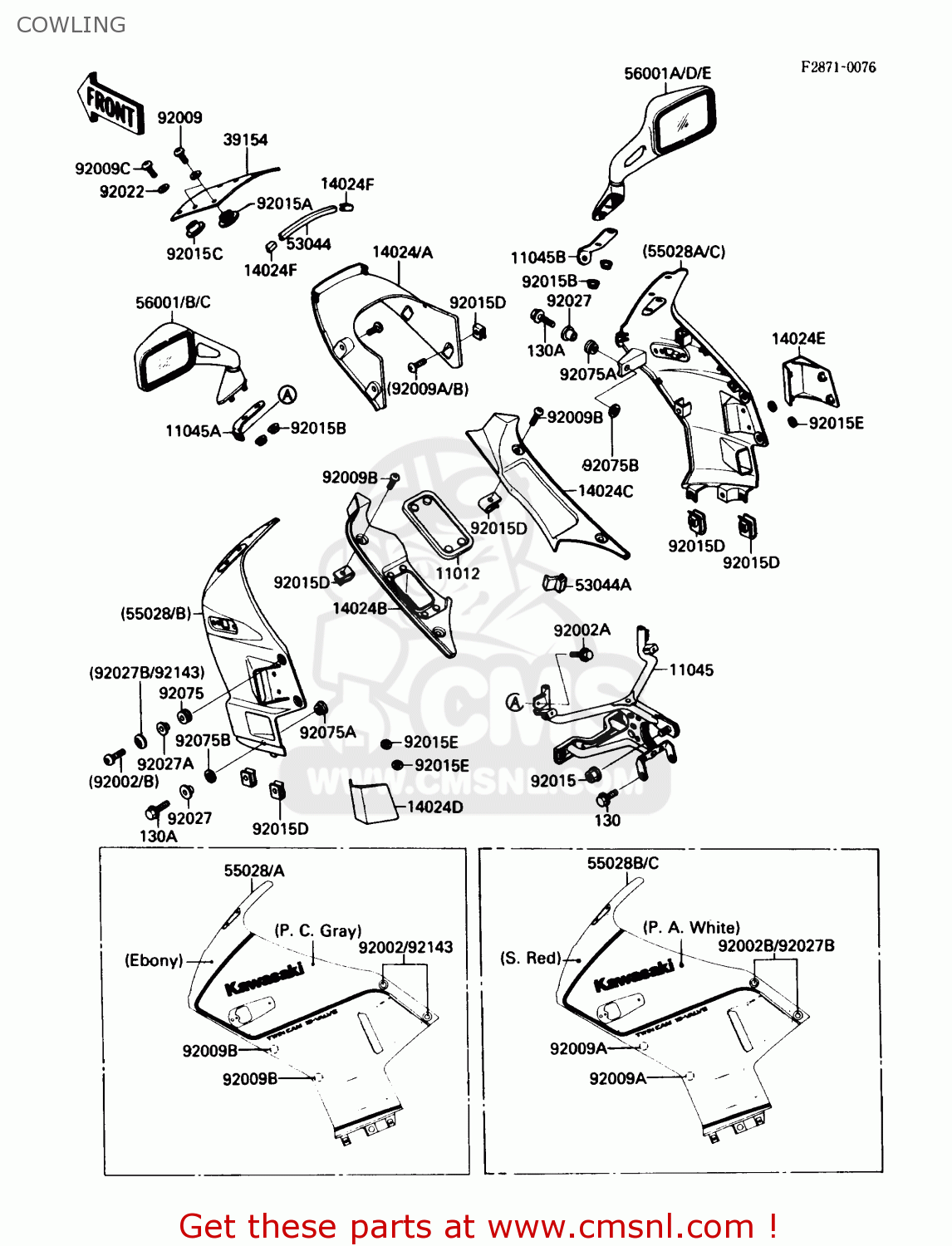

COWLING

ref

part #

description

quantity

11012

110121570
ref: 11012

CAP,INNER COWLING COV

€ 13.50

11045

110451270
ref: 11045

BRACKET,COWLING STAY

€ 189.00

11045A

110451412
ref: 11045A

BRACKET,MIRROR,LH

€ 4.50

11045B

110451413
ref: 11045B

BRACKET,MIRROR,RH

€ 4.50

14024

140241337H1
ref: 14024

COVER,HEAD LAMP,S.RED

€ 157.00

14024A

140241337H8
ref: 14024A

COVER,HEAD LAMP,EBONY

€ 161.00

14024B

140241380
ref: 14024B

COVER,INNER COWLING,L

€ 22.50

14024C

140241381
ref: 14024C

COVER,INNER COWLING,R

€ 17.00

14024D

140241417
ref: 14024D

COVER,HEAT GUARD,LH

€ 9.00

14024E

140241418
ref: 14024E

COVER,HEAT GUARD,RH

€ 10.00

14024F

140251756
ref: 14024F

COVER,TRIM END

€ 4.50

39154

391541073
ref: 39154

WHINDSHIELD

€ 251.00

53044

530441177
ref: 53044

TRIM,WINDSHIELD,L=345

€ 7.00

53044A

530441195
ref: 53044A

TRIM,INNER COWLING CO

€ 2.00

55028

550285276T4
ref: 55028

COWLING,UPP,LH,EBONY/

€ 478.50

55028A

550285277T4
ref: 55028A

COWLING,UPP,RH,EBONY/

€ 478.50

55028B

550285278W2
ref: 55028B

COWLING,UPP,LH,P.A.WH

€ 504.50

55028C

550285279W2
ref: 55028C

COWLING,UPP,RH,P.A.WH

€ 504.50

56001

560011287
ref: 56001
CN

MIRROR-ASSY,LH,EBONY

€ 101.00

56001A

560011288
ref: 56001A
CN

MIRROR-ASSY,RH

€ 94.50

56001B

560011325
ref: 56001B
CAUS

MIRROR-ASSY,LH

€ 101.00

56001C

560011325
ref: 56001C
CN

MIRROR-ASSY,LH

€ 101.00

130

130J0610
ref: 130

BOLT-FLANGED

€ 1.50

130A

130J0625
ref: 130A

BOLT-FLANGED,6X25

€ 2.00

56001D

560011326
ref: 56001D
CAUS

MIRROR-ASSY,RH

€ 94.50

56001E

560011326
ref: 56001E
CN

MIRROR-ASSY,RH

€ 94.50

92002

920021514
ref: 92002

BOLT,SOCKET,6X18,BLAC

€ 4.00

92002A

920021884
ref: 92002A

BOLT,6X12

€ 2.50

92002B

920021889
ref: 92002B

BOLT

€ 4.00

92009

920091335
ref: 92009

SCREW,5X10

€ 2.50

92009A

920091366
ref: 92009A

SCREW,5X14

€ 2.50

92009B

920091383
ref: 92009B

SCREW,5X14

€ 2.50

92009C

920091453
ref: 92009C

SCREW,5X20

€ 2.50

92015

920151183
ref: 92015

NUT,FLANGED,8MM,BLACK

€ 1.00

92015A

920151343
ref: 92015A

NUT,5MM,COWLING

€ 3.00

92015B

920151367
ref: 92015B

NUT,FLANGED,6MM

€ 0.50

92015C

920151640
ref: 92015C

NUT

€ 5.00

92015D

920151710
ref: 92015D

NUT

€ 4.00

92015E

92018004
ref: 92015E

NUT,SPEED,5MM

€ 2.50

92022

920221521
ref: 92022

WASHER,NYLON,5.3X11.5

€ 2.50

92027

920271450
ref: 92027

COLLAR,L=13.1,BLACK

€ 4.00

92027A

920271795
ref: 92027A

COLLAR,L=9.1,WHITE

€ 4.00

92027B

920271886
ref: 92027B

COLLAR,L=6.5,WHITE

€ 8.00

92075

920751634
ref: 92075

DAMPER

€ 3.00

92075A

92075174
ref: 92075A

DAMPER,MALE

€ 3.00

92075B

92075175
ref: 92075B

DAMPER,FEMALE

€ 2.50

92143

921431086
ref: 92143

COLLAR,L=6.5,BLACK

€ 9.00

all assemblies
